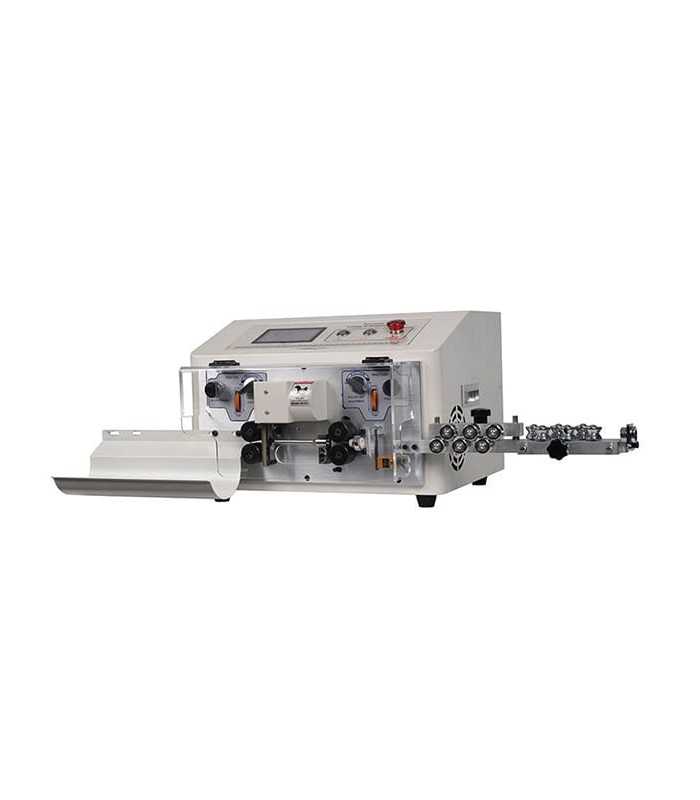

Automatic machine for cutting and stripping single core cables

The RBEW03B+ is an automatic machine designed for precise cutting and stripping of electrical cables, ideal for repetitive processing where speed, precision and continuous operation are required.
Thanks to its fully electric structure, the machine does not require compressed air, simplifying installation and making it suitable for production departments, wiring laboratories and industrial workstations.
It integrates cable cutting and stripping on both ends into a single solution, helping optimize the production process and reduce manual intervention.
It is particularly suitable for companies producing electrical wiring, electrical panels, automotive wiring, industrial wiring and cable processing for electronic equipment.
The machine is suitable for processing cables with a cross-section from 0.10 to 10.00 mm², approximately corresponding to AWG 28 - 8.
The LCD control interface allows precise setting of the main processing parameters, such as cutting length, stripping length on side I and side II, ensuring good repeatability of the result.
The cutting capacity up to 99,999.99 mm allows both short cable pieces and long cables to be processed, adapting to different production requirements.
The 4-roller transport system ensures stable cable feeding, helping maintain precision and continuity during the working cycle.
Thanks to a productivity of 3000 to 6000 pieces/hour, the machine increases efficiency compared to manual or semi-automatic processing.
The noise level below 55 dB(A) makes the machine suitable even for work environments where low operating noise is important.
The compact structure makes it easy to integrate the machine into production lines, assembly laboratories and workstations dedicated to cable processing.

WORKING PRINCIPLE

- The cable is inserted into the feeding system
- The machine feeds the cable through the 4-roller transport system
- The operator sets the cutting length and stripping lengths via the LCD display
- The system cuts the cable to the programmed size
- The blades strip the front and rear ends
- The processed cable is released ready for the next assembly stages

MAIN ADVANTAGES

- Automatic cutting and stripping process
- Fully electric operation, without compressed air
- Suitable for cables from 0.10 to 10.00 mm²
- Compatible with AWG 28 - 8 sections
- 4-roller transport system for stable feeding
- Cutting length up to 99,999.99 mm
- Adjustable stripping length on both sides
- High productivity up to 6000 pieces/hour
- Reduced processing time compared to manual operations
- Good process repeatability
- Low noise level below 55 dB(A)
- Compact structure suitable for production workstations

MAIN APPLICATIONS

- Electrical wiring production
- Automotive wiring
- Industrial wiring
- Electrical panels and automation
- Wiring harness production
- Cable preparation for crimping
- Cable preparation for tinning
- Electronic component assembly
- Wiring kit production
- Prototyping laboratories and electrical maintenance

TECHNICAL FEATURES

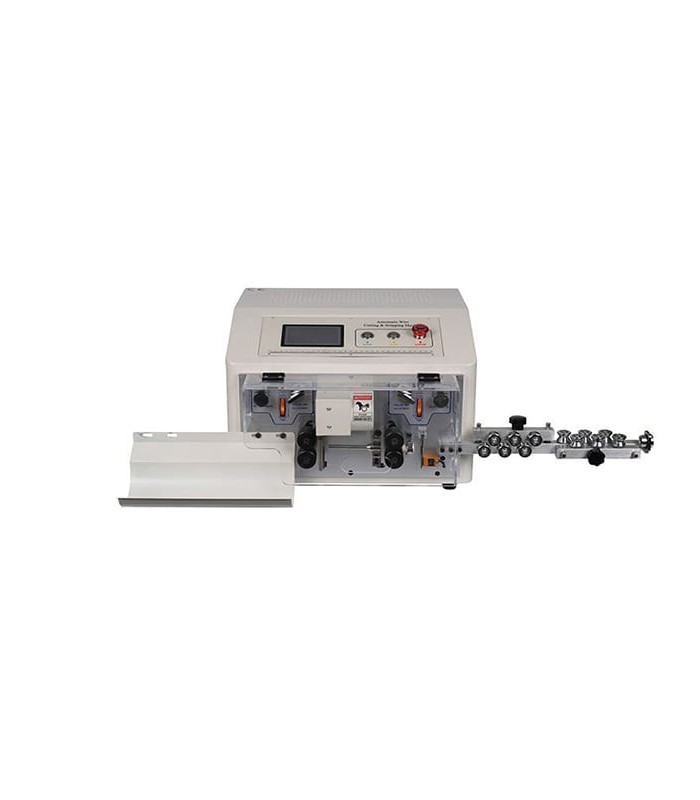

Model: RBEW03B+
Type: automatic cable cutting and stripping machine
Cable cross-section: 0.10 - 10.00 mm²
Cable section AWG: AWG 28 - 8
Cutting length: 1 - 99,999.99 mm
Cutting tolerance: 0.002 × L
Stripping length side I: 0 - 25 mm
Stripping length side II: 0 - 60 mm
Maximum cable guide tube diameter: 8 mm
Transport system: 4 transport rollers
Productivity: 3000 - 6000 pcs/hour
Power supply: AC 110V / 220V, 50 - 60 Hz
Power: 450W
Noise level: below 55 dB(A)
Weight: 32 kg
Machine dimensions: 465 × 465 × 350 mm
