Automatic machine for cutting and inserting braided sleeves (6 - 25 mm)

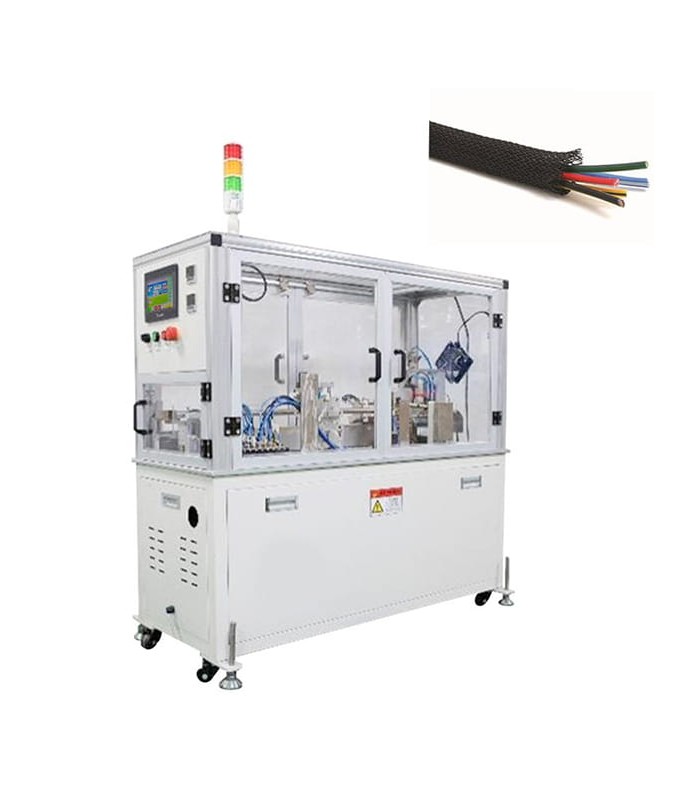

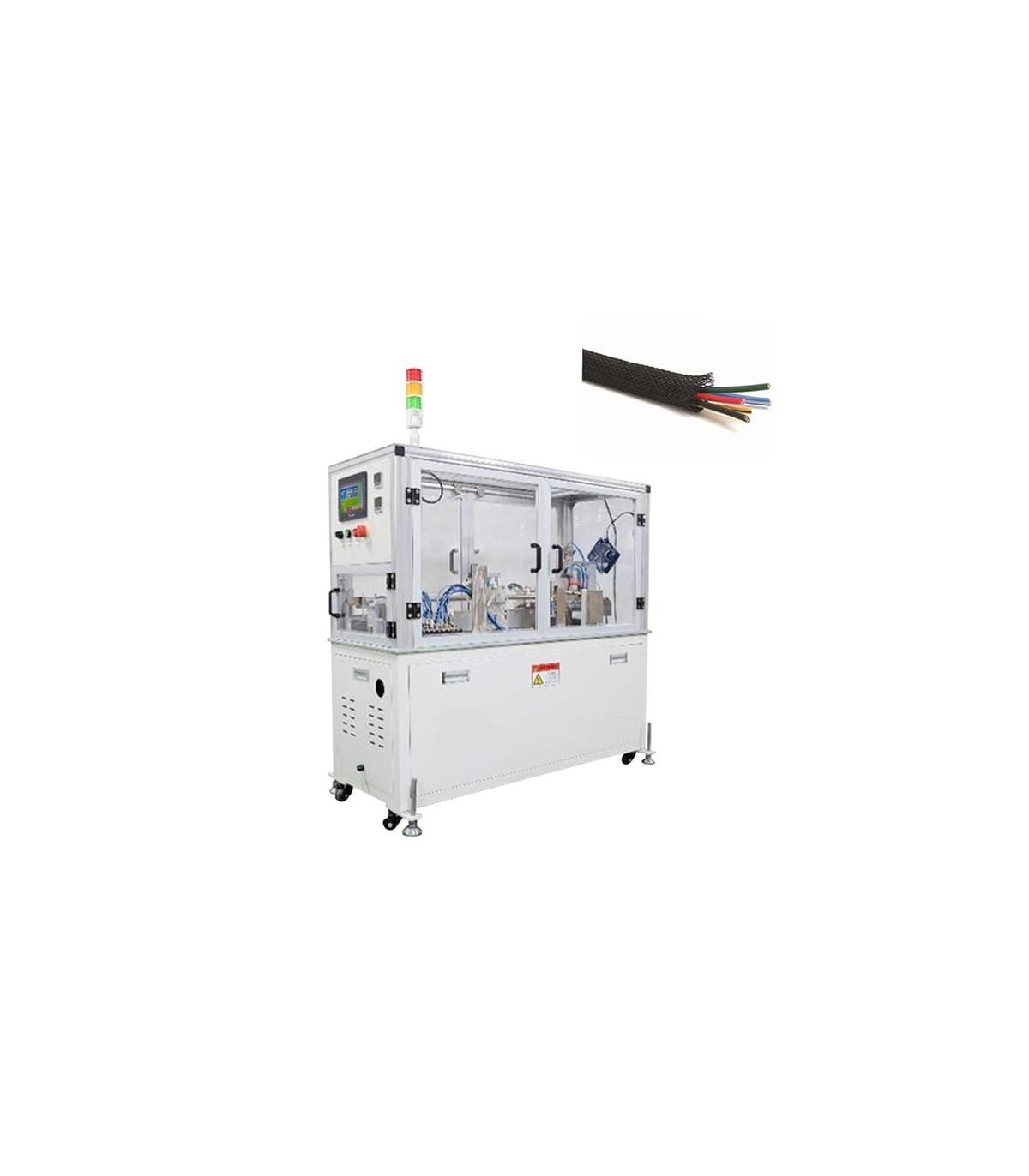

The RBEW1130 is a professional machine designed for automatic cutting and insertion of nylon braided sleeves, used for the protection, organization and finishing of electrical cables and wiring harnesses.
Thanks to the automatic processing system, it allows precise cuts and stable sleeve insertion, improving the quality of the finished wiring harness and reducing manual intervention.
The machine is particularly suitable for industrial applications where precision, productivity and continuous operation are required in the preparation of electrical wiring harnesses, automotive systems, industrial electronics and professional installations.
The high-precision cutting system, with micro-adjustable photoelectric control, allows clean and accurate cuts, with a tolerance of ± 3 mm.
The cutting length is programmable from 100 to 3500 mm, with customization available on request, making the machine suitable for different production needs and different braided sleeve formats.

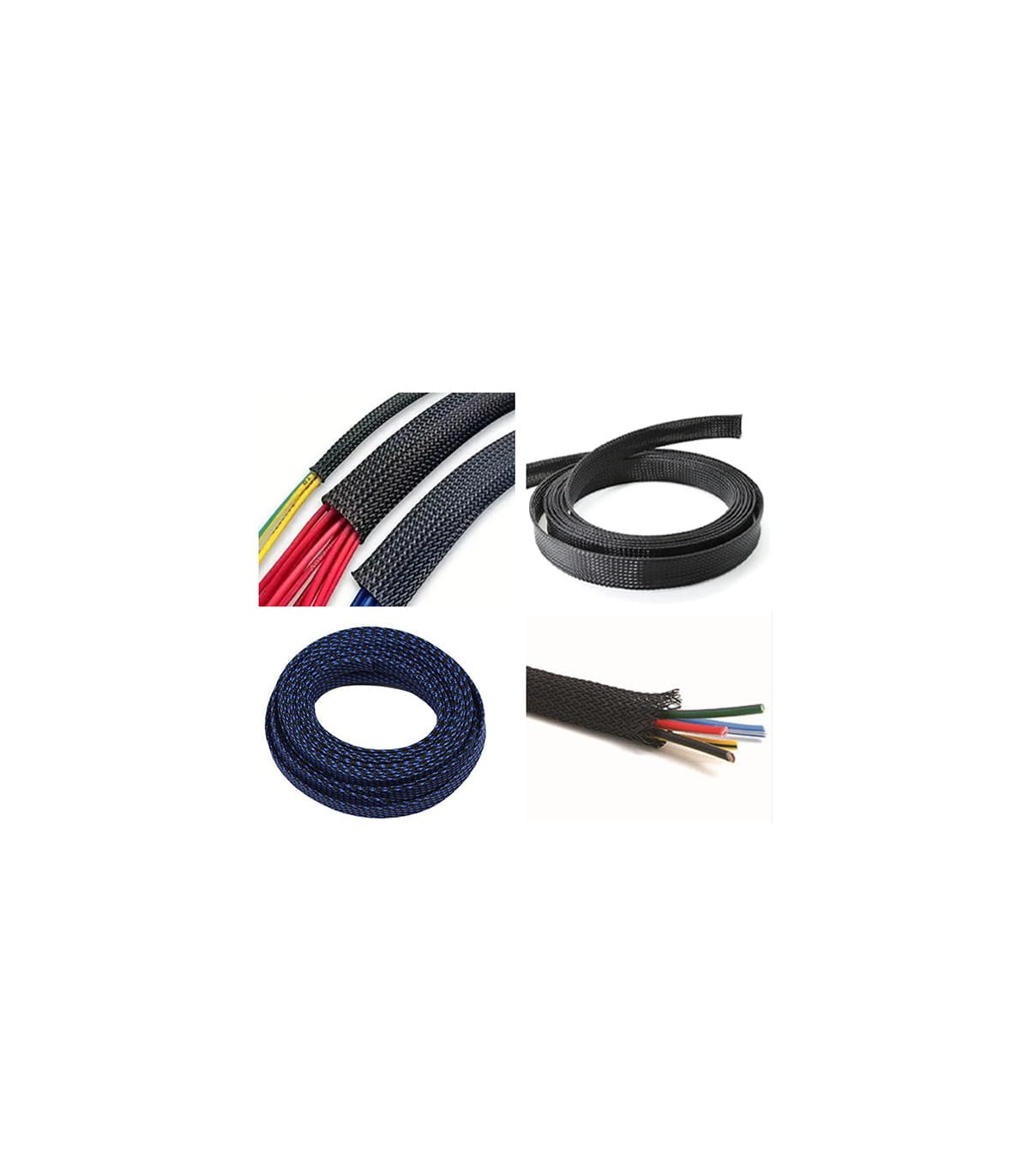

The machine supports sleeves with diameter from 6 to 25 mm, ensuring versatility in the processing of wiring harnesses of various sizes.
The PLC control allows simple and precise management of the working parameters, facilitating production changes and ensuring consistent results even in repetitive processing.
The productivity of at least 600 pieces/hour, variable according to the manual loading speed, makes the RBEW1130 suitable for production departments, wiring workshops, automotive sector and high-efficiency professional applications.
The robust structure and industrial components ensure stability, reliability and durability over time, even in intensive use environments.

OPERATING PRINCIPLE

- The braided sleeve is loaded into the machine
- The operator sets the working parameters via PLC
- The photoelectric control system detects and manages the cutting process
- The machine cuts to the programmed length
- The sleeve is inserted onto the cable or wiring harness in an orderly way
- The process ensures stable, precise and repeatable processing
- The wiring harness is ready for the next assembly or quality control stages

MAIN ADVANTAGES

- Ideal for automatic cutting and insertion of braided sleeves
- Suitable for nylon braided sleeves
- Workable sleeve diameter from 6 to 25 mm
- Programmable cutting length from 100 to 3500 mm
- Cutting length customization available
- Precise cutting with ± 3 mm tolerance
- PLC control for simple parameter management
- Micro-adjustable photoelectric system for greater precision
- Fast and stable sleeve insertion
- Productivity of at least 600 pieces/hour
- Improved cable organization and protection
- Robust structure for professional and industrial use
- Suitable for series production

MAIN APPLICATIONS

- Cutting of nylon braided sleeves
- Insertion of protective sleeves on cables
- Protection and organization of electrical wiring harnesses
- Wiring harness production
- Automotive sector
- Industrial wiring
- Industrial electronics
- Electrical panels and professional installations
- Assembly of cables and electrical components
- Wiring workshops and production departments
- Applications where mechanical cable protection is required

TECHNICAL FEATURES

Model: RBEW1130

Machine type: automatic machine for cutting and inserting braided sleeves

Applicable material: nylon braided sleeves

Sleeve diameter: 6 - 25 mm

Cutting length: 100 - 3500 mm, customizable

Cutting tolerance: ± 3 mm

Production capacity: 600 pieces/hour

Control system: PLC

Cutting system: micro-adjustable photoelectric control

Voltage: 220 V, 50 Hz

Power consumption: 400 W

Operating temperature: from -5 °C to +40 °C

Relative humidity: 40 - 90% RH

Air pressure: 0.4 - 0.6 MPa

Weight: 240 kg

Dimensions: 500 x 1350 x 2400 mm

Application: cutting and insertion of braided sleeves on cables and wiring harnesses

Operation: automatic with PLC control

Use: professional and industrial
