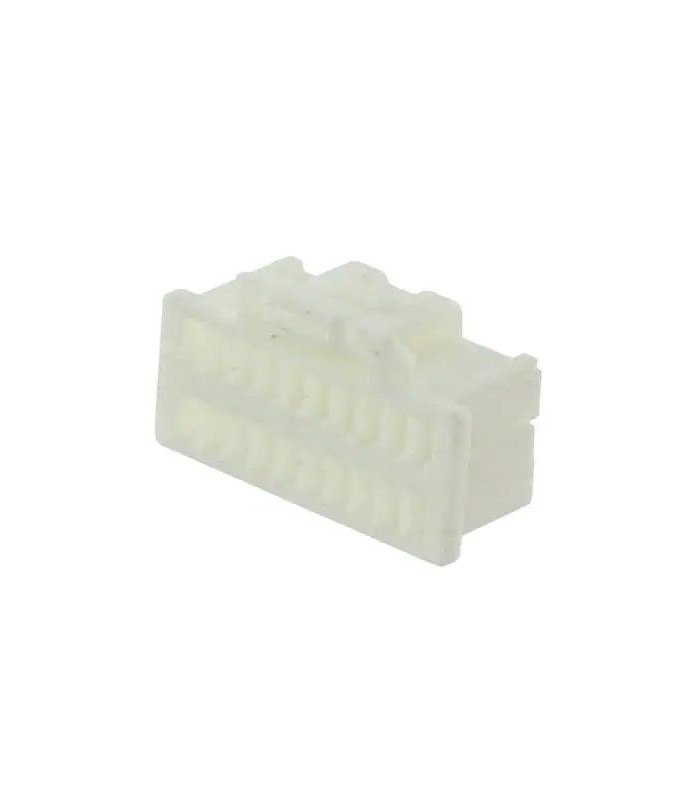

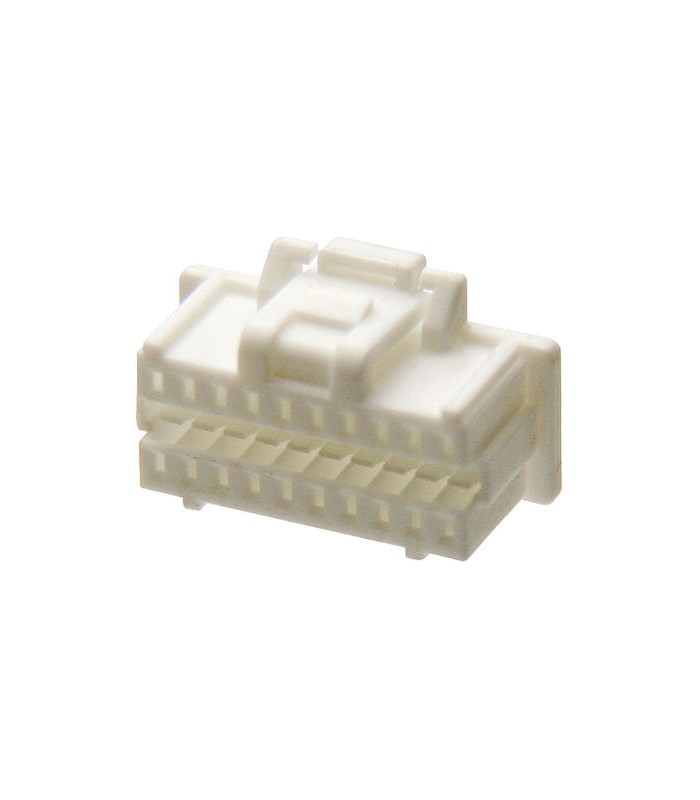

Connector Pico Clasp Male 10x2 Way

Errebi code: 30012
Producer code: 501189-2010
Producer: Molex

Read moreShow less

€2.28 (tax excl.)

€2.78 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
5	€2.78	€0.00
10	€2.51	€2.74
25	€2.23	€13.87
50	€2.09	€34.77
100	€1.81	€97.63
250	€1.53	€312.58
500	€1.39	€695.40
1000	€1.25	€1,531.27

Last items in stock 20 Items

The minimum purchase order quantity for the product is 5.

Condition

New

Reference:

RBCTPCPF10X2VM

Brand:

Molex

Add to wishlist

Description

Category: Crimp Housings
Series: 501189
Application: Signal, Wire-to-Board
Product Name: Pico-Clasp
Breakaway: No
Circuits (maximum): 20
Color - Resin: White
Flammability : 94V-0
Gender: Receptacle
Glow-Wire Capable: No
Keying to Mating Part: None
Lock to Mating Part: Yes
Material - Resin: Nylon
Number of Rows: 2
Packaging Type: Bag
Panel Mount: No
Pitch - Mating Interface: 1.00mm
Pitch - Termination Interface: 1.00mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range - Operating: -40° to +105°C
