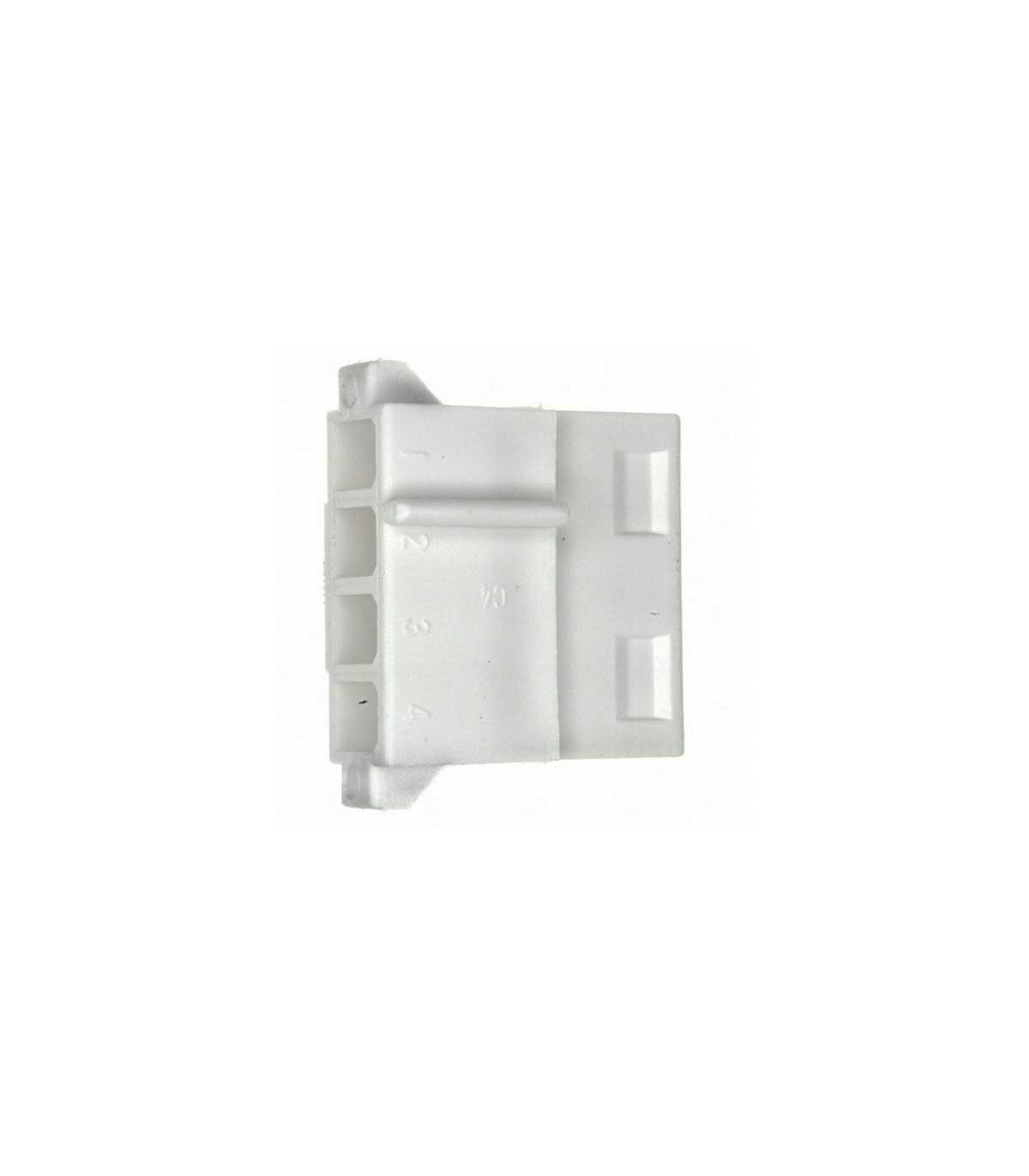

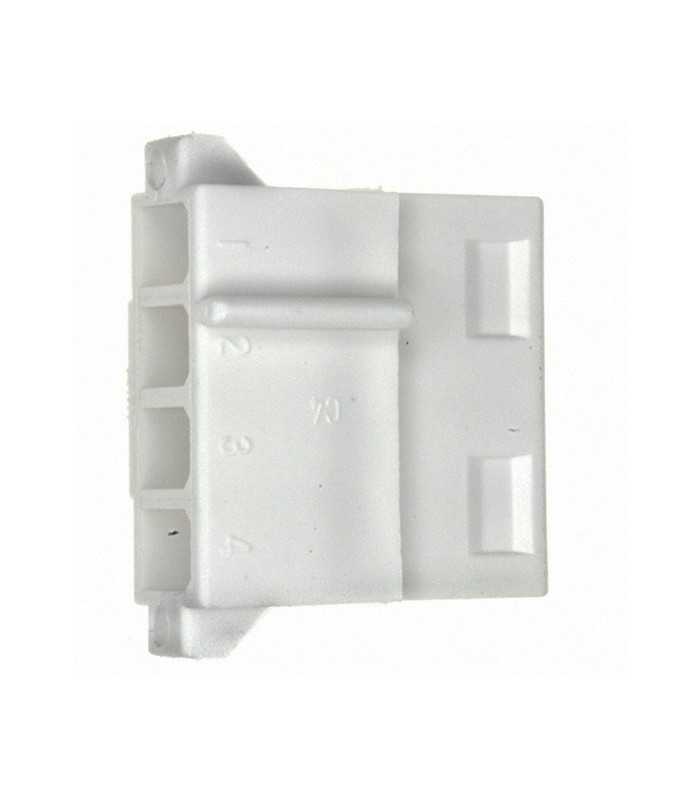

Connectors Commercial MATE-N-LOK Male 4 Way
Errebi code: 27778
Producer code: 770827-1 Cross Reference
Producer:TE/Connectivity Cross Reference
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: 770827-1 Cross Reference
Producer:TE/Connectivity Cross Reference
Please note: the item is a reproduction of the original, please contact us for more information.
€0.18
(tax excl.)
€0.22
(tax incl.)
Condition
New
Reference:
RBCTCMNLPF4V
Brand:
Add to wishlist
Product Type Features
Product Type: Housing
Housing Type: Plug
Connector System: Wire-to-Wire
Sealable: No
Connector & Contact Terminates To: Wire & Cable
Contact Type: Socket
Configuration Features
Number of Positions: 4
Number of Rows: 1
Electrical Characteristics
Operating Voltage(VAC): 250
Contact Features
Contact Retention: Without
Contact Layout: Inline
Termination Features
Termination Method to Wire & Cable: Crimp
Mechanical Attachment
Panel Mount Feature: Without
Connector Mounting Type: Cable Mount
Housing Features
Centerline (Pitch): 5.08 mm [0.2 in]
UL Flammability Rating: UL 94V-2
Housing Color: White
Housing Material: Nylon
Dimensions
Width(in): 0.245
Height(in): 0.85
Length(in): 0.822
Usage Conditions
Operating Temperature Range: -55 – 105°C [-67 – 221°F]
Sealed Condition: Not Sealed
Operation/Application
Circuit Application: Power & Signal
Identification Marking
Circuit Identification Feature: With
Other
For Use With: Pin (Cap) Housing
Read moreShow less
Product Type: Housing
Housing Type: Plug
Connector System: Wire-to-Wire
Sealable: No
Connector & Contact Terminates To: Wire & Cable
Contact Type: Socket
Configuration Features
Number of Positions: 4
Number of Rows: 1
Electrical Characteristics
Operating Voltage(VAC): 250
Contact Features
Contact Retention: Without
Contact Layout: Inline
Termination Features
Termination Method to Wire & Cable: Crimp
Mechanical Attachment
Panel Mount Feature: Without
Connector Mounting Type: Cable Mount
Housing Features
Centerline (Pitch): 5.08 mm [0.2 in]
UL Flammability Rating: UL 94V-2
Housing Color: White
Housing Material: Nylon
Dimensions
Width(in): 0.245
Height(in): 0.85
Length(in): 0.822
Usage Conditions
Operating Temperature Range: -55 – 105°C [-67 – 221°F]
Sealed Condition: Not Sealed
Operation/Application
Circuit Application: Power & Signal
Identification Marking
Circuit Identification Feature: With
Other
For Use With: Pin (Cap) Housing
RBCTCMNLPF4V
Data sheet
- Product type
- Connector body
- Serie
- Commercial MATE-N-LOK
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -55°C a +105°C
- Flammability
- 94V-2
- Voltage
- 250V
- Kind
- Male
- Number of poles
- 4
- Number of rows
- 1
- Pitch
- 5.08 mm
- Orientation
- 180°
- Minimum order quantity
- 10
- Unit Type
- pieces
