128 connections tester for electrical wiring with integrated display

The UC6601 Harness Test System is a low voltage test system and can be used to locate wire shorts, reverses and open connections, with the ability to test resistors, capacitors, diodes and LEDs within the harness.
It is an ideal wire harness test system for automotive, marine, railway, white goods, etc.

Characteristics:
1. View the test network on the large screen
2. Automatic learning, supporting various types of wiring
3. Spot test single-ended and sequential cabling
4. Swing test
5. Test statistics and data storage, shut down to save
6. Support PC communication
7. Start and automatically recover the test file
8. Various test modes

Technical specifications:
Test point: Up to 640 test points can be supported (depending on model)
Wiring type: general wiring, sequential wiring, single ended wiring
Test modes: single, multiple, continuous, swing
Oscillation time: 0-99.9 seconds
Trial time: 1-99
Empty point detection: lockable
Test voltage: 5V
Test diode: reverse, multiple connection, test not connected
Alarm volume: adjustable
Memory: 100 groups of internal memory, unlimited internal expansion

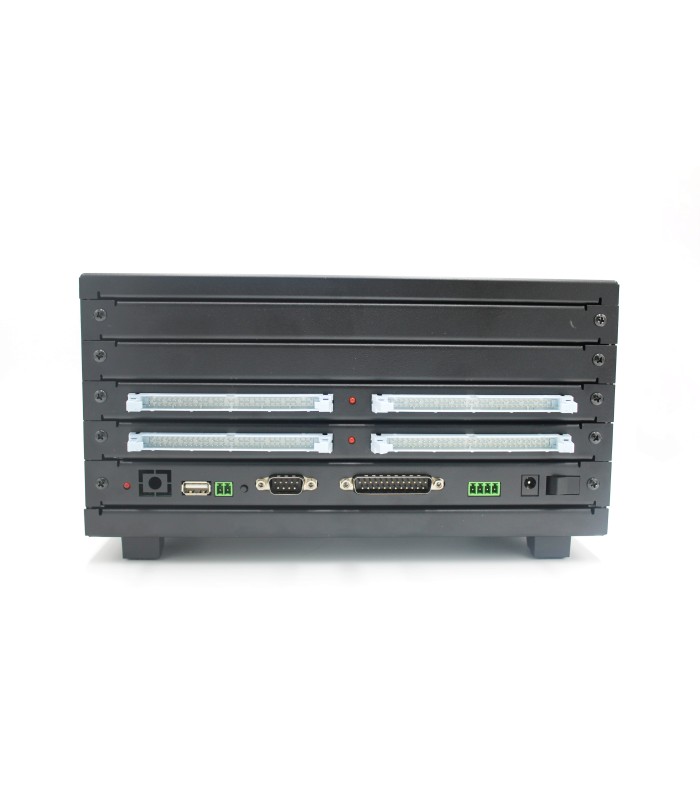

Interface: RS-232C, handle, USB interface
