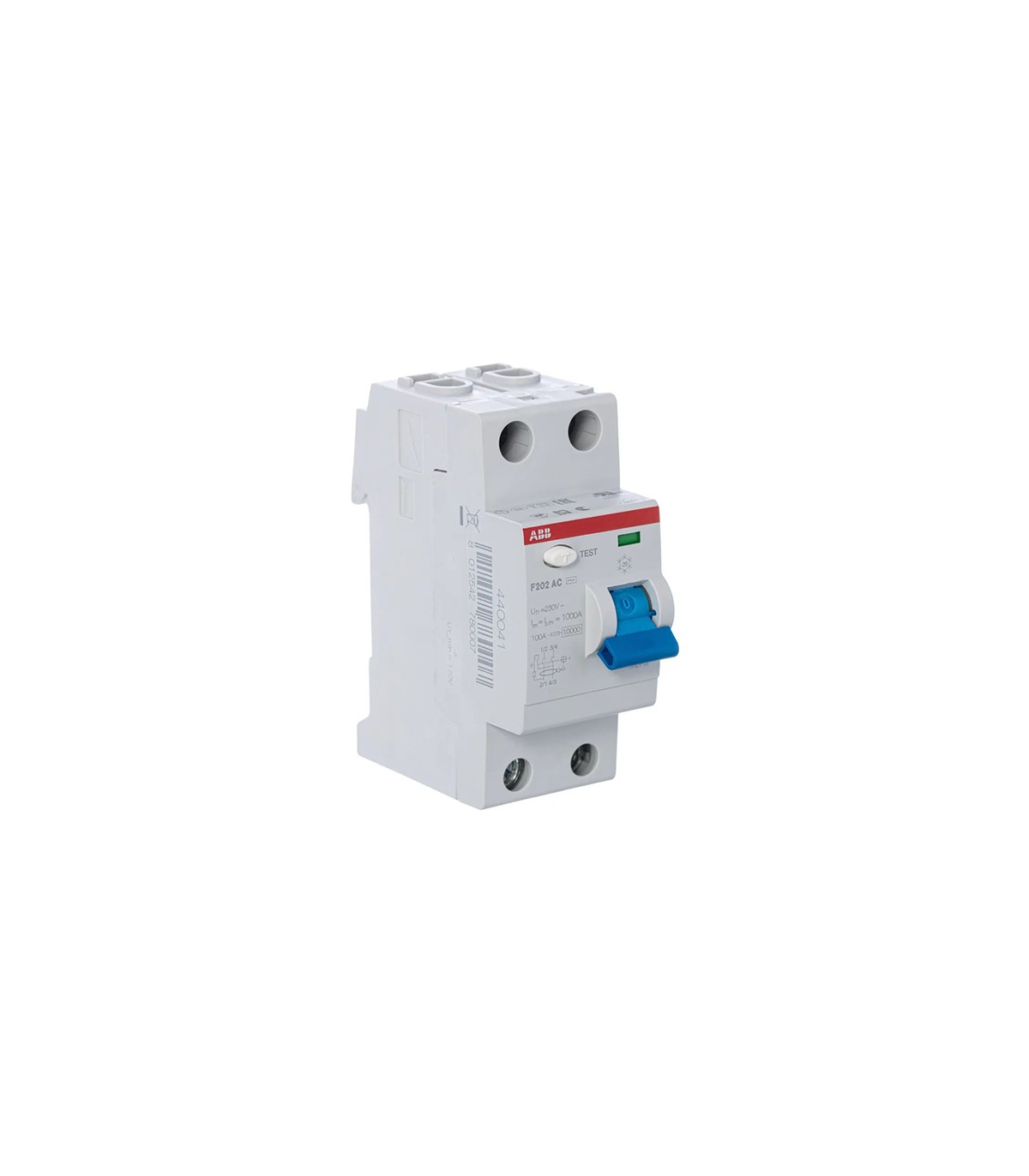

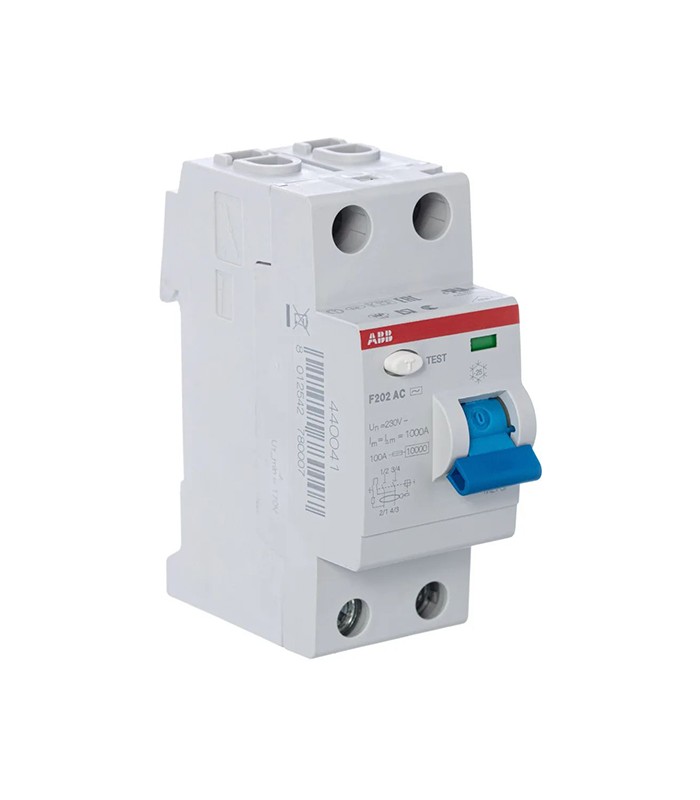

Residual Current Devices Pure F202 AC-40/0,1 2P 40A 100mA (F427804)

General Information
Extended Product Type: F202 AC-40/0,1
Product ID: 2CSF202001R2400
EAN: 8012542780403
Catalog Description: F202 AC-40/0,1 Residual Current Circuit Breaker
Long Description: The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Categories
Products » Low Voltage Products and Systems » Modular DIN Rail Products » Residual Current Devices RCDs » Residual Current Devices RCDs

Dimensions
Product Net Width: 0.035 m
Product Net Height: 0.085 m
Product Net Depth: 0.069 m
Product Net Weight: 0.200 kg

Container Information
Package Level 1 Width: 80 mm
Package Level 1 Height: 41 mm
Package Level 1 Length: 94 mm
Package Level 1 Gross Weight: 0.235 kg
Package Level 1 EAN: 8012542780403

Technical
Operating Characteristic: Instantaneous
Type of Residual Current: AC type
Rated Residual Current: 100 mA
Rated Current (In): 40 A
Number of Poles: 2
Power Loss: at Rated Operating Conditions per Pole 2.4 W
Rated Voltage (Ur): 230/400 V
