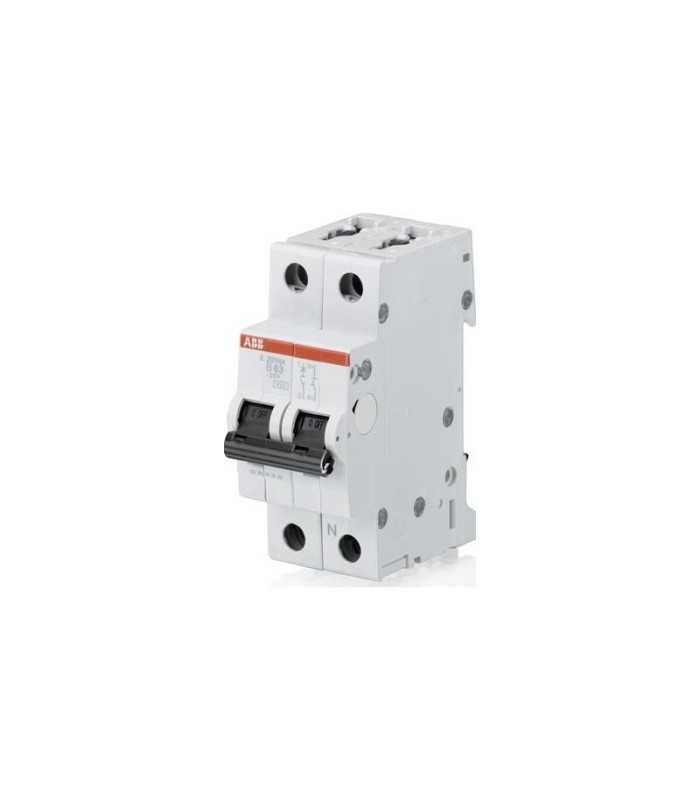

Circuit Breaker Switch S 201 Na L C10 1P+N 10A (S598378)

Technical
Standards: IEC/EN 60947-2 IEC/EN 60898-1
Number of Poles: 2
Tripping Characteristic: C
Rated Current (In): 10 A
Rated Operational Voltage: acc. to IEC60898-1 230 V AC
Power Loss: 4.2 W per Pole 2.1 W
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 500 V
Operational Voltage: Maximum (Incl. Tolerance) 253 V AC Minimum 12 V AC
Rated Frequency (f): 50 Hz - 60 Hz
Rated Short-Circuit Capacity (Icn): 4.5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics): 4.5 kA
