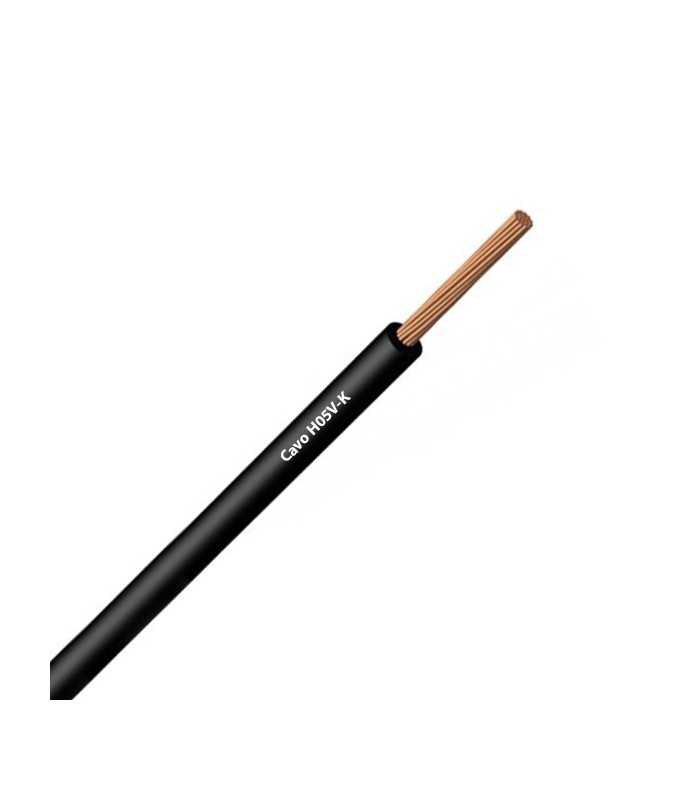

Cable Unipolar Wire H05V2-K sec. 0,75 mmq Black
ErreBi code: 47881
Price for meter
Read moreShow lessPrice for meter
€0.79
(tax excl.)
€0.96
(tax incl.)
Condition
New
Reference:
RBCV0.75H05-2NR
Brand:
Add to wishlist
Flexible single-core cable for internal wiring, for maximum conductor temperature of 90°C.
Conductor
Plain copper flexible wire, class 5
Insulation
PVC compound, TI3 quality
TECHNICAL CHARACTERISTICS
Nominal voltage Uo/U: 300/500 V
Maximum operating temperature: 90°C
Minimum operating temperature: -10°C
(without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm 2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For internal wiring and for fixed and protected installation inside lighting equipment and for applications involving functioning at high temperatures. Not to be used in contact with surfaces having a temperature higher than 85°C. Not suitable for fixed installations in distribution systems. (ref. CEI EN 50565-1 and CEI EN 50565-2)
Read moreShow less
Conductor
Plain copper flexible wire, class 5
Insulation
PVC compound, TI3 quality
TECHNICAL CHARACTERISTICS
Nominal voltage Uo/U: 300/500 V
Maximum operating temperature: 90°C
Minimum operating temperature: -10°C
(without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm 2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For internal wiring and for fixed and protected installation inside lighting equipment and for applications involving functioning at high temperatures. Not to be used in contact with surfaces having a temperature higher than 85°C. Not suitable for fixed installations in distribution systems. (ref. CEI EN 50565-1 and CEI EN 50565-2)
RBCV0.75H05-2NR
Data sheet
- Product type
- H05V-K Cable
- Color
- Black
- external diameter
- 2.30 mm
- Voltage
- 750V
- Operating temperature min.
- -10°C
- Operating temperature max.
- +70°C
- Insulation material
- PVC
- Conductor (Material)
- Electrolytic Copper
- Cable section mmq
- 0.75 mmq
- Number of strands
- 24
- Size of the strands
- 0.193 mm
- Shielding
- No
- Voltage test
- 2500V
- Flame resistance
- IEC 60332-1-2
- Type of employment
- Internal Wiring
- Resistance of the conductor
- <= 26.0 Ohm/Km
- Minimum order quantity
- 5
- Unit Type
- metres
