RBCV1.5H05SJKNR

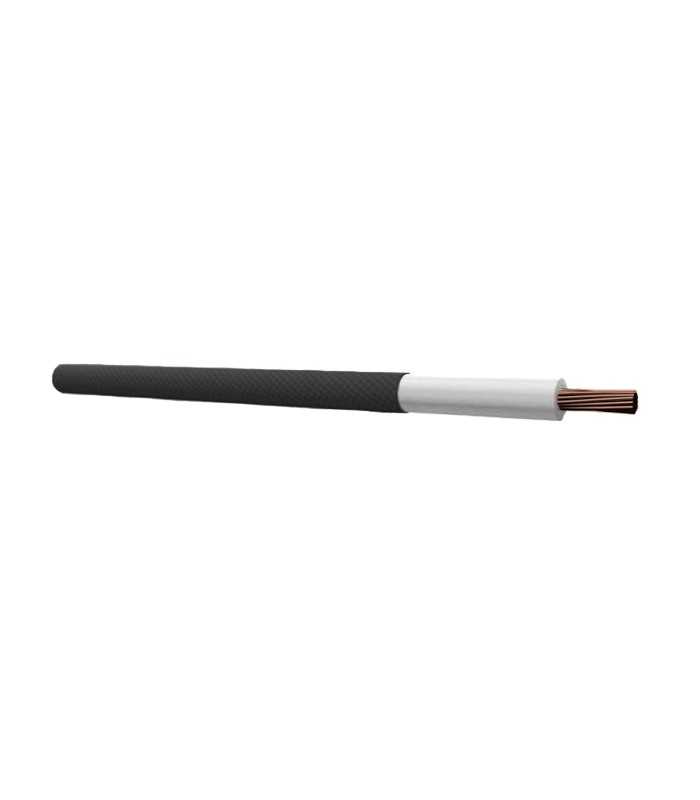

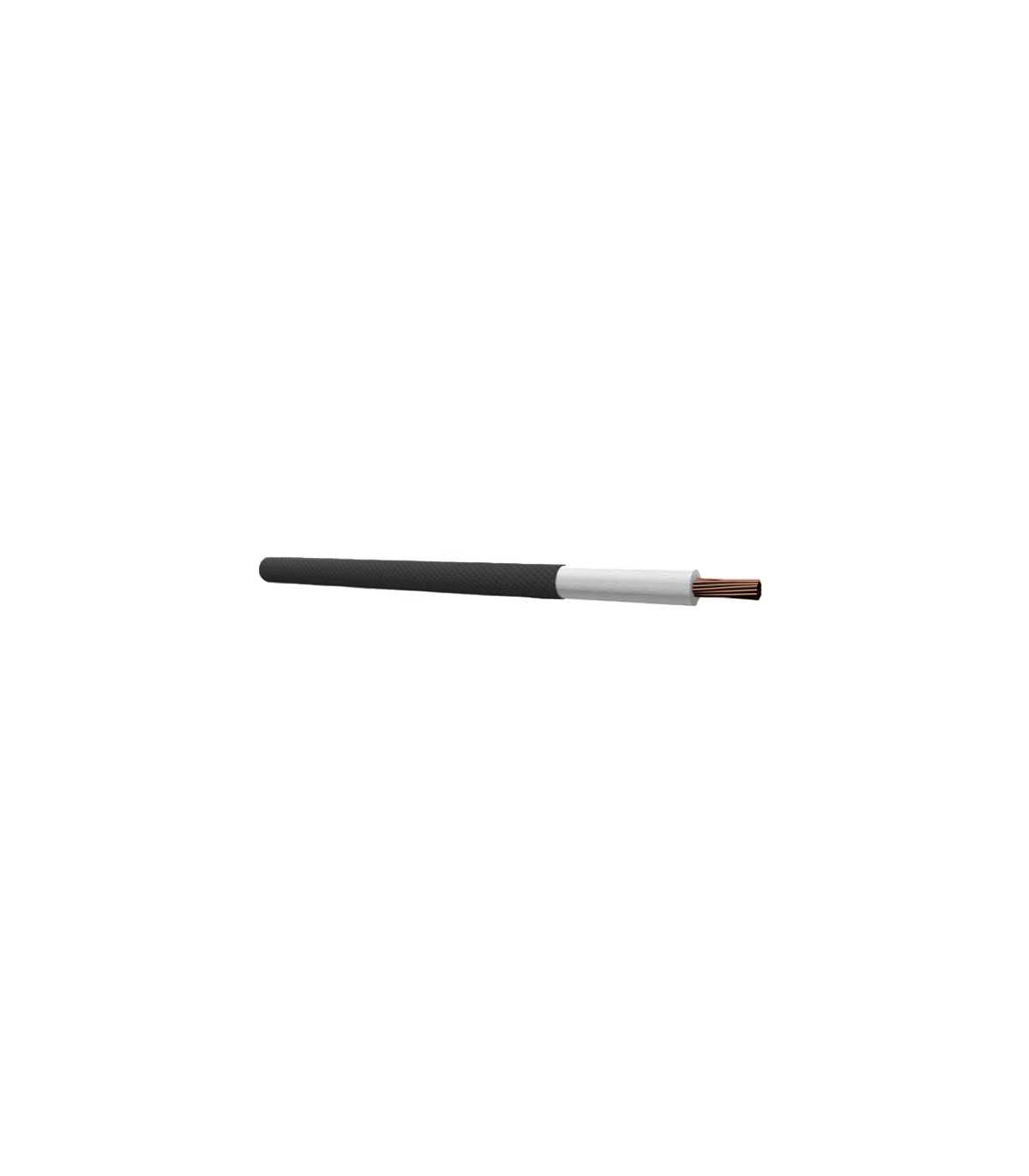

Cable Unipolar Wire H05SJ-K Sec. 1,50 mmq Black

ErreBi code: 30387
Price for meter
Read moreShow less
€1.24 (tax excl.)
€1.51 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €1.36 €1.51
26 €1.21 €7.87
50 €1.13 €18.91
100 €0.98 €52.95
250 €0.83 €170.19
500 €0.76 €378.20
1000 €0.68 €832.04
Available in stock 247 Items
The minimum purchase order quantity for the product is 2.
Condition
New
Reference:
RBCV1.5H05SJKNR
Brand:
ErreBi Group
Add to wishlist
Description
Single core flexible cable with fibreglass braid

Conductor: Bare or tinned copper
Insulation: Silicone EI 2
Braid: Fiberglass
Approvals: IMQ < HAR >

References
Italian: CEI 20-19 V1
European: CEI 20-29 Class 5

Technical specifications
Working temperature: -60 +180 °C
Peaks at: 210°C
Nominal voltage: 300-500 V
Voltage test: 2000 V

Properties
Good resistance to high and low temperature.
Weather proof
Hight safety standards.
High safety standards.

General use
Electric motors and transformers in H class, house hold appliances, urban lighting, warm connecting situations ecc...
Read moreShow less
Product Details
RBCV1.5H05SJKNR

Data sheet

Product type
Cable H05SJ-K
Color
Black
external diameter
3.40 mm
Voltage
500V
Operating temperature min.
-60°C
Operating temperature max.
+180°C
Insulation material
Silicon Rubber
Conductor (Material)
Red copper
Cable section mmq
1.50 mmq
Shielding
No
Voltage test
2000V
Type of employment
Internal Wiring
Resistance of the conductor
<= 13.3 Ohm/Km
Minimum order quantity
2
Unit Type
metres
