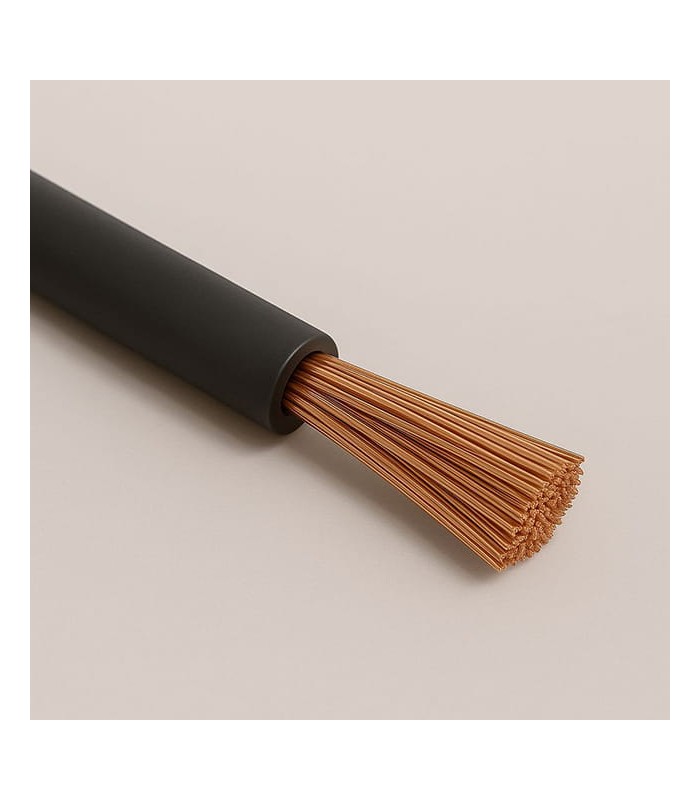

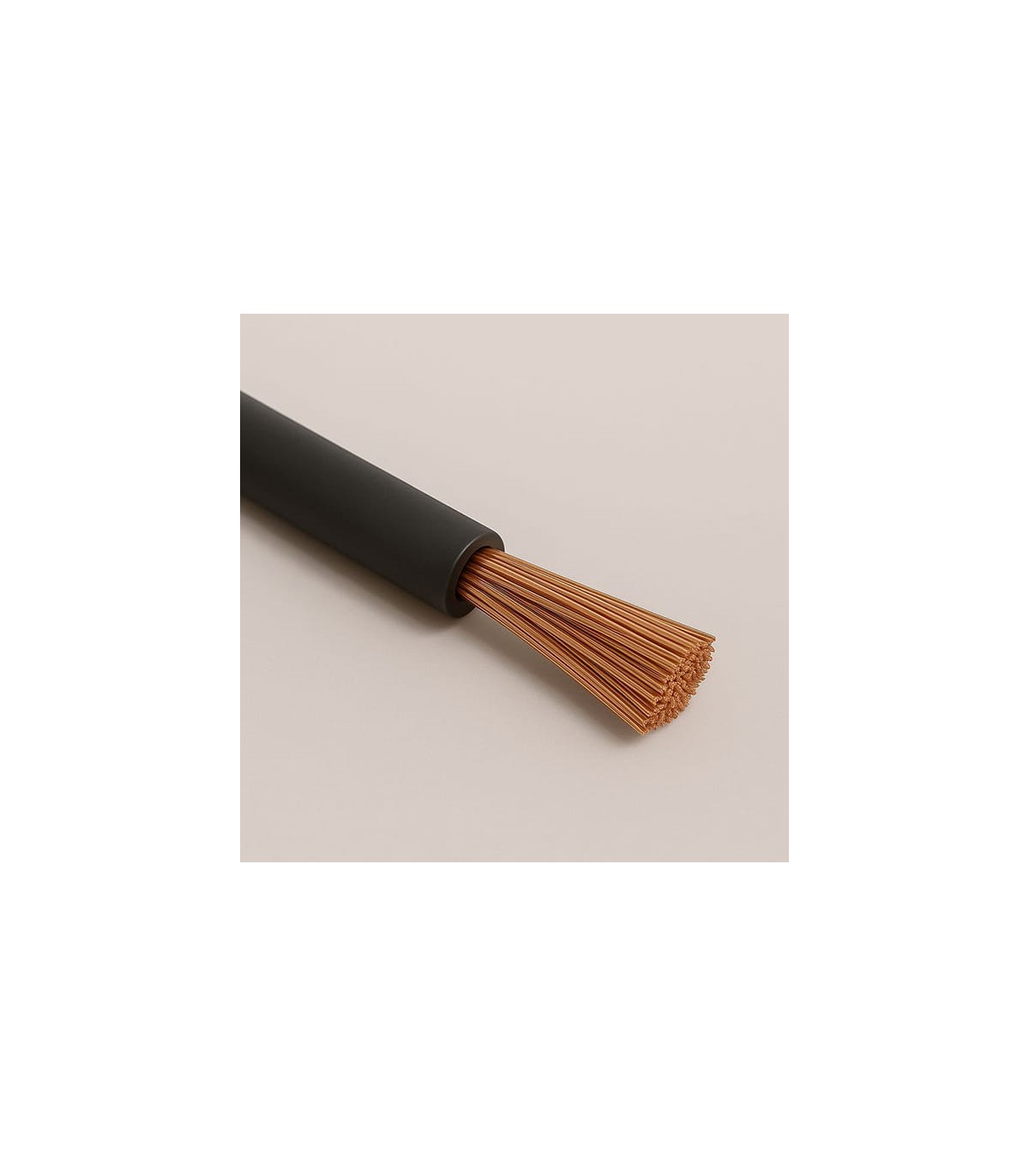

Cable Wire Unipolar in Silicon FG4 section 0,75 mmq black

Silicone single-core cables are the ideal choice for those seeking a reliable, safe and versatile technical solution in all applications that require high performance even under extreme conditions.

Made with a tinned copper conductor with fine strands and insulated with a silicone sheath, these electrical cables combine flexibility, strength and long-term durability, standing out for their ability to maintain constant performance even in the most demanding environments.

Their main feature is their high temperature resistance, with a range that goes from very low values up to prolonged heat peaks, without compromising the safety and functionality of the wiring.
The silicone insulation also ensures excellent chemical and environmental resistance: the cables remain stable and reliable even in contact with ozone, oxygen, oils, grease, alcohol, diluted acids or saline solutions, ensuring constant and long-lasting performance.

Another strong point is safety: silicone cables are halogen-free, reduce the formation of toxic and corrosive gases in case of fire, and are designed to be self-extinguishing and flame-retardant, compliant with the strictest international standards.
These characteristics make them particularly suitable for complex industrial environments such as steel mills, foundries, cement plants, glassworks and ceramic processing plants, where contact with intense heat and aggressive substances is continuous.
They are also used in the marine and aeronautical sectors, where lightness, reliability and top-level safety are required.

Available in a wide range of cross-sections, these high-temperature cables can be used for both fixed installations and mobile applications, always ensuring excellent mechanical and electrical performance.
In every application they guarantee operational continuity, protection and long-term quality, making them the ideal solution for safe, durable and flexible wiring even in the most demanding conditions.

Technical features

• Number of conductors: 1


• Conductor material: Red copper


• Cable section: 0.75 mm²


• Outer sheath color: Black


• Minimum operating temperature: -60 °C


• Maximum operating temperature: +180 °C


• Rated voltage: 300 V / 500 V


• Outer diameter: 2.40 mm


• Voltage test: 2000 V


• Flame resistance: IEC 60332-1-2


• Properties: High flexibility and wear resistance

Typical applications

Machinery, tools, robotics, automation and industrial control.
