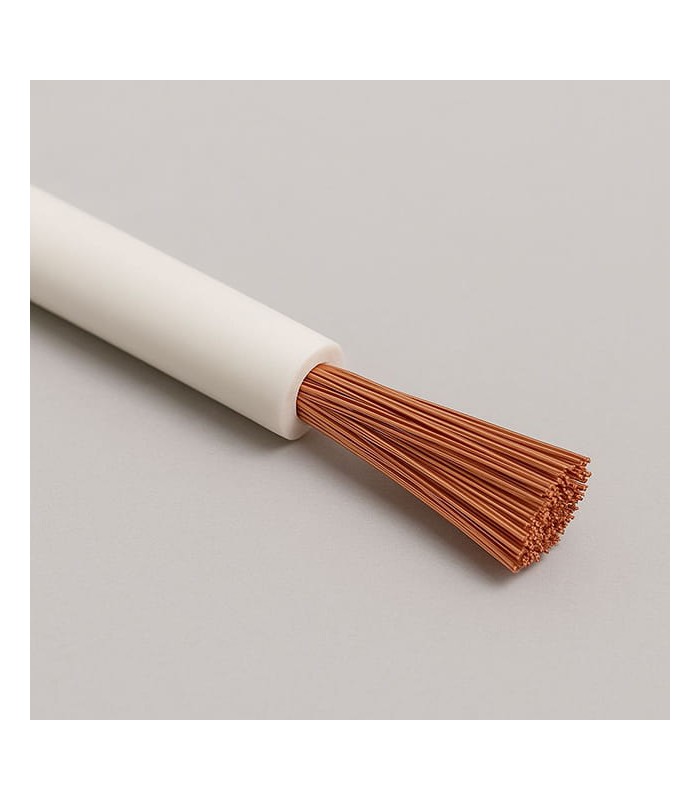

Cable Unipolar Wire FLRY-B ISO 6722 Class B Sec. 1,50 mmq White
ErreBi code: 17174
Price for meter
Read moreShow lessPrice for meter
€0.74
(tax excl.)
€0.90
(tax incl.)
Condition
New
Reference:
RBCVFLRYB1.5BN
Brand:
Add to wishlist(1)
Multi strand wire. The steps of stranding Comply with the requirements of DIN 72551.
Insulation polyvinyl chloride suitable for use in the automotive industry resistant to mineral oils, hydrocarbons and fluids Motor (PVC type T2 or T3 to specifications FIAT 91107, Class B or Class C according to ISO 6722).
Rated voltage: 50 V
Test voltage: 3 kV or 5 kV
Temperature: 105 ° C or 125 ° C
Short circuit temperature: 160 ° C
Minimum bending radius: 6 x D
Read moreShow less
Insulation polyvinyl chloride suitable for use in the automotive industry resistant to mineral oils, hydrocarbons and fluids Motor (PVC type T2 or T3 to specifications FIAT 91107, Class B or Class C according to ISO 6722).
Rated voltage: 50 V
Test voltage: 3 kV or 5 kV
Temperature: 105 ° C or 125 ° C
Short circuit temperature: 160 ° C
Minimum bending radius: 6 x D
RBCVFLRYB1.5BN
Data sheet
- Product type
- FLRY-B Cable
- Color
- White
- external diameter
- 2.35 mm
- Voltage
- 50V
- Operating temperature min.
- -40°C
- Operating temperature max.
- +105°C
- Insulation material
- PVC
- Conductor (Material)
- Electrolytic Copper
- Cable section mmq
- 1.50 mmq
- Shielding
- No
- Voltage test
- 5000V
- Type of employment
- Automotive Sector
- Resistance of the conductor
- <= 12.7 Ohm/Km
- Minimum order quantity
- 3
- Unit Type
- metres
