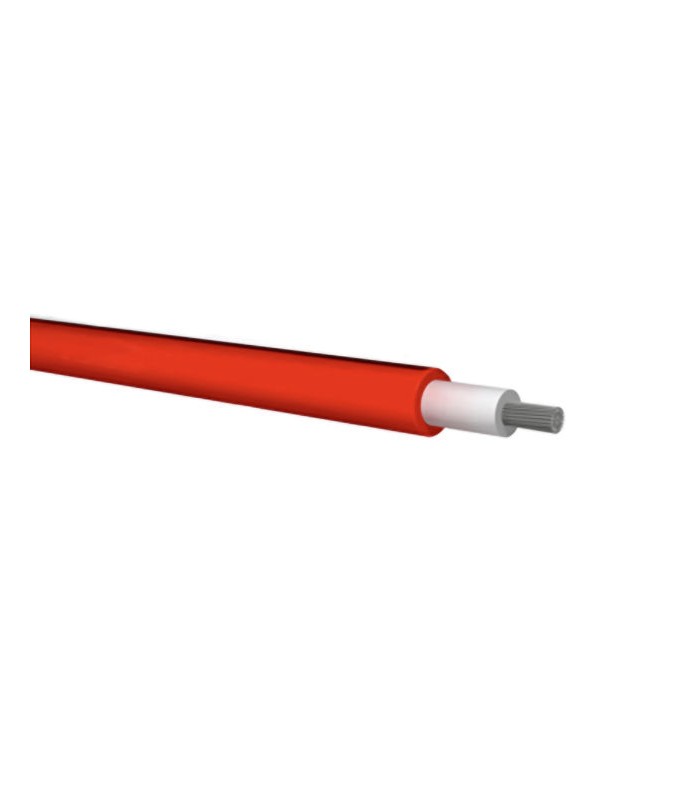

Cable Wire Unipolar Solar FG21M21 sec. 6,00 mmq Red

ErreBi code: 15037
Price for meter
Read moreShow less
€2.64 (tax excl.)
€3.22

Discounts for quantities

Quantity Unit price You Save
10 €2.90 €3.18
25 €2.58 €16.06
50 €2.42 €40.26
100 €2.09 €113.05
250 €1.77 €361.94
500 €1.61 €805.20
1000 €1.45 €1,773.05
Last items in stock 10 Items
Condition
New
Reference:
RBCV6FG21M21RO
Add to wishlist
Description
Conductors: annealed tinned copper cl.5 IEC 60228
Insulation: LSZH compound quality G21 CEI 20-91
Sheath: LSZH compound quality M21 CEI 20-91
Sheath color: black - red - blue
Flame retardant: IEC 60332-1-2
Halogen: (<0.5 mg / g - 0.5%) IEC 50267-2-1 / 2 - IEC 60754-1 / 2
Reduced emission of toxic gases: (toxicity index <2%) CEI 20-37 / 4-0
Reduced smoke emission: (transmittance> 60%) IEC 61034-2
UV-resistant: HD 605
Ozone resistant: IEC 50396
Long-term behavior: (20000 has 120 ° C) IEC 60216
Electrical resistance: according to IEC 60228
Maximum voltage: 1.2 kVac 1.8 kV DC (also ground)
Test voltage: 6.5 kV DC 15 kVac
Maximum working temperature: 90 ° C
Short circuit temperature: 250 ° C
Min. installation: -25 ° C
Bending radius: 6 x Ø
Read moreShow less
Product Details
RBCV6FG21M21RO

Data sheet

Product type
Cable FG21M21
Color
Red
external diameter
6.80 mm
Operating temperature min.
-40°C
Operating temperature max.
+90°C
Insulation material
LS0H (Low Smoke Zero Halogen)
Conductor (Material)
tinned copper
Cable section mmq
6.00 mmq
Voltage test
4000V
Type of employment
Photovoltaic Systems
Resistance of the conductor
<= 3.39 Ohm/Km
Minimum order quantity
1
Unit Type
metre
