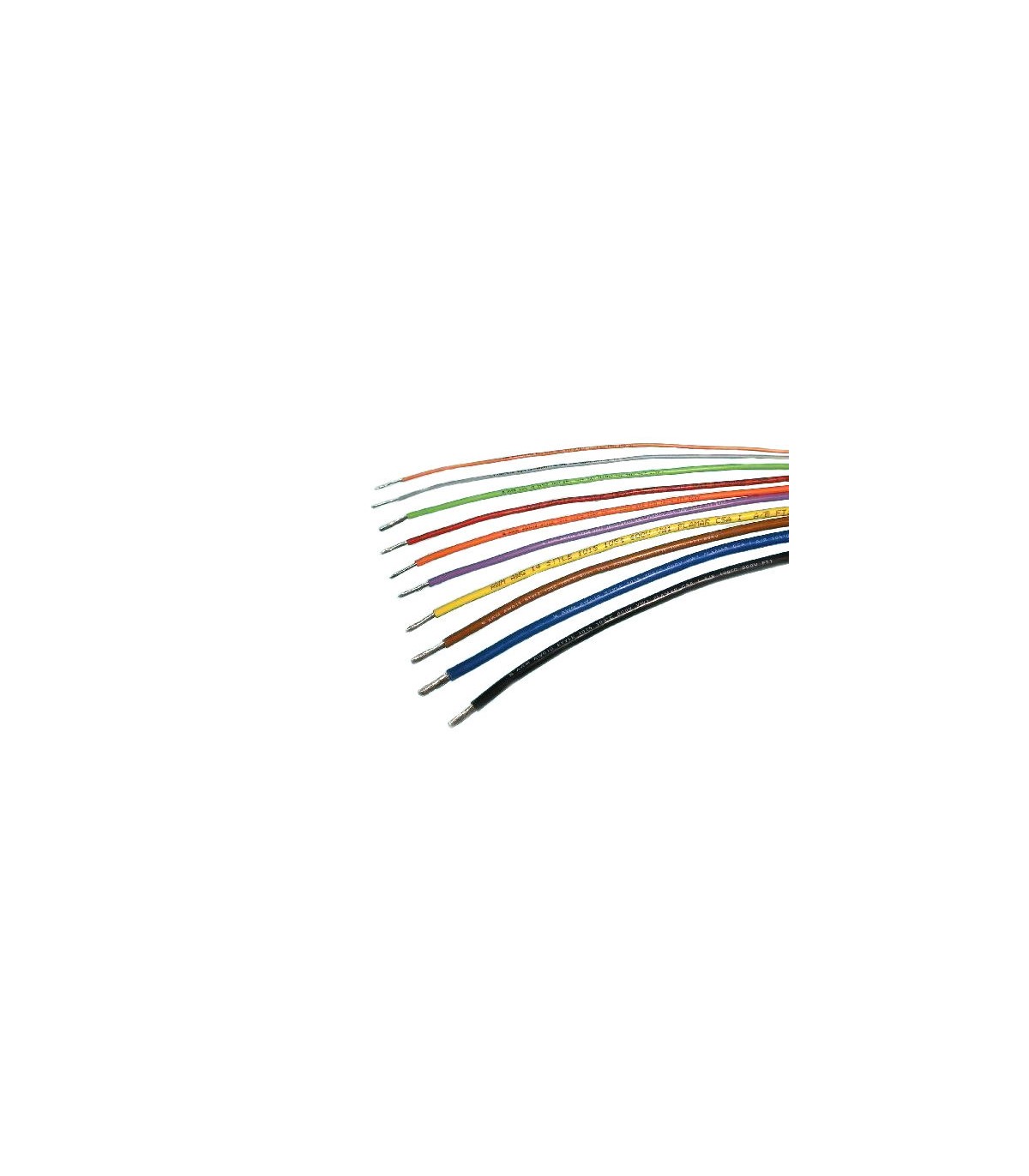

Cable wire unipolar UL Style 1007 AWG 20 Red
ErreBi code: 17866
Price for meter
Read moreShow lessPrice for meter
€0.56
(tax excl.)
€0.68
Condition
New
Reference:
RBCVS100720ARO.UL
Brand:
Add to wishlist(2)
Tinned Copper
Rated voltage: 300 V
Test voltage: 2000 V
Spark test (Test voltage):
AWG 28 - 20: 4 kV
AWG 18 - 10: 5 kV
Core insulation:
PVC mixture acc. to UL: VW-1
CSA: FT 1
Insulation resistance:
min. 20 MOhm X km
Approvals:
AWG 32 - 16: UL style 1007 (300 V/80°C)
CSA TR 64 (300V/90°C)
Temperature range:
UL-Style 1007 : -40°C to + 80°C
CSA TR 64: -40°C to + 90°C
Read moreShow less
Rated voltage: 300 V
Test voltage: 2000 V
Spark test (Test voltage):
AWG 28 - 20: 4 kV
AWG 18 - 10: 5 kV
Core insulation:
PVC mixture acc. to UL: VW-1
CSA: FT 1
Insulation resistance:
min. 20 MOhm X km
Approvals:
AWG 32 - 16: UL style 1007 (300 V/80°C)
CSA TR 64 (300V/90°C)
Temperature range:
UL-Style 1007 : -40°C to + 80°C
CSA TR 64: -40°C to + 90°C
RBCVS100720ARO.UL
Data sheet
- Product type
- Cable UL
- Color
- Red
- external diameter
- 1.70 mm
- Voltage
- 300V
- Operating temperature min.
- -40°C
- Operating temperature max.
- +80°C
- Insulation material
- PVC
- Conductor (Material)
- tinned copper
- Cable section AWG
- 20 AWG
- Shielding
- No
- Voltage test
- 2000V
- Style
- UL Style 1007
- Type of employment
- Internal Wiring
- Resistance of the conductor
- <= 34.0 Ohm/Km
- Minimum order quantity
- 5
- Unit Type
- metres
