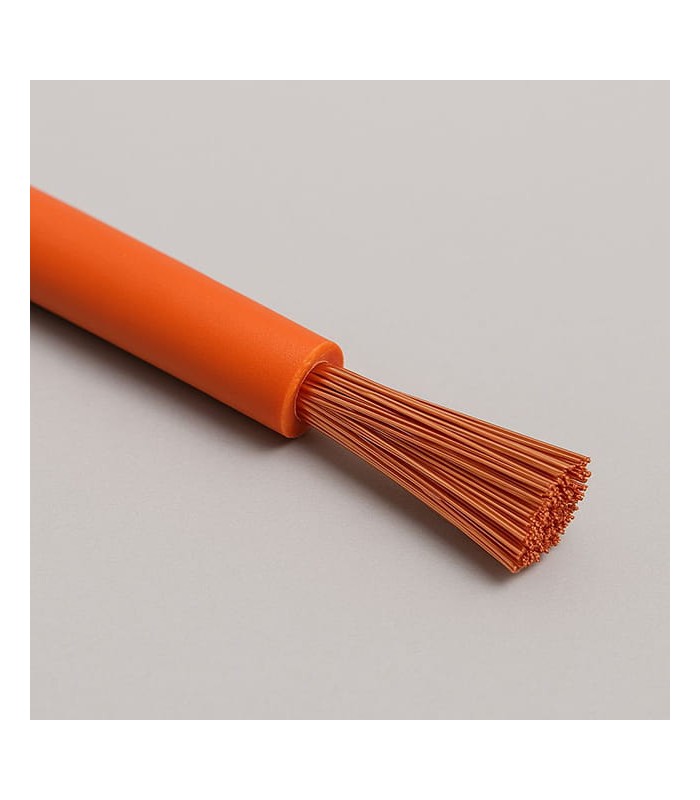

Cable Unipolar Wire H05V-K sec. 0,75 mmq Orange

ErreBi code: 18302
Price for meter:6
Note: the item is sold in the meter continues.
Example: If you buy quantity 3, you will receive one continuous length of 18MT
€1.44 (tax excl.)
€1.76
(€0.29 / m)

Discounts for quantities

Quantity Price You Save
2 €1.58 Up to €0.35
5 €1.41 Up to €1.75
9 €1.32 Up to €3.95
17 €1.14 Up to €10.48
42 €0.97 Up to €33.17
84 €0.88 Up to €73.79
167 €0.79 Up to €161.51
In Stock 3016 Items
Condition
New product
Reference:
RBCV0.75H05AR
Brand:
Add to wishlist
Description
Nominal voltage Uo/U: 450/750 V
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Product Details
RBCV0.75H05AR

Data sheet

Product type
H05V-K Cable
Color
Orange
external diameter
2.30 mm
Voltage
750V
Operating temperature min.
-10°C
Operating temperature max.
+70°C
Insulation material
PVC
Conductor (Material)
Electrolytic Copper
Cable section mmq
0.75 mmq
Shielding
No
Voltage test
2500V
Type of employment
Internal Wiring
Resistance of the conductor
<= 24.5 Ohm/Km
