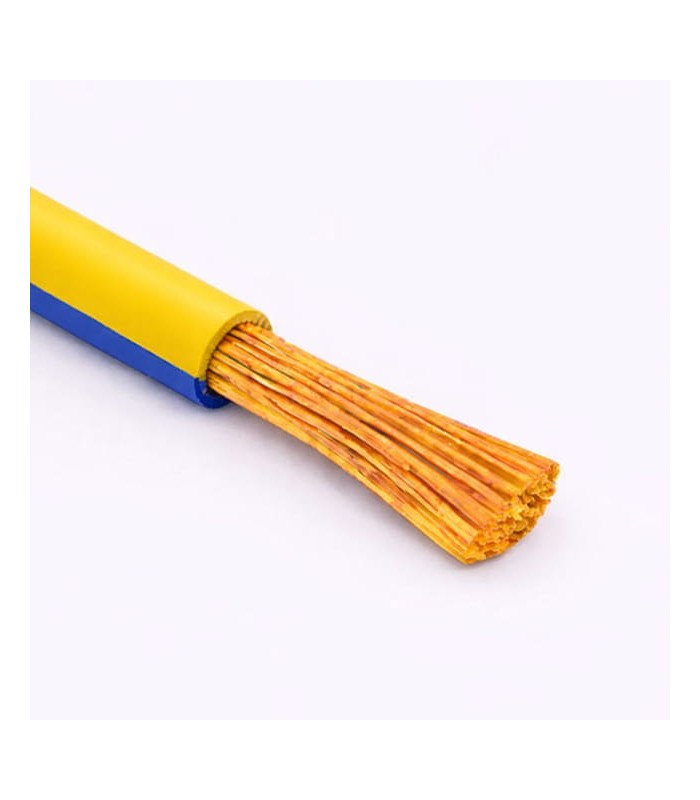

Cable Unipolar Wire H05V-K sec. 0,35 mmq Yellow/Blue

ErreBi code: 18278
Price for meter
Read moreShow less
€0.23 (tax excl.)
€0.28

Discounts for quantities

Quantity Unit price You Save
20 €0.28 €0.00
40 €0.22 €2.24
60 €0.21 €4.21
100 €0.18 €9.85
260 €0.15 €32.79
500 €0.14 €70.15
1000 €0.13 €154.47
Available in stock 3178 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCV0.35H05GLBL
Add to wishlist
Description
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Read moreShow less
Product Details
RBCV0.35H05GLBL

Data sheet

Product type
H05V-K Cable
Color
Yellow/Blue
external diameter
1.60 mm
Voltage
500V
Operating temperature min.
-10°C
Operating temperature max.
+70°C
Insulation material
PVC
Conductor (Material)
Electrolytic Copper
Cable section mmq
0.35 mmq
Shielding
No
Voltage test
2500V
Type of employment
Internal Wiring
Minimum order quantity
20
Unit Type
metres
