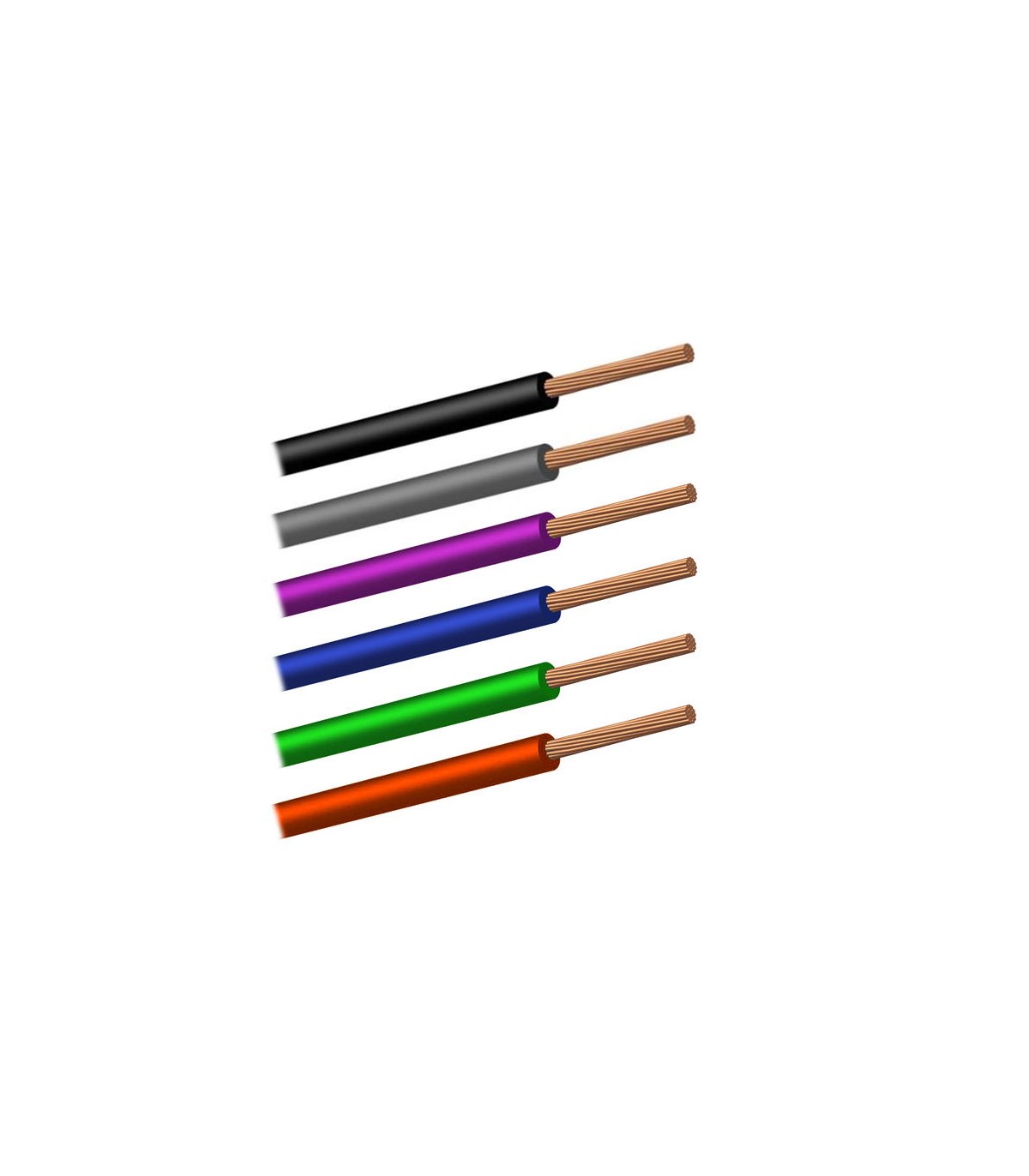

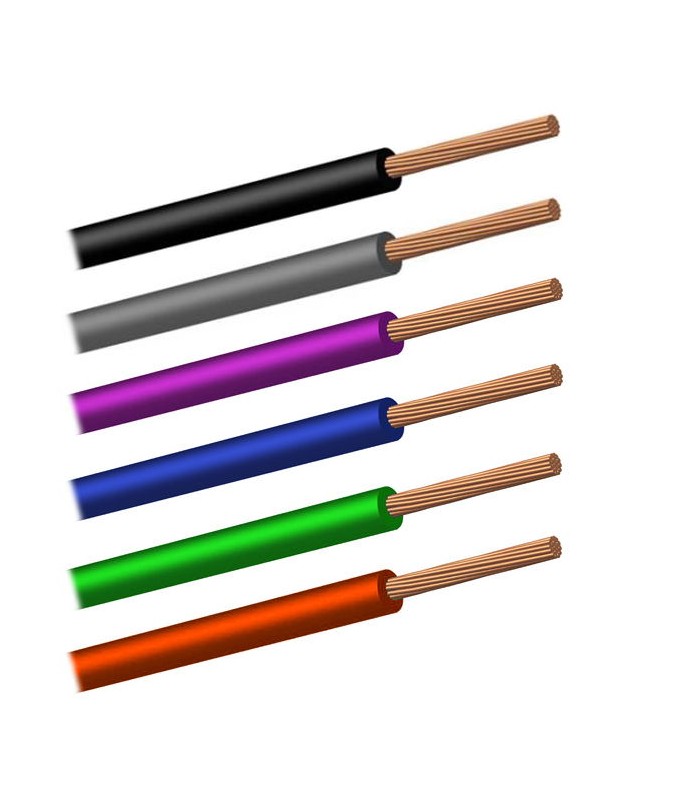

Cable Wire Unipolar H05V2-K sec. 0,50 mmq White

H05V2-K 0.50 mmq cables are designed to ensure safety, reliability, and durability in all electrical applications that require small cross-section conductors while still guaranteeing high performance. Made with flexible tinned copper conductor and covered with a special heat-resistant PVC insulation, these cables offer an excellent combination of flexibility, durability, and long-term stability.

The H05V2-K cable stands out for its high-temperature resistance, operating up to 90°C in continuous service and withstanding higher peaks without compromising electrical characteristics. The high-quality PVC insulation also provides good protection against abrasion, mechanical stress, and external agents, maintaining performance even in demanding environments.

Thanks to its structure, this flexible single-core cable is particularly suitable for internal wiring of electrical equipment, control and command panels, household appliances, and lighting systems, where compactness, safety, and reliability are required. Its flexible nature makes it ideal for installations with reduced bending radii, ensuring easy laying and continuous service.

Available in various colors, it is the ideal choice for those seeking a safe, versatile, and heat-resistant cable, compliant with the most important international electrotechnical standards.

Technical characteristics:

Number of conductors: 1
Copper: Tinned copper
Cross-section: 0.50 mmq
Outer sheath color: White
Min. operating temperature: -10 °C
Max. operating temperature: +90 °C
Max. short-circuit temperature: 160 °C
Rated voltage: 300V/500V
Min. laying temperature: +5 °C
Inner diameter: 0.90 mm
Operating conditions:
For internal wiring and fixed, protected installation inside equipment and lighting devices, for applications in high-temperature areas.
Not to be used in contact with surfaces above 85°C. Not suitable for fixed installations in distribution systems.
