€1.02
(tax excl.)
€1.24
(tax incl.)
ErreBi code: 20939Price for meter

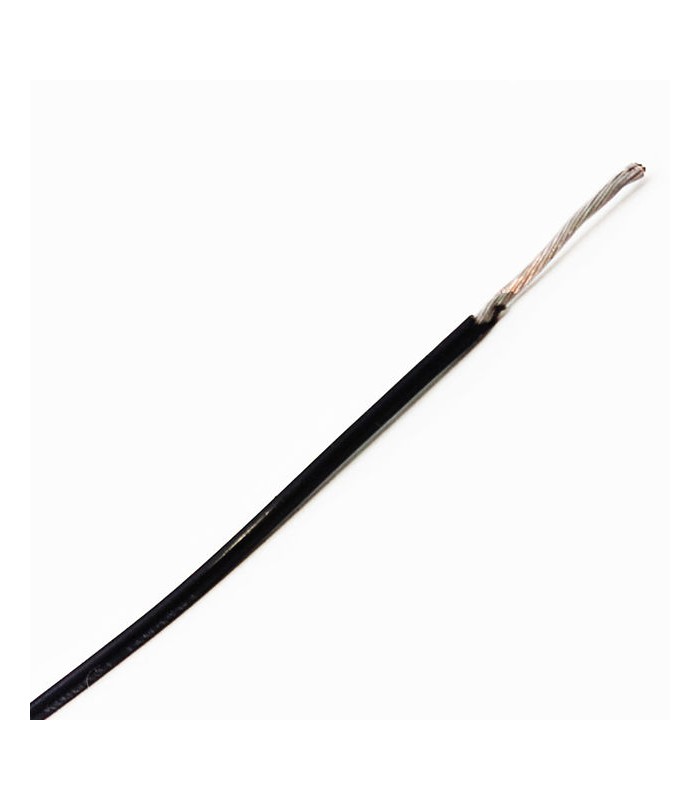

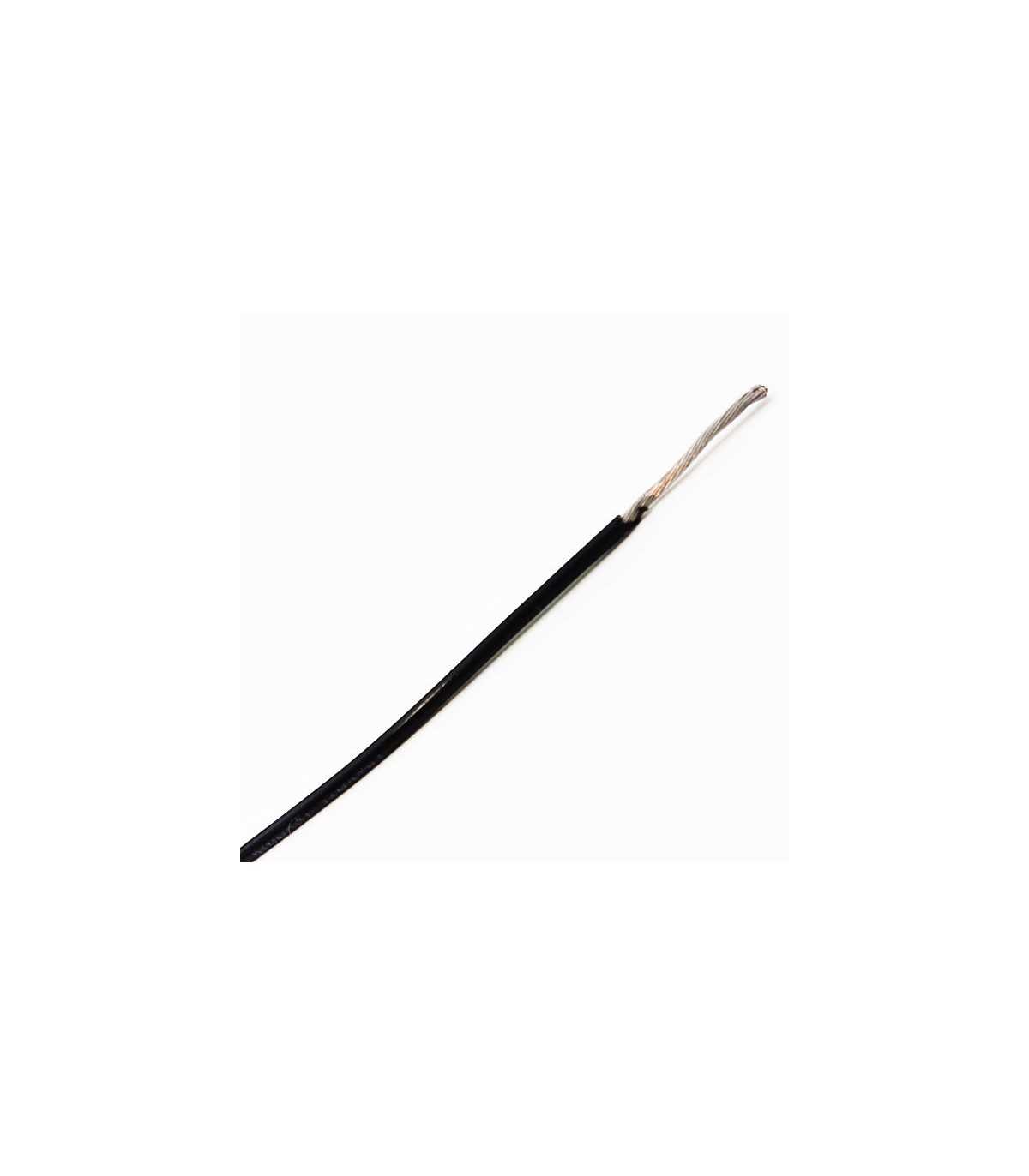

FEP wire unipolar cable IMQ Approved sec. 0,75 mmq Black
ErreBi code: 20938
Price for meter
Read moreShow lessPrice for meter
€1.02
(tax excl.)
€1.24
(tax incl.)
Condition
New
Reference:
RBCV0.75FR5FNR
Brand:
Add to wishlist
Flexible rope conductor with electrolytic tinned copper.
FEP insulation type FR5F in compliance with CEI 20-51 requirements.
Rated voltage: 450/750 V
Test voltage: 2500 V
Rated temperature: 180 °C
Short-circuit temperature: 250°C
Minimum bending radius: 8 x D
IMQ: License No. A2641
Read moreShow less
FEP insulation type FR5F in compliance with CEI 20-51 requirements.
Rated voltage: 450/750 V
Test voltage: 2500 V
Rated temperature: 180 °C
Short-circuit temperature: 250°C
Minimum bending radius: 8 x D
IMQ: License No. A2641
RBCV0.75FR5FNR
Data sheet
- Product type
- FEP Cable
- Color
- Black
- external diameter
- 1.50 mm
- Voltage
- 750V
- Operating temperature min.
- -55°C
- Operating temperature max.
- +180°C
- Insulation material
- Propylene Ethylene Fluoride (FEP)
- Conductor (Material)
- Red copper
- Cable section mmq
- 0.75 mmq
- Shielding
- No
- Voltage test
- 2500V
- Flame resistance
- IEC 60332-3-24
- Type of employment
- Internal Wiring
- Resistance of the conductor
- <= 26.7 Ohm/Km
- Minimum order quantity
- 5
- Unit Type
- metres
