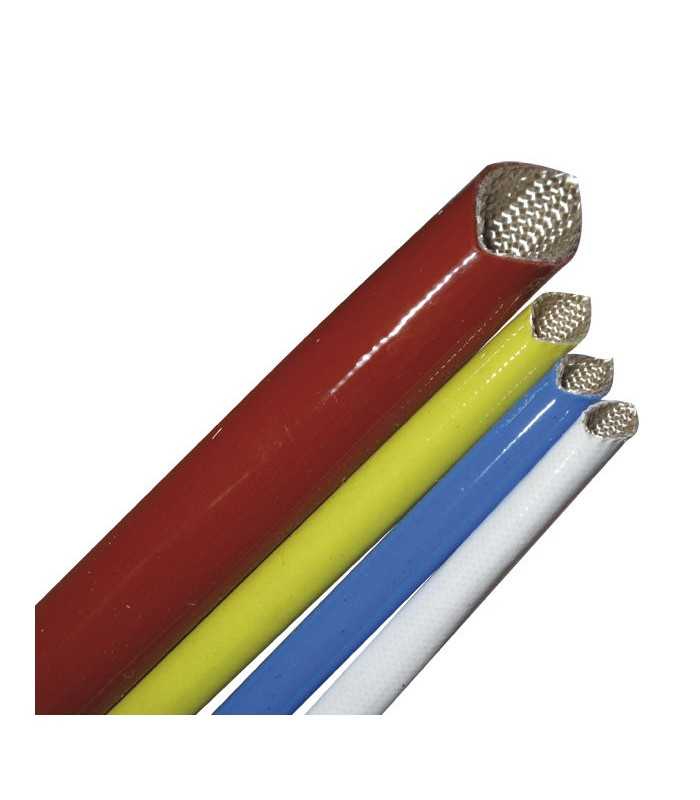

Sheaths in Glass/Silicone Diameter 6mm 4kv Red

Errebi code: 16905
Diameter: 6mm
Working temperature (°C): 180°
Price for meter
Read moreShow less
€1.83 (tax excl.)
€2.23

Discounts for quantities

Quantity Unit price You Save
10 €2.01 €2.20
25 €1.79 €11.14
50 €1.67 €27.91
100 €1.45 €78.36
250 €1.23 €250.89
500 €1.12 €558.15
1000 €1.00 €1,229.05
Product available for orders
Condition
New
Reference:
RBGNVSD6/4KWR
Add to wishlist
Description
Insulation jacket braided fiberglass coated with silicone resin. It has excellent resistance to high temperatures and a good electrical resistance, withstands vibration, rough handling and is highly resistant to bending being very flexible. Resistant to most chemical agents such as UV radiation, solvents, greases, oils. It is notaffected by mold or fungus. Used in wiring of appliances and heaters, ovens, stoves,irons, welding machines, lamps, transformers, electrical panels, etc. etc ..

It does not spread flame.
3 versions: 1.5 kV, 2.5 kV and 4 kV.
Standard color: red brick (Other: Black).
Thermal class H (180 ° C), but resists peaks of 250 ° C.
Dielectric strength to UL 1441.

After heat treatment: Do you notice any breakage or detachment of the sheath recoating after 48 hours at 260 ° C
At low temperatures: Do you notice any tears or detachment of the sheath covering after 60 minutes at - 70 ° C

Flame Propagation: Max 60 seconds
Read moreShow less
Product Details
RBGNVSD6/4KWR

Data sheet

Product type
Sheath Glass/Silicone
Material
Glass/Silicon
Color
Red
Internal diameter
6 mm
Flammability
They don't propagate the flame.
Version
4 kv
Expandable
No
Operating temperature max.
+180°C
Minimum order quantity
1
Unit Type
metre
