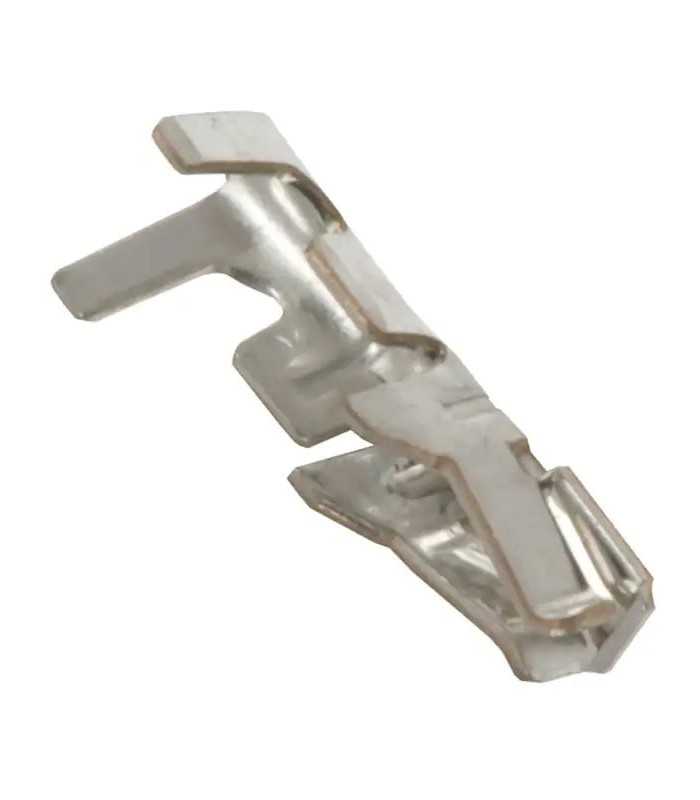

RBTNDF11F

Terminal DF11 Female 24-28AWG

Errebi code: 26548
Producer code: Cross reference DF11-2428SCF
Producer: Cross reference Hirose
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.05 (tax excl.)
€0.06 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
50 €0.06 €0.00
100 €0.04 €2.14
250 €0.03 €6.85
500 €0.03 €15.25
1000 €0.03 €33.58
Available in stock 35716 Items
The minimum purchase order quantity for the product is 50.
Condition
New
Reference:
RBTNDF11F
Brand:
Hirose
Add to wishlist
Description
Basic Specifications
- Connector Type: Contact
- Cable Assembly: No
- Staggered Lead: No
- Mating/Unmating Cycles: 30
- Contact Plating: Tin
- Plating Thickness: 1.0 µm
- Wire Termination Method: Crimping
- Recommended Wire Type: Discrete wire
- Recommended Min. Wire Size (AWG): 28
- Recommended Max. Wire Size (AWG): 24
- Operating Temperature Max.: 85 °C
- Operating Temperature Min.: -40 °C

Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Contact Resistance: 30.0 mOhm Max.
- Withstanding Voltage: 650 V Max.
Read moreShow less
Product Details
RBTNDF11F

Data sheet

Product type
Terminal
Serie
DF11
Amperage
2A
Operating temperature
-40°C a +85°C
Voltage
250V
Mounting
On cable
Wire range
28 - 24 AWG
Kind
Female
Orientation
180°
Contact plating
Tin
Minimum order quantity
50
Unit Type
pieces
