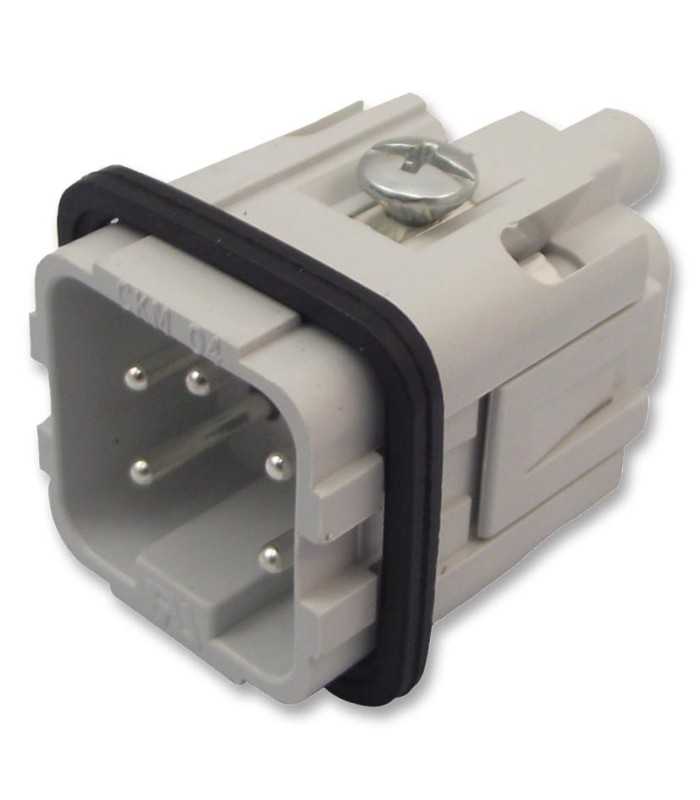

Connector Rectangular Male Insert 4 Way + Grounding 10A
Errebi code: 17674
Producer code: CKM 04
Producer: ILME
Read moreShow lessProducer code: CKM 04
Producer: ILME
€5.47
(tax excl.)
€6.67
(tax incl.)
Condition
New
Reference:
RBFTSP5P10A
Brand:
Add to wishlist
Manufacturer: ILME
Connector type: square
Connector type: Male
Connector series: CK/MK
Number of pins: 5
Type of pin configuration: 4+PE
Case: size 21.21
Rated current: 10A
Rated voltage: 250V
Wire cross section: 0.75...2.5mm2
Mechanical durability: 500cycles
Contact plating: silver plated
Contact material: brass
Max. contact resistance:: 1mO
Test voltage: 4kV
Operating temperature: -40...100°C
Mechanical mounting: for cable
Electrical mounting: screw terminal
Conform to the norm: CE, CSA, DIN VDE 0627, IEC 61984, UL
Read moreShow less
Connector type: square
Connector type: Male
Connector series: CK/MK
Number of pins: 5
Type of pin configuration: 4+PE
Case: size 21.21
Rated current: 10A
Rated voltage: 250V
Wire cross section: 0.75...2.5mm2
Mechanical durability: 500cycles
Contact plating: silver plated
Contact material: brass
Max. contact resistance:: 1mO
Test voltage: 4kV
Operating temperature: -40...100°C
Mechanical mounting: for cable
Electrical mounting: screw terminal
Conform to the norm: CE, CSA, DIN VDE 0627, IEC 61984, UL
