€1.87
(tax excl.)
€2.28
(tax incl.)
Errebi code: 28656Producer code: 280289-5Producer: TE/Connectivity

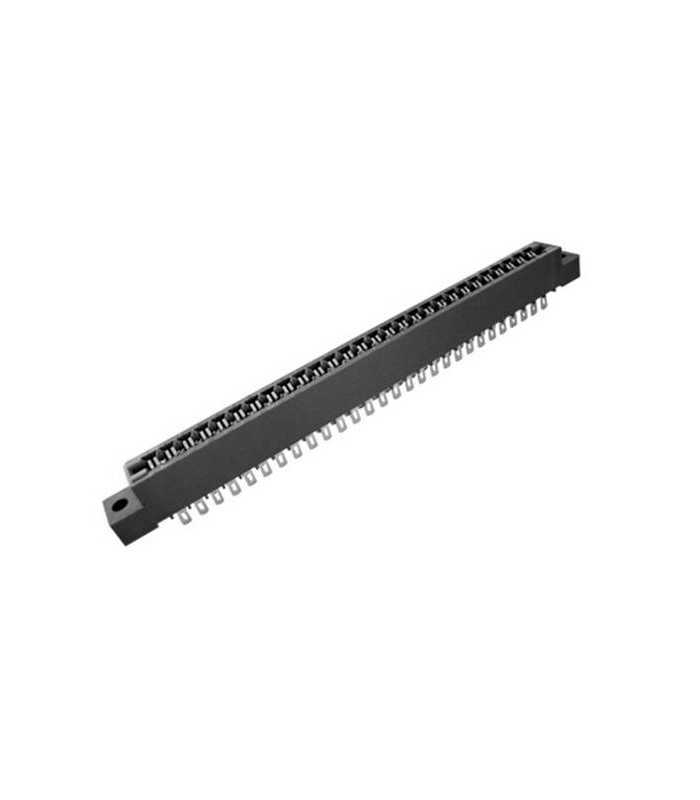

Modular connector female 56 way step 3,96mm
Errebi code: 11039
Producer code: -
Producer: -
Read moreShow lessProducer code: -
Producer: -
€7.80
(tax excl.)
€9.52
(tax incl.)
Condition
New
Reference:
RBCTML3.95F56V
Brand:
Add to wishlist
Insulator: PBT glass fiber reinforced UL94V-0, black color
Contacts: phosphor bronze
Plating: selective gold flash
Current rating: 3A max.
Contact resistance: 20 mohm max.
Insulation resistance: 5000 Mohmmin.
Dielectric withstanding: 500V AC for 1 minute
Temperature range: -40°C ÷ 105°C
Read moreShow less
Contacts: phosphor bronze
Plating: selective gold flash
Current rating: 3A max.
Contact resistance: 20 mohm max.
Insulation resistance: 5000 Mohmmin.
Dielectric withstanding: 500V AC for 1 minute
Temperature range: -40°C ÷ 105°C
RBCTML3.95F56V
Data sheet
- Product type
- Connector
- Amperage
- 3A
- Material
- PBT (Polybutylene terephthalate)
- Color
- Black
- Operating temperature
- -40°C to +105°C
- Flammability
- 94V-0
- Contact material
- Phosphor Bronze
- Kind
- Female
- Number of poles
- 56
- Number of rows
- 1
- Pitch
- 3.95 mm
- Contact plating
- Gold
- Minimum order quantity
- 1
- Unit Type
- piece
