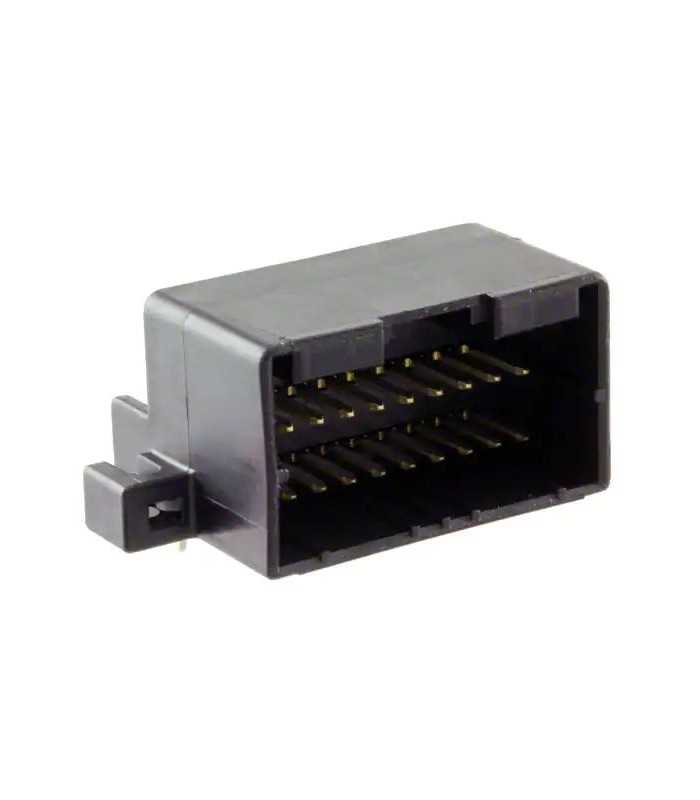

Connector Multilock 040 Female 20 Way PCB
Errebi code: 56905
Producer code: Cross Reference 174055-2
Producer: Cross Reference TE/Connectivity
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross Reference 174055-2
Producer: Cross Reference TE/Connectivity
Please note: the item is a reproduction of the original, please contact us for more information.
€2.98
(tax excl.)
€3.64
(tax incl.)
Condition
New
Reference:
RBCTML040PM20VNCS
Brand:
Add to wishlist
Product Type Features
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: No
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Row-to-Row Spacing: 5.2 mm [.205 in]
Configuration Features
Number of Positions: 20
Number of Rows: 2
Electrical Characteristics
Nominal Voltage Architecture (V): 12
Operating Voltage (VDC): 12
Body Features
Color: Black
Cable Exit Angle: 180°
Body Material: PBT
Contact Features
Mating Tab Width: .64 mm [.025 in]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch) 2.5 mm [.098 in]
Dimensions
Width 18.9 mm [.744 in]
Height 18.5 mm [.728 in]
Length 28.1 mm [1.0629 in]
Usage Conditions
Operating Temperature Range: -30 – 105°C[-22 – 221°F]
Operation/Application
Circuit Application: Signal
Industry Standards
UL Flammability Rating: UL 94-HB
Read moreShow less
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: No
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Row-to-Row Spacing: 5.2 mm [.205 in]
Configuration Features
Number of Positions: 20
Number of Rows: 2
Electrical Characteristics
Nominal Voltage Architecture (V): 12
Operating Voltage (VDC): 12
Body Features
Color: Black
Cable Exit Angle: 180°
Body Material: PBT
Contact Features
Mating Tab Width: .64 mm [.025 in]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch) 2.5 mm [.098 in]
Dimensions
Width 18.9 mm [.744 in]
Height 18.5 mm [.728 in]
Length 28.1 mm [1.0629 in]
Usage Conditions
Operating Temperature Range: -30 – 105°C[-22 – 221°F]
Operation/Application
Circuit Application: Signal
Industry Standards
UL Flammability Rating: UL 94-HB
RBCTML040PM20VNCS
Data sheet
- Product type
- Connector body
- Serie
- Multilock 040
- Amperage
- 5A
- Material
- PBT (Polybutylene terephthalate)
- Color
- Black
- Operating temperature
- -30°C to +105°C
- Dimensions
- 21,70x40,00x16,70 (L x W x H)
- Voltage
- 12V
- Mounting
- Printed circuit
- Kind
- Female
- Number of poles
- 20
- Number of rows
- 2
- Pitch
- 2.50 mm
- Orientation
- 180°
- Minimum order quantity
- 1
- Unit Type
- piece
