RBCTIGPF5X2VM
RBCTIGPF5X2VM
RBCTIGPF5X2VM
RBCTIGPF5X2VM

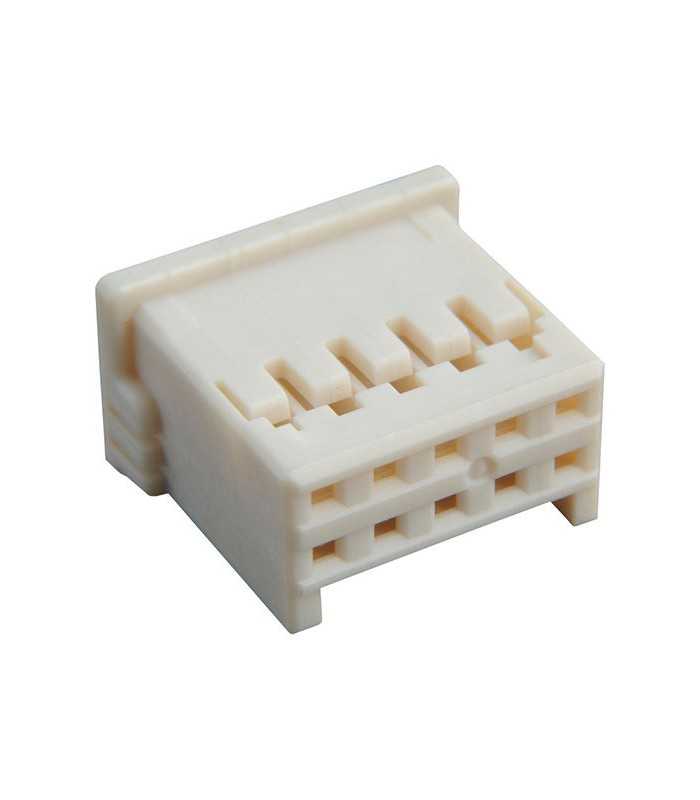

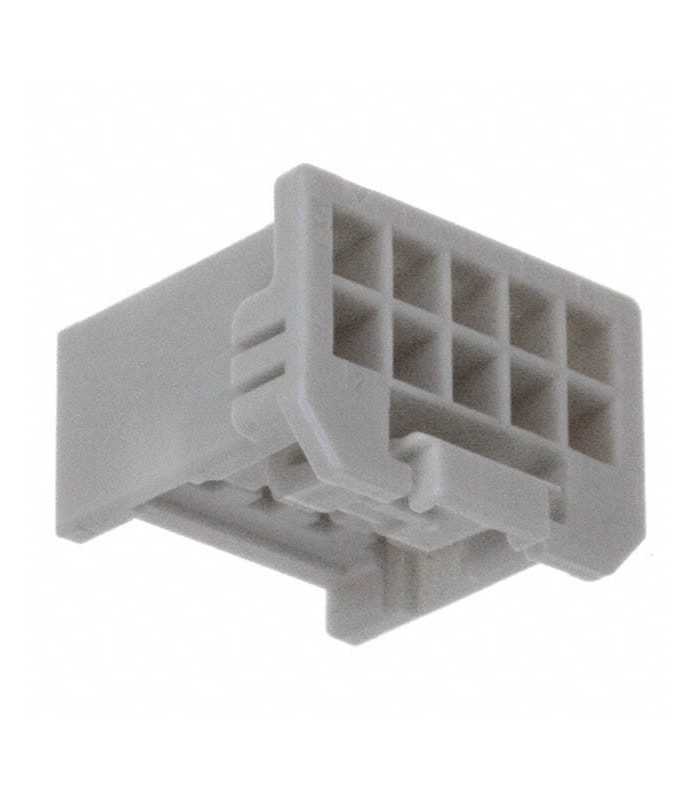

Connectors iGrid male 5x2 way

ErreBi code: 45573
Producer code: 501646-1000
Producer: Molex
Read moreShow less
€0.92 (tax excl.)
€1.12 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €1.01 €1.11
25 €0.90 €5.60
50 €0.84 €14.03
100 €0.73 €39.40
250 €0.62 €126.13
500 €0.56 €280.60
1000 €0.50 €617.88
Available in stock 5571 Items
Condition
New
Reference:
RBCTIGPF5X2VM
Brand:
Molex
Add to wishlist
Description
Series: 501646
Application: Signal, Wire-to-Board
Overview: iGrid Wire-to-Board Dual-Row System
Product Name: iGrid
Circuits (maximum): 10
Color - Resin: Natural
Flammability: 94V-0
Glow-Wire Capable: No
Keying to Mating Part: None
Lock to Mating Part: Yes
Material - Resin: Nylon
Number of Rows: 2
Panel Mount: No
Pitch - Mating Interface: 2.00mm
Pitch - Termination Interface: 2.00mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range - Operating: -40° to +105°C
Read moreShow less
Product Details
RBCTIGPF5X2VM

Data sheet

Product type
Connector body
Serie
iGrid - 501646
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Dimensions
10,55x12,00x8,20 (L x W x H)
Flammability
94V-0
Mounting
On cable
Kind
Male
Number of poles
10
Number of rows
2
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece

Specific References

UPC
822350087131
Attachments
045573_001_3D .pdf
Download (157.93KB)
045573_002_Drawing.pdf
Download (101.6KB)
