RBCTXHF4V

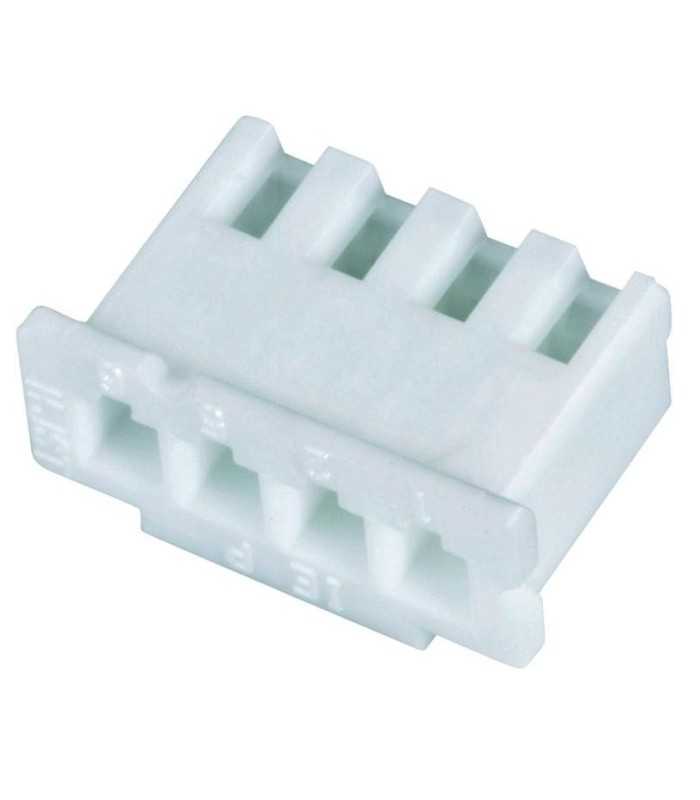

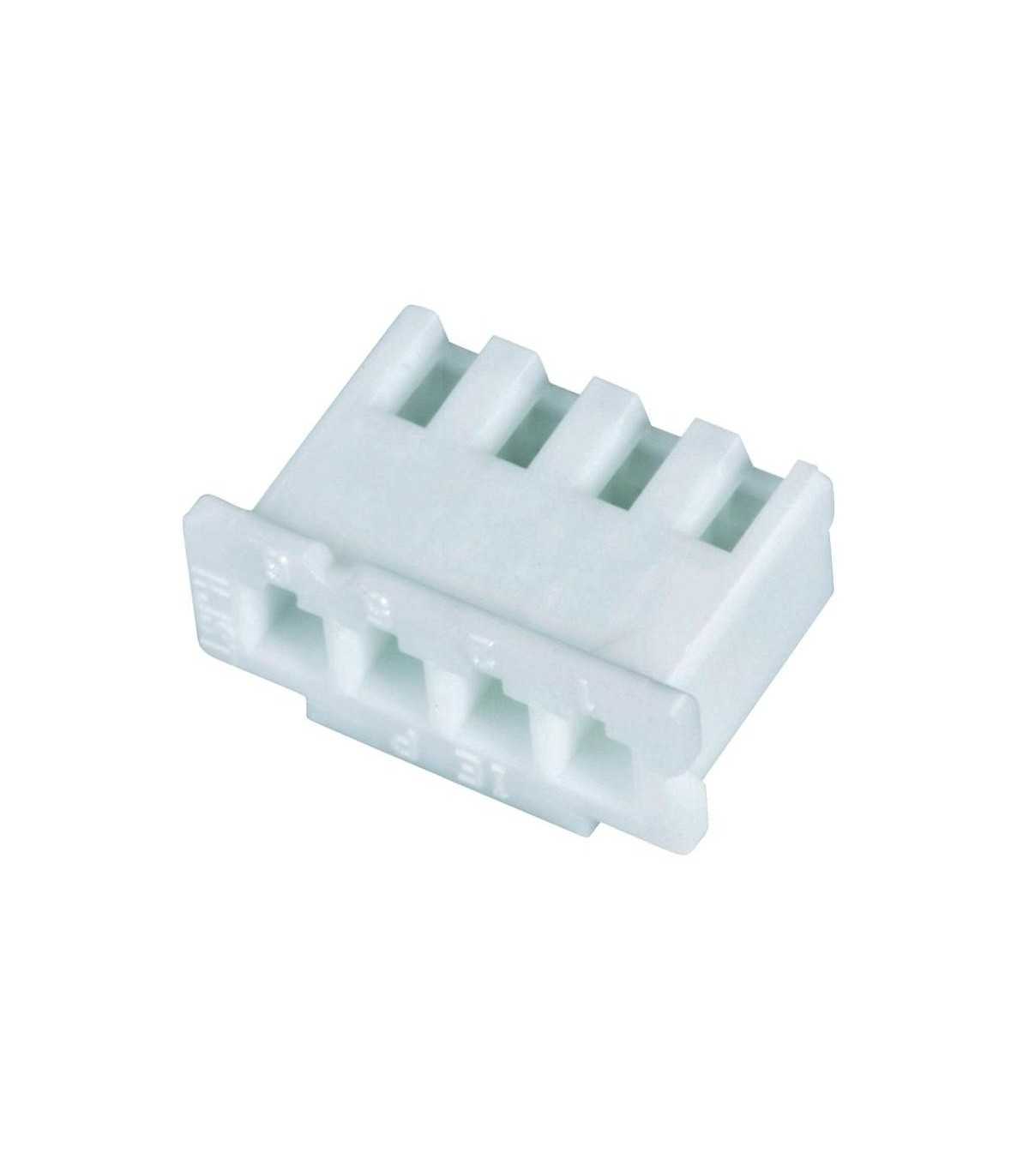

XH Connector female 4 way

Errebi code: 11612
Producer code: Cross Reference XHP-4
Producer: Cross Reference Japan Solderless Terminals
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.06 (tax excl.)
€0.07 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
100 €0.05 €2.56
250 €0.04 €8.24
500 €0.04 €18.30
1000 €0.03 €40.26
Available in stock 1118 Items
The minimum purchase order quantity for the product is 50.
Condition
New
Reference:
RBCTXHF4V.UL
Brand:
ErreBi Group
Add to wishlist
Description
Product Range: JST - XH Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 4
No. of Rows: 1
Pitch Spacing: 2.5mm
SVHC: No SVHC (16-Jun-2014)
Contact Resistance: 10mohm
Contact Termination: Crimp
Current rating: 3A
Insulation Resistance: 1000Mohm
Lead Spacing: 2.5mm
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Termination Method: Crimp
Voltage Rating V AC: 250V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 30AWG
Withstand Voltage: 1000V
Read moreShow less
Product Details
RBCTXHF4V.UL

Data sheet

Product type
Connector body
Serie
XH
Amperage
3A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-25°C a +85°C
Flammability
94V-0
Voltage
250V
Mounting
For cable
Kind
Female
Number of poles
4
Number of rows
1
Pitch
2.50 mm
Orientation
180°
Minimum order quantity
50
Unit Type
pieces
Attachments
011612_001_Drawing.pdf
Download (207.96KB)
