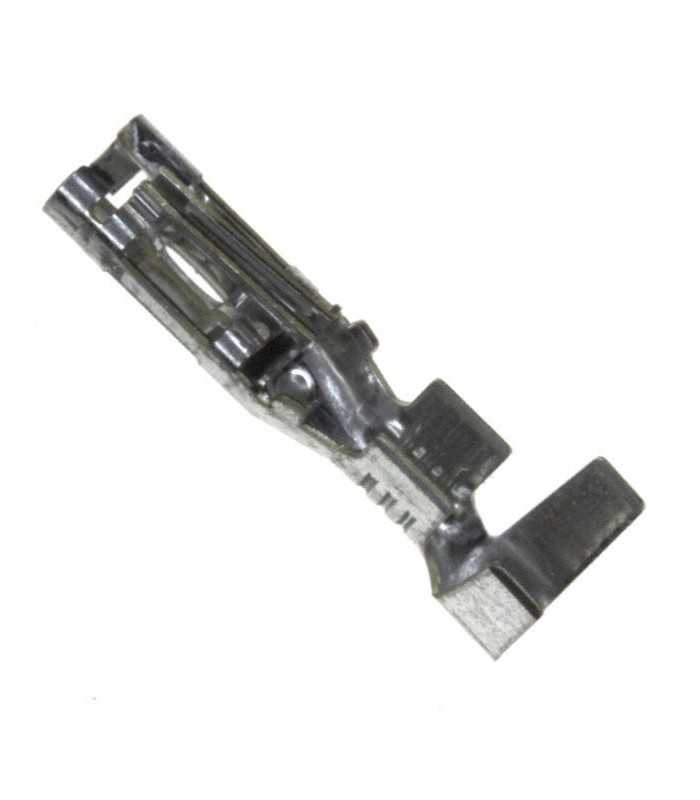

Terminal Sabre female for cable sec. 14-18 AWG

Terminal Sabre female for cable sec. 14-18 AWG

ErreBi code: 20243
Producer code: 43375-1001
Producer: Molex

€0.21 (tax excl.)

€0.26

Discounts for quantities

Quantity	Unit price	You Save
7	€0.26	€0.00
14	€0.23	€0.35
28	€0.21	€1.43
56	€0.19	€3.59
105	€0.17	€9.44
252	€0.14	€29.02
504	€0.13	€64.56
1001	€0.12	€141.18

Product available for orders

The minimum purchase order quantity for the product is 7.

Condition

New

Reference:

RBTNSF14184.75M

Brand:

Molex

Add to wishlist

Description

Category: Crimp Terminals
Series: 43375
Application: Power, Wire-to-Board, Wire-to-Wire
Overview: Sabre Power Connector
Product Name: Sabre

Physical
Durability (mating cycles max): 25
Gender: Female
Material - Metal: Brass
Material - Plating Mating: Tin
Material - Plating Termination: Tin
Plating min - Mating: 0.508µm
Plating min - Termination: 0.508µm
Termination Interface: Style: Crimp or Compression
Wire Insulation Diameter: 4.57mm max.
Wire Size AWG: 14, 16, 18+18
Wire Size mmq: N/A

Electrical
Current - Maximum per Contact: 18.0A
Voltage - Maximum: 600V
