€0.30
(tax excl.)
€0.37
(tax incl.)
ErreBi code: 42588Producer code: 104480-3Producer: TE/Connectivity

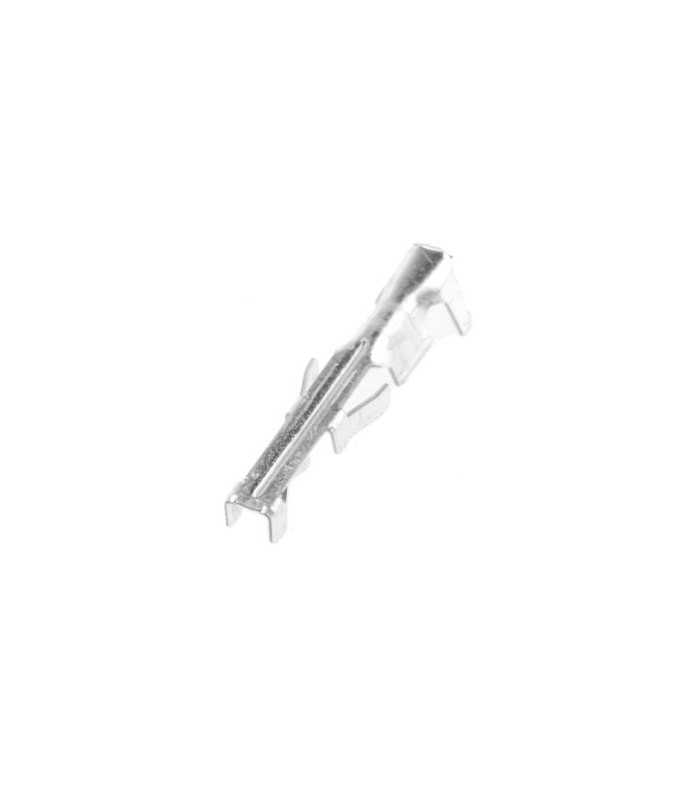

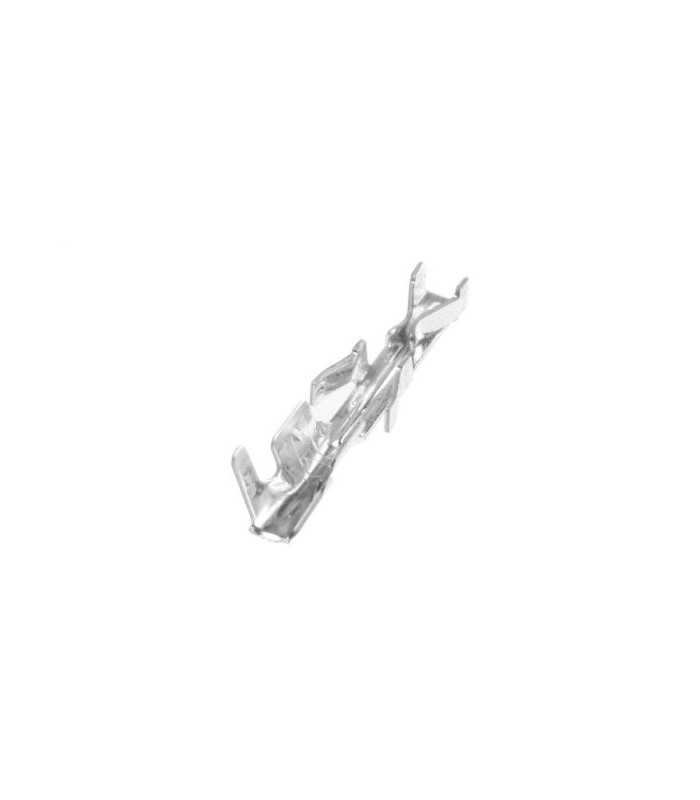

Terminal Minimodul Multimodul female for cable of Sec. 0,10 - 0,25 mmq
Errebi 11097
Producer code: 3111 01 G
Producer: Lumberg
Read moreShow lessProducer code: 3111 01 G
Producer: Lumberg
€0.96
(tax excl.)
€1.17
(tax incl.)
Condition
New
Reference:
RBTNMMF0.25
Brand:
Add to wishlist
Environmental conditions
Temperature range: -25 °C to +100 °C
Materials
Contact spring: CuSn, tin-plated
Mechanical data
Insertion force/contact: <= 4.0 N
Withdrawal force/contact: >= 0.5 N
Retaining force in housing: > 50 N
Suitable housing: empty housings 3114, 3823
Connectable conductors for crimp area
Section:0.10–0.25 mm²
Insulation diameter: 2.1 mm
Electrical data (at Tamb 20 °C)
Contact resistance: <= 5 mohm
Rated current: 5.0 A (Tamb 30 °C), 2.5 A (Tamb 70 °C)
Read moreShow less
Temperature range: -25 °C to +100 °C
Materials
Contact spring: CuSn, tin-plated
Mechanical data
Insertion force/contact: <= 4.0 N
Withdrawal force/contact: >= 0.5 N
Retaining force in housing: > 50 N
Suitable housing: empty housings 3114, 3823
Connectable conductors for crimp area
Section:0.10–0.25 mm²
Insulation diameter: 2.1 mm
Electrical data (at Tamb 20 °C)
Contact resistance: <= 5 mohm
Rated current: 5.0 A (Tamb 30 °C), 2.5 A (Tamb 70 °C)
RBTNMMF0.25
Data sheet
- Product type
- Terminal
- Serie
- Minimodul
- Amperage
- 5A
- Operating temperature
- -25°C a +100°C
- Voltage
- 250V
- Contact material
- Copper Alloy
- Mounting
- On cable
- Wire range
- 0,10 - 0,25 mmq
- Kind
- Female
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 2
- Unit Type
- pieces
