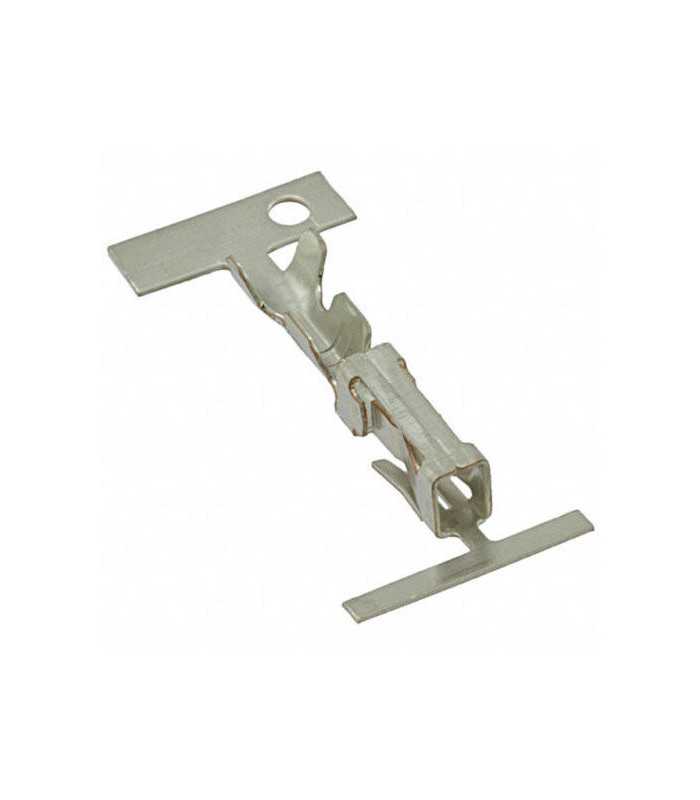

Modu I Terminal female

Product Type Features
Connector & Contact Terminates To: Wire & Cable
Product Type: Contact
Make First / Break Last: No
Applied Pressure: High
With Insulation Support: Yes

Body Features
Body Style: Straight

Contact Features
Contact Type: Socket
Contact Current Rating (Max) (A): 5
Contact Mating Area Plating Material: Tin
Contact Mating Area Plating Thickness: .8µm [31.496µin]
Contact Angle: Straight
Contact Base Material: Phosphor Bronze

Termination Features
Termination End Plating Thickness: .8µm [31.496µin]
Termination End Plating Material: Tin

Mechanical Attachment
PCB Mount Retention: Without

Dimensions
Wire Range: .3 – .9 mm² [22 – 18 AWG]
Insulation Diameter: 1.8 – 2.3mm[.071 – .091in]

Usage Conditions
Operating Temperature Range (°C): -40 – 105
