RBIDCPX10V

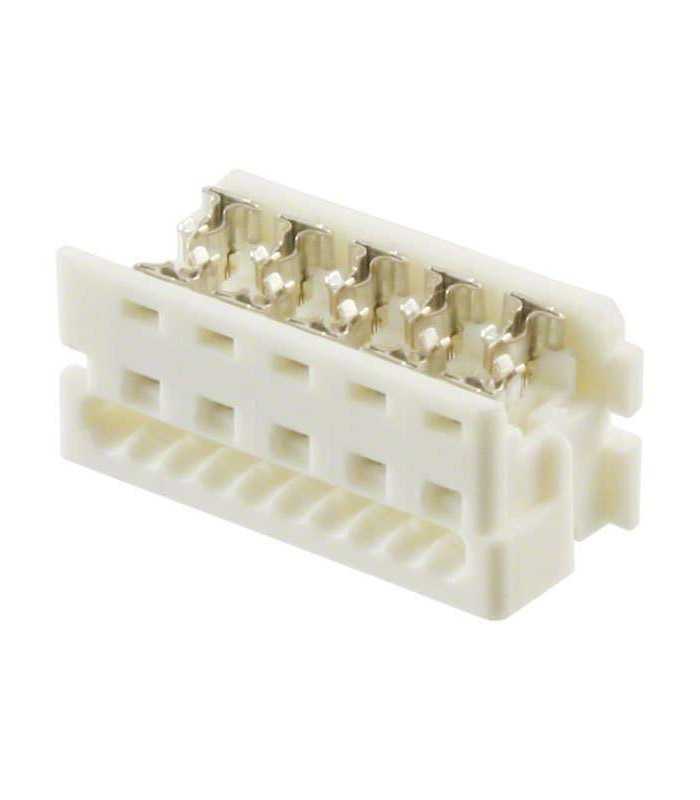

Connector IDC Picoflex Female 10 Way

Errebi code: 16104
Producer code: 90327-0310
Producer: Molex
Read moreShow less
€0.83 (tax excl.)
€1.01 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
12 €0.91 €1.22
27 €0.81 €5.47
51 €0.76 €12.91
102 €0.66 €36.15
252 €0.56 €114.83
501 €0.51 €253.66
1002 €0.46 €558.04
Available in stock 571 Items
The minimum purchase order quantity for the product is 3.
Condition
New
Reference:
RBIDCPX10V
Brand:
Molex
Add to wishlist
Description
Product Range: MOLEX - Picoflex 90327 Series
Contact Termination Type: IDC / IDT
Gender: Receptacle
No. of Contacts: 10
No. of Rows: 2
Pitch Spacing: 1.27mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Colour: White
Connector Mounting Orientation: Cable
Contact Current Rating: 1.2A
Contact Resistance: 10mohm
Contact Termination: IDC / IDT
External Width: 11.43mm
Flammability Rating: UL94V-0
Lead Spacing: 2.54mm
Material: Polyester
Operating Temperature Max: 105°C
Operating Temperature Min: -25°C
Termination Method: IDT
Voltage Rating V AC: 250V
Wire Size AWG Max: 26AWG
Wire Size AWG Min: 28AWG
Withstand Voltage: 750V
Read moreShow less
Product Details
RBIDCPX10V

Data sheet

Product type
Connector body
Serie
IDC
Amperage
1.2A
Material
Polyester
Color
White
Operating temperature
-25°C a +105°C
Flammability
94V-0
Voltage
250V
Kind
Female
Number of poles
10
Number of rows
2
Pitch
1.27 mm
Minimum order quantity
3
Unit Type
pieces

Specific References

UPC
800753538139
Attachments
016104_001_3D .pdf
Download (231.5KB)
016104_002_Drawing.pdf
Download (82.19KB)
