€1.24
(tax excl.)
€1.51
(tax incl.)
Errebi code: 46174
Producer code: DS1017-10MA2
Producer: Connfly
Producer code: DS1017-10MA2
Producer: Connfly

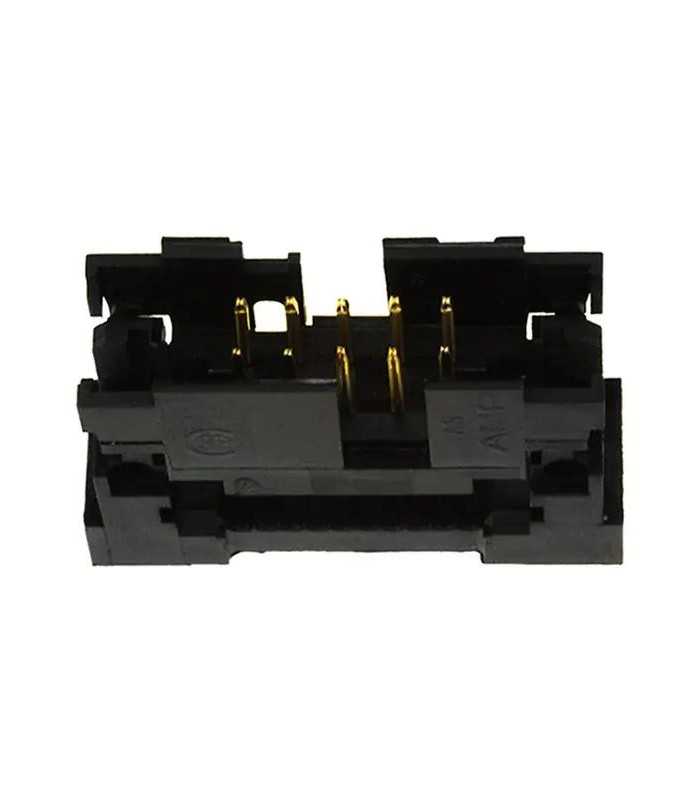

IDC connector male 10 way
Errebi code: 19434
Producer code: 1-111446-4
Producer: TE/Connectivity
Read moreShow lessProducer code: 1-111446-4
Producer: TE/Connectivity
€2.00
(tax excl.)
€2.44
(tax incl.)
Condition
New
Reference:
RBIDC10M
Brand:
Add to wishlist
Product Range: TE - AMP-LATCH Universal I/O Series
Contact Termination Type: IDC / IDT
Gender: Plug
No. of Contacts: 10
No. of Rows: 2
Pitch Spacing: 2.54mm
Contact Plating: Gold
Contact Material: Phosphor Bronze
Approval Bodies: CSA, UL
Connector Mounting Orientation: Cable
Contact Current Rating: 1A
Contact Resistance: 15mohm
Contact Termination: IDC / IDT
Current Rating: 1A
Housing Type: Black thremoplastic
Lead Spacing: 1.27mm
No. of Mating Cycles: 150
Operating Temperature Max: 105°C
Operating Temperature Min: -65°C
Termination Method: IDC
Wire Size AWG Max: 26AWG
Wire Size AWG Min: 28AWG
Withstand Voltage: 1000V
Read moreShow less
Contact Termination Type: IDC / IDT
Gender: Plug
No. of Contacts: 10
No. of Rows: 2
Pitch Spacing: 2.54mm
Contact Plating: Gold
Contact Material: Phosphor Bronze
Approval Bodies: CSA, UL
Connector Mounting Orientation: Cable
Contact Current Rating: 1A
Contact Resistance: 15mohm
Contact Termination: IDC / IDT
Current Rating: 1A
Housing Type: Black thremoplastic
Lead Spacing: 1.27mm
No. of Mating Cycles: 150
Operating Temperature Max: 105°C
Operating Temperature Min: -65°C
Termination Method: IDC
Wire Size AWG Max: 26AWG
Wire Size AWG Min: 28AWG
Withstand Voltage: 1000V
RBIDC10M
Data sheet
- Product type
- Connector
- Serie
- IDC
- Amperage
- 1A
- Material
- Thermoplastic
- Color
- Black
- Operating temperature
- -65°C a +105°C
- Dimensions
- 27,23x8,38x14,48 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 250V
- Contact material
- Phosphor Bronze
- Mounting
- On cable
- Wire range
- 28 - 26 AWG
- Kind
- Male
- Number of poles
- 10
- Number of rows
- 2
- Pitch
- 2.54 mm
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 1
- Unit Type
- piece
