RBCTPBF8V

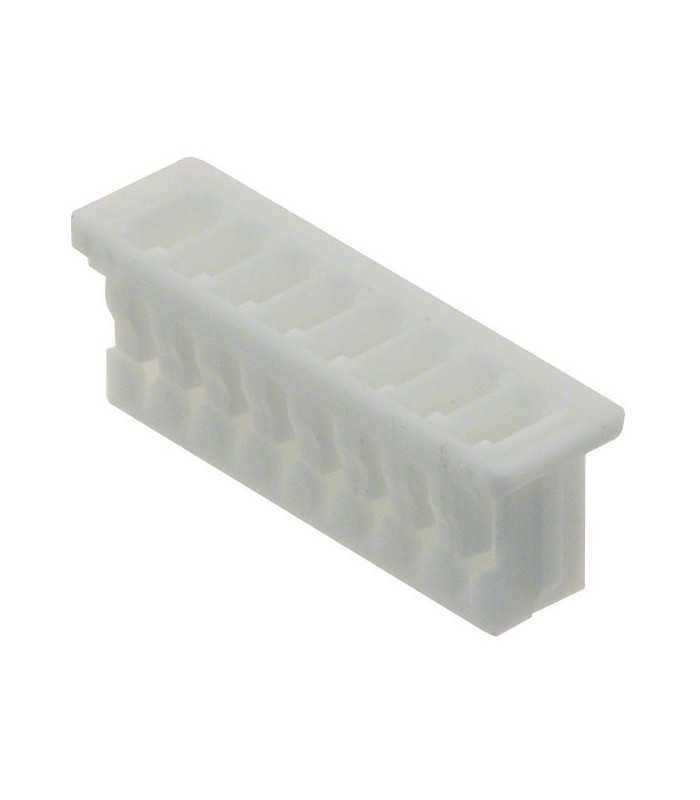

PicoBlade Connector female 8 way

Errebi code: 16993
Producer code: 51021-0800
Producer: Molex
Read moreShow less
€0.07 (tax excl.)
€0.09 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
20 €0.09 €0.00
40 €0.07 €0.68
60 €0.06 €1.28
100 €0.06 €3.00
260 €0.05 €9.98
500 €0.04 €21.35
1000 €0.04 €47.01
Available in stock 4692 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTPBF8V
Brand:
Molex
Add to wishlist
Description
Product Range: MOLEX - PicoBlade 51021 Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 8
No. of Rows: 1
Pitch Spacing: 1.25mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Connector Mounting Orientation: PCB
Contact Termination: Crimp
Current rating: 1A
Dielectric Strength VAC: 250V
External Depth: 3.2mm
External Length / Height: 3.95mm
Housing Type: GF Nylon UL94V-0
Insulation Resistance: 100Mohm
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Termination Method: Crimp
Voltage Rating V AC: 125V
Working Voltage: 125V
Read moreShow less
Product Details
RBCTPBF8V

Data sheet

Product type
Connector body
Serie
PicoBlade - 51021
Amperage
1A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C a +85°C
Flammability
94V-0
Voltage
125V
Mounting
On cable
Kind
Female
Number of poles
8
Number of rows
1
Pitch
1.25 mm
Orientation
180°
Minimum order quantity
20
Unit Type
pieces

Specific References

UPC
800753575653
Attachments
016993_001_3D .pdf
Download (177.67KB)
016993_002_Drawing.pdf
Download (110.48KB)
