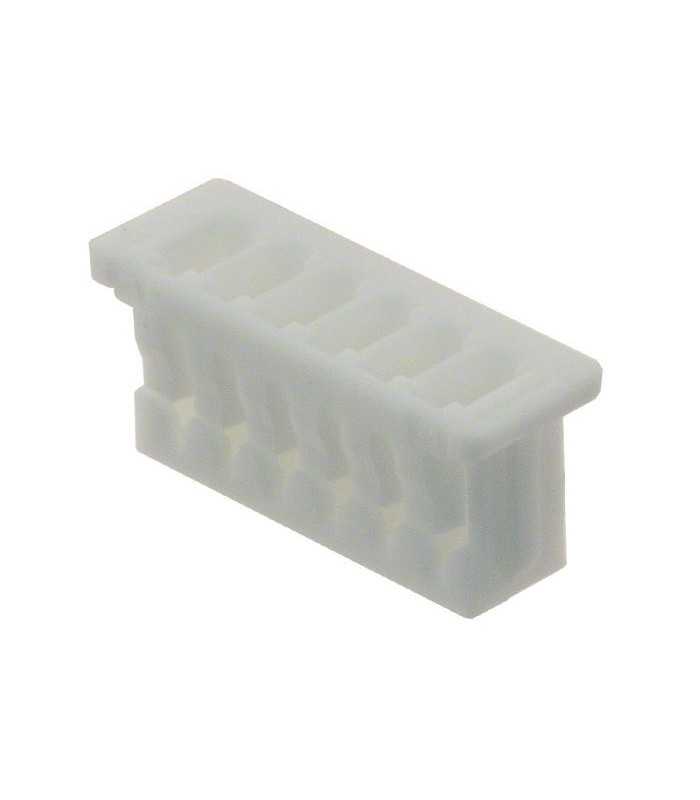

Connector PicoBlade Female 6 Way

Errebi code: 11190
Producer code: Cross Reference 51021-0600
Producer: Cross Reference Molex
Read moreShow less
€0.04 (tax excl.)
€0.05

Discounts for quantities

Quantity Unit price You Save
20 €0.05 €0.00
40 €0.04 €0.39
60 €0.04 €0.73
100 €0.03 €1.71
260 €0.03 €5.70
500 €0.02 €12.20
1000 €0.02 €26.86
Available in stock 14401 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTPBF6V
Add to wishlist
Description
Product Range: MOLEX - PicoBlade 51021 Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 6
No. of Rows: 1
Pitch Spacing: 1.25mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Connector Mounting Orientation: PCB
Contact Termination: Crimp
Current rating: 1A
Dielectric Strength VAC: 250V
External Depth: 3.2mm
External Length / Height: 3.95mm
Housing Type: GF Nylon UL94V-0
Insulation Resistance: 100Mohm
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Termination Method: Crimp
Voltage Rating V AC: 125V
Working Voltage: 125V
Read moreShow less
Product Details
RBCTPBF6V

Data sheet

Product type
Connector body
Serie
PicoBlade - 51021
Amperage
1A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C a +85°C
Flammability
94V-0
Voltage
125V
Kind
Female
Number of poles
6
Number of rows
1
Pitch
1.25 mm
Minimum order quantity
20
Unit Type
pieces

Specific References

UPC
800753750456
