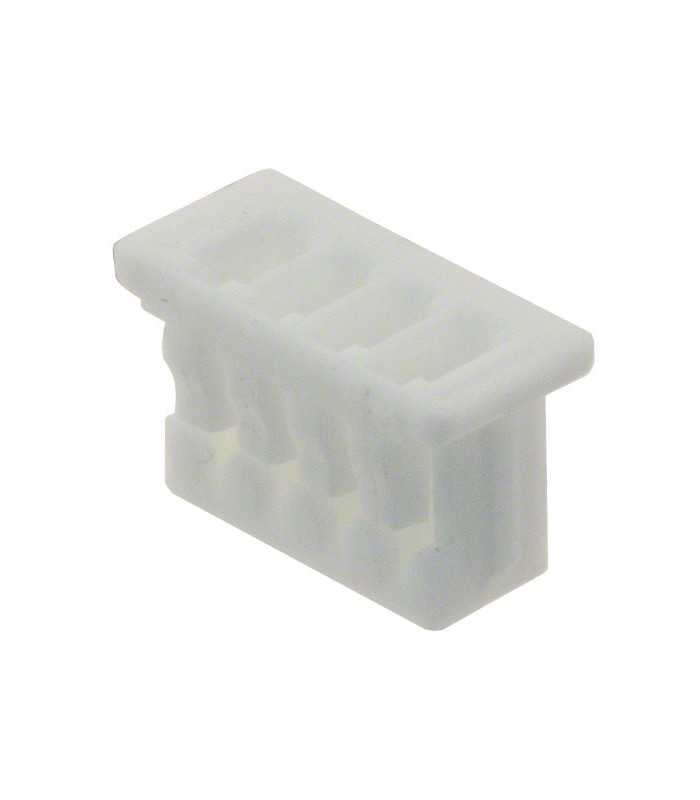

PicoBlade Connector female 4 way

Errebi code: 11191
Producer code: 51021-0400
Producer: Molex
Read moreShow less
€0.04 (tax excl.)
€0.05

Discounts for quantities

Quantity Unit price You Save
30 €0.05 €0.00
60 €0.04 €0.73
120 €0.03 €2.06
270 €0.03 €5.92
510 €0.02 €12.44
1020 €0.02 €27.40
Available in stock 4965 Items
The minimum purchase order quantity for the product is 30.
Condition
New
Reference:
RBCTPBF4V
Brand:
Add to wishlist
Description
Product Range: MOLEX - PicoBlade 51021 Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 4
No. of Rows: 1
Pitch Spacing: 1.25mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Connector Mounting Orientation: PCB
Contact Termination: Crimp
Current rating: 1A
Dielectric Strength VAC: 250V
External Depth: 3.2mm
External Length / Height: 3.95mm
Housing Type: GF Nylon UL94V-0
Insulation Resistance: 100Mohm
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Termination Method: Crimp
Voltage Rating V AC: 125V
Working Voltage: 125V
Read moreShow less
Product Details
RBCTPBF4V

Data sheet

Product type
Connector body
Serie
PicoBlade - 51021
Amperage
1A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C a +85°C
Flammability
94V-0
Voltage
125V
Mounting
On cable
Kind
Female
Number of poles
4
Number of rows
1
Pitch
1.25 mm
Orientation
180°
Minimum order quantity
30
Unit Type
pieces

Specific References

UPC
800753575615
