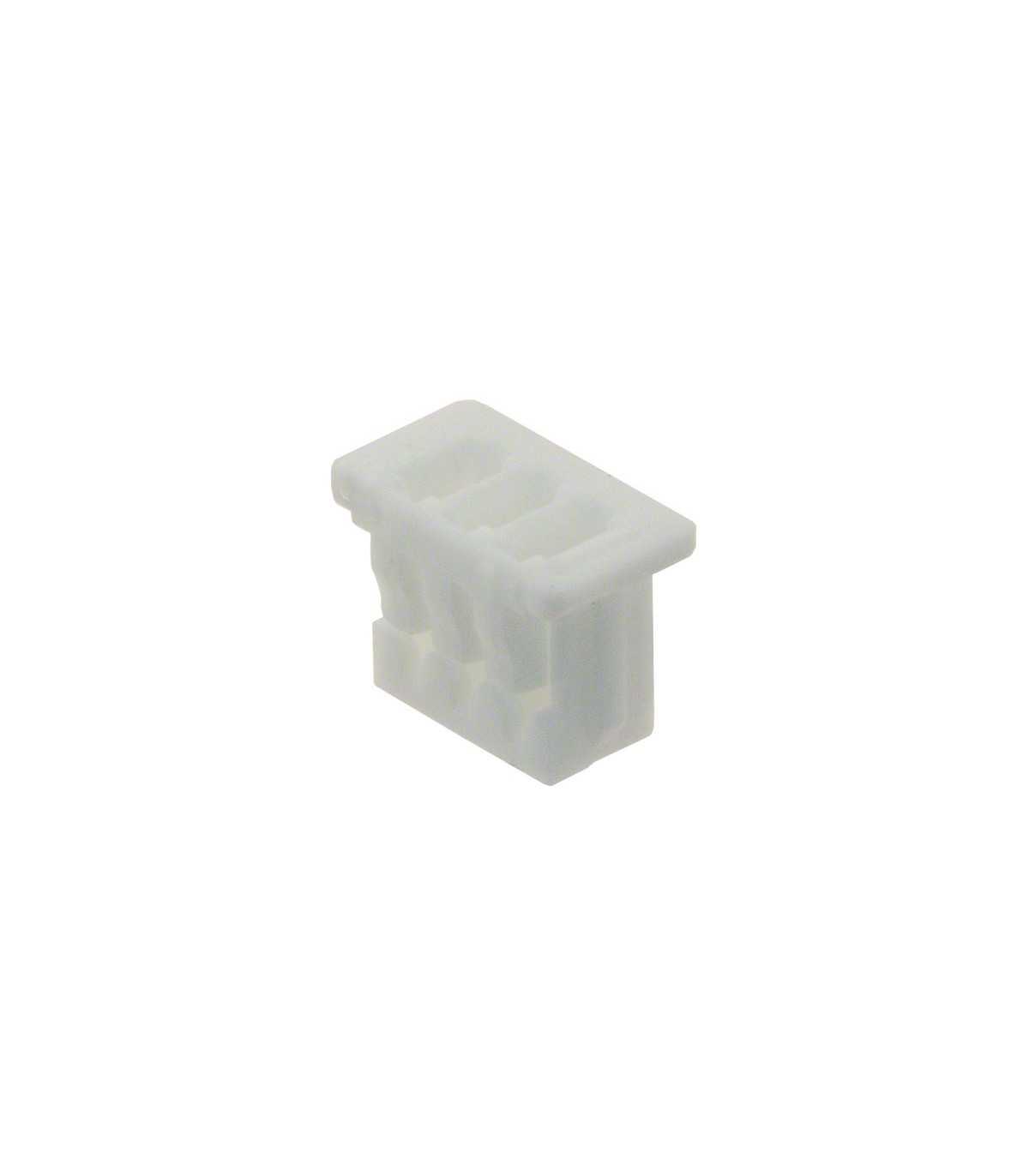

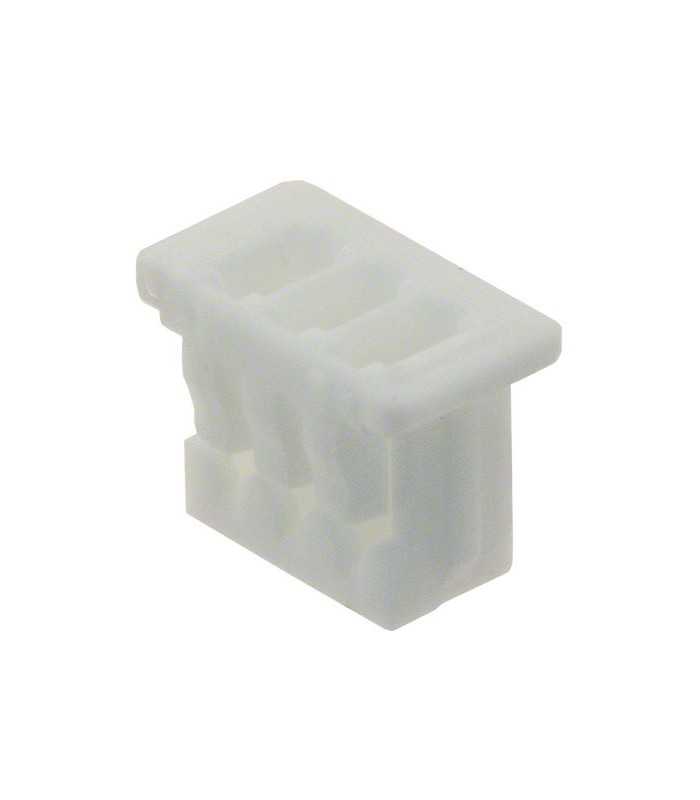

PicoBlade Connector female 3 way

Errebi code: 17801
Producer code: Cross Reference 51021-0300
Producer: Cross Reference Molex
Package: 40 pieces
Note: Quantity 1 corresponds to 40 pieces
€1.60 (tax excl.)
€1.95
(€0.05 / pcs)

Discounts for quantities

Quantity Price You Save
2 €1.46 Up to €0.98
3 €1.27 Up to €2.06
7 €1.07 Up to €6.14
13 €0.98 Up to €12.69
26 €0.88 Up to €27.94
Last items in stock 12 Items
Condition
New product
Reference:
RBCTPBF3V
Add to wishlist
Description
Product Range: MOLEX - PicoBlade 51021 Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 3
No. of Rows: 1
Pitch Spacing: 1.25mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Connector Mounting Orientation: PCB
Contact Termination: Crimp
Current rating: 1A
Dielectric Strength VAC: 250V
External Depth: 3.2mm
External Length / Height: 3.95mm
Housing Type: GF Nylon UL94V-0
Insulation Resistance: 100Mohm
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Termination Method: Crimp
Voltage Rating V AC: 125V
Working Voltage: 125V
Product Details
RBCTPBF3V

Data sheet

Product type
Connector body
Serie
PicoBlade - 51021
Amperage
1A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C a +85°C
Flammability
94V-0
Voltage
125V
Kind
Female
Number of poles
3
Number of rows
1
Pitch
1.25 mm
