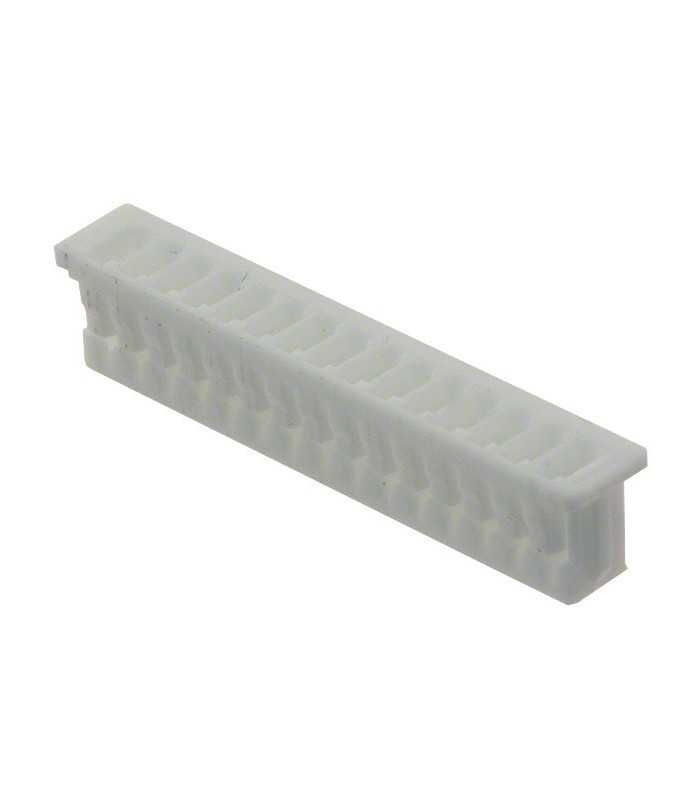

PicoBlade Connector female 15 way
Errebi code: 11115
Producer code: 51021-1500
Producer: Molex
Read moreShow lessProducer code: 51021-1500
Producer: Molex
€0.29
(tax excl.)
€0.35
(tax incl.)
Condition
New
Reference:
RBCTPBF15V
Brand:
Add to wishlist
Product Range: MOLEX - PicoBlade 51021 Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 15
No. of Rows: 1
Pitch Spacing: 1.25mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Connector Mounting Orientation: PCB
Contact Termination: Crimp
Current rating: 1A
Dielectric Strength VAC: 250V
External Depth: 3.2mm
External Length / Height: 3.95mm
Housing Type: GF Nylon UL94V-0
Insulation Resistance: 100Mohm
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Termination Method: Crimp
Voltage Rating V AC: 125V
Working Voltage: 125V
Read moreShow less
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 15
No. of Rows: 1
Pitch Spacing: 1.25mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Connector Mounting Orientation: PCB
Contact Termination: Crimp
Current rating: 1A
Dielectric Strength VAC: 250V
External Depth: 3.2mm
External Length / Height: 3.95mm
Housing Type: GF Nylon UL94V-0
Insulation Resistance: 100Mohm
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Termination Method: Crimp
Voltage Rating V AC: 125V
Working Voltage: 125V
RBCTPBF15V
Data sheet
- Product type
- Connector body
- Serie
- PicoBlade - 51021
- Amperage
- 1A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -40°C a +85°C
- Flammability
- 94V-0
- Voltage
- 125V
- Mounting
- On cable
- Kind
- Female
- Number of poles
- 15
- Number of rows
- 1
- Pitch
- 1.25 mm
- Orientation
- 180°
- Minimum order quantity
- 7
- Unit Type
- pieces
Specific References
- UPC
- 800753575288
