RBCTMLLT6V

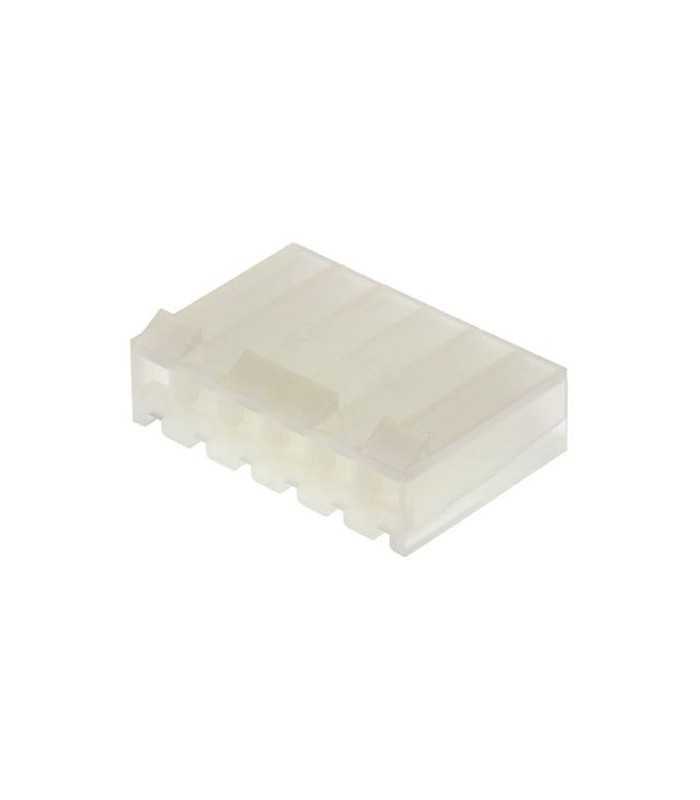

Connector KK 396 Series female 6 way

Errebi code: 15314
Producer code: Cross Reference 09-50-3061
Producer: Cross Reference Molex
Read moreShow less
€0.10 (tax excl.)
€0.12 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
20 €0.12 €0.00
40 €0.10 €0.97
60 €0.09 €1.83
100 €0.08 €4.28
260 €0.07 €14.26
500 €0.06 €30.50
1000 €0.05 €67.16
Available in stock 1183 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTMLLT6V
Brand:
ErreBi Group
Add to wishlist
Description
Series: KK
No. of Positions: 6
Pitch Spacing: 3.96mm
For Use With: 2478 Crimp Terminals for 18-24 AWG, 2578 Crimp Terminals for 22-26 AWG
Connector Mounting Orientation: PC Board
Contact Resistance: 20mohm
Contact Termination: Crimp
Current rating: 5A
De-mating Force: 1N
Dielectric Strength: 1500V/m
Gender: Receptacle
Material: White Nylon UL94V-2 / Black Nylon UL94V-0
No. of Contacts: 6
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Product Range: MOLEX - KK 2139 Series
Termination Method: Crimp
Voltage Rating V AC: 250V
Read moreShow less
Product Details
RBCTMLLT6V

Data sheet

Product type
Connector body
Serie
KK 396 - 2139
Amperage
5A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
250V
Kind
Female
Number of poles
6
Number of rows
1
Pitch
3.96 mm
Minimum order quantity
20
Unit Type
pieces

Specific References

UPC
800753614048
Attachments
015314_001_3D .pdf
Download (151.59KB)
015314_002_Drawing.pdf
Download (308.1KB)
