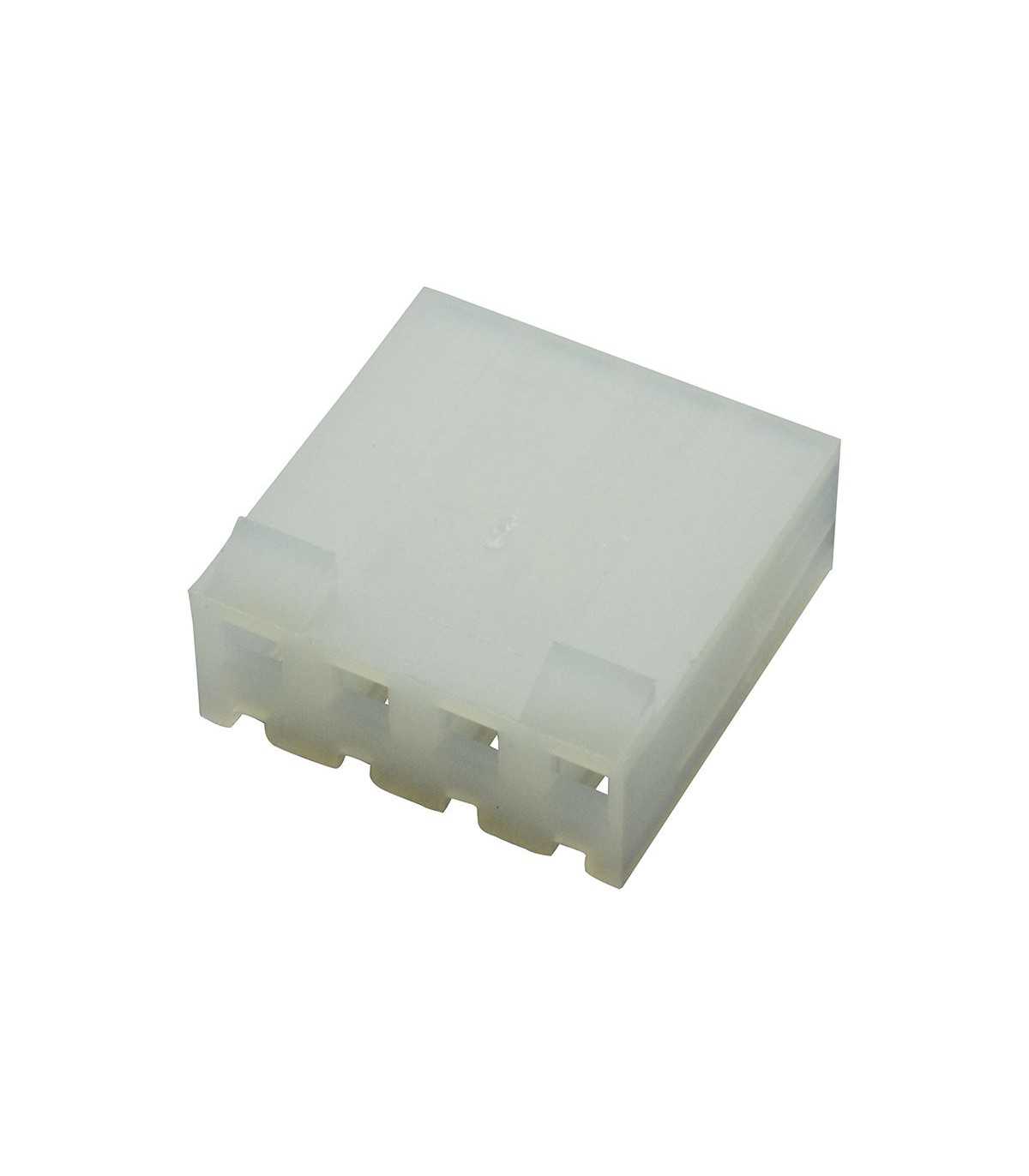

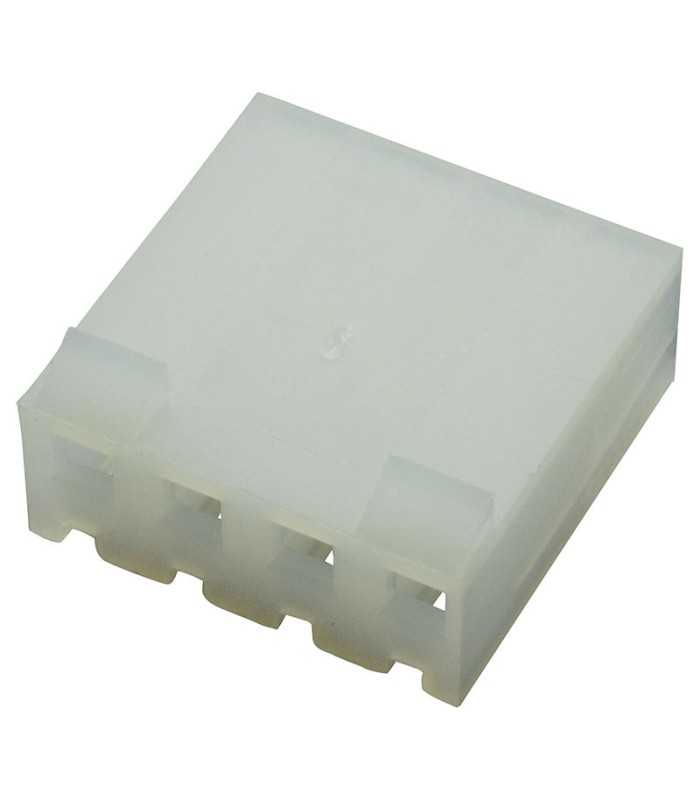

KK 396 Series 2139 Connector female 4 way

Errebi code: 18707
Producer code: Cross Reference 09-50-3041
Producer: Cross Reference Molex
Package: 30 pieces
Note: Quantity 1 corresponds to 30 pieces
€1.50 (tax excl.)
€1.83
(€0.06 / pcs)

Discounts for quantities

Quantity Price You Save
2 €1.37 Up to €0.92
4 €1.19 Up to €2.57
9 €1.01 Up to €7.40
17 €0.92 Up to €15.56
34 €0.82 Up to €34.25
Product available for orders
Condition
New product
Reference:
RBCTMLLT4V
Add to wishlist
Description
Series: KK
No. of Positions: 4
Pitch Spacing: 3.96mm
For Use With: 2478 Crimp Terminals for 18-24 AWG, 2578 Crimp Terminals for 22-26 AWG
Connector Mounting Orientation: PC Board
Contact Resistance: 20mohm
Contact Termination: Crimp
Current rating: 5A
De-mating Force: 1N
Dielectric Strength: 1500V/m
Gender: Receptacle
Material: White Nylon UL94V-2 / Black Nylon UL94V-0
No. of Contacts: 4
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Product Range: MOLEX - KK 2139 Series
Termination Method: Crimp
Voltage Rating V AC: 250V
Product Details
RBCTMLLT4V

Data sheet

Product type
Connector body
Serie
KK 396 - 2139
Amperage
5A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
250V
Mounting
For cable
Kind
Female
Number of poles
4
Number of rows
1
Pitch
3.96 mm
Orientation
180°
