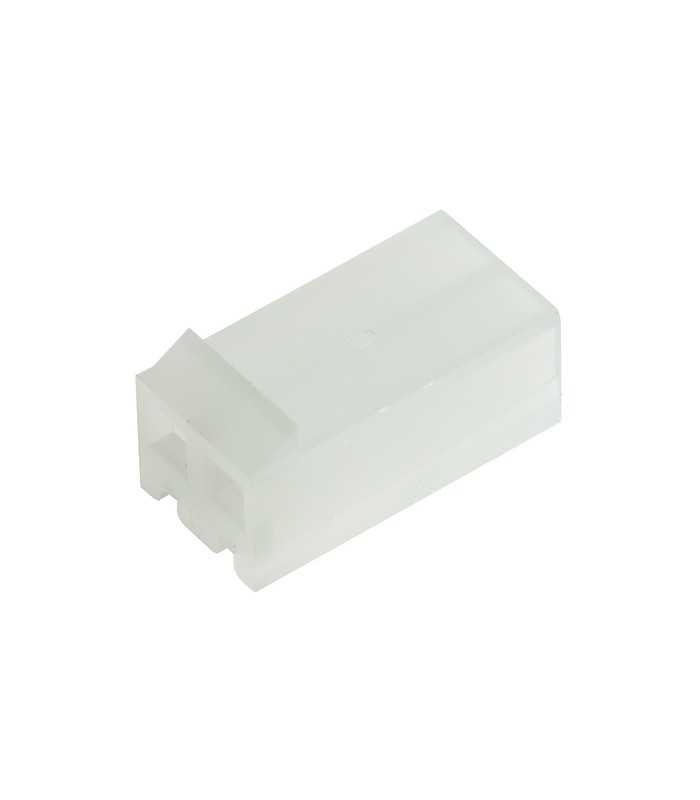

KK 396 Series 2139 Connector female 2 way

KK 396 Series 2139 Connector female 2 way

Errebi code: 15702
Producer code: 09-50-3021
Producer: Molex
Package: 50 pieces
Note: Quantity 1 corresponds to 50 pieces
€1.50 (tax excl.)
€1.83
(€0.04 / pcs)

Discounts for quantities

Quantity Price You Save
2 €1.37 Up to €0.92
3 €1.19 Up to €1.93
6 €1.01 Up to €4.94
11 €0.92 Up to €10.07
21 €0.82 Up to €21.16
Last items in stock 13 Items
Share
QR code
Condition
New product
Reference:
RBCTMLLT2V
Brand:
Molex
Add to wishlist
Description
Series: KK
No. of Positions: 2
Pitch Spacing: 3.96mm
For Use With: 2478 Crimp Terminals for 18-24 AWG, 2578 Crimp Terminals for 22-26 AWG
Connector Mounting Orientation: PC Board
Contact Resistance: 20mohm
Contact Termination: Crimp
Current rating: 5A
De-mating Force: 1N
Dielectric Strength: 1500V/m
Gender: Receptacle
Material: White Nylon UL94V-2 / Black Nylon UL94V-0
No. of Contacts: 2
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Product Range: MOLEX - KK 2139 Series
Termination Method: Crimp
Voltage Rating V AC: 250V
Product Details
RBCTMLLT2V

Data sheet

Product type
Connector body
Serie
KK 396 - 2139
Amperage
5A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-40°C to +105°C
Flammability
94V-2
Voltage
250V
Kind
Female
Number of poles
2
Number of rows
1
Pitch
3.96 mm
Attachments
015702_001_3D .pdf
Download (0)
015702_002_Drawing.pdf
Download (0)
