Errebi code: 58188Producer code: 51065-0400Producer: Molex

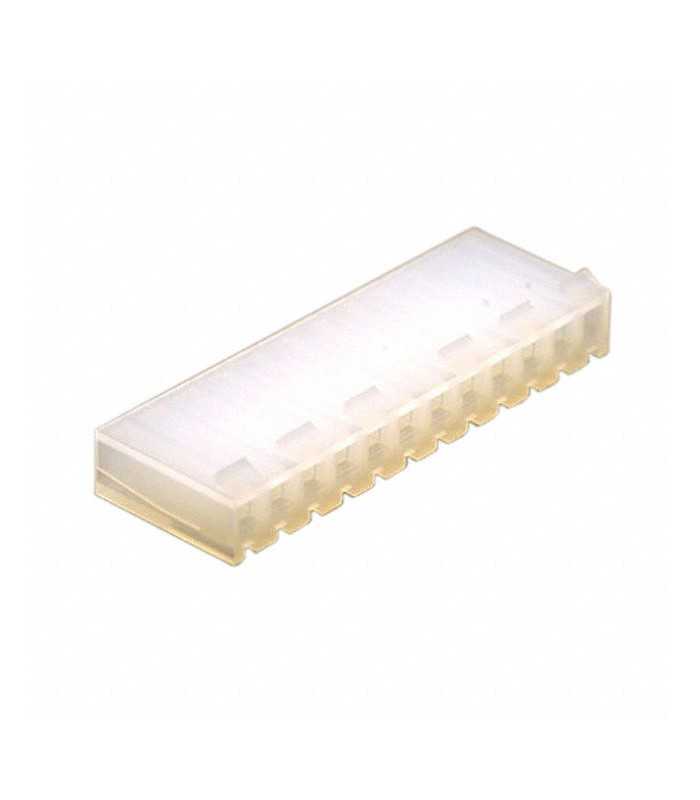

KK 396 Series 2139 Connector female 12 way
Errebi code: 15299
Producer code: Cross Reference 09-50-3121
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross Reference 09-50-3121
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
€0.16
(tax excl.)
€0.20
(tax incl.)
Condition
New
Reference:
RBCTMLLT12V
Brand:
Add to wishlist
Series: KK
No. of Positions: 12
Pitch Spacing: 3.96mm
For Use With: 2478 Crimp Terminals for 18-24 AWG, 2578 Crimp Terminals for 22-26 AWG
Connector Mounting Orientation: PC Board
Contact Resistance: 20mohm
Contact Termination: Crimp
Current rating: 5A
De-mating Force: 1N
Dielectric Strength: 1500V/m
Gender: Receptacle
Material: White Nylon UL94V-2 / Black Nylon UL94V-0
No. of Contacts: 12
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Product Range: MOLEX - KK 2139 Series
Termination Method: Crimp
Voltage Rating V AC: 250V
Read moreShow less
No. of Positions: 12
Pitch Spacing: 3.96mm
For Use With: 2478 Crimp Terminals for 18-24 AWG, 2578 Crimp Terminals for 22-26 AWG
Connector Mounting Orientation: PC Board
Contact Resistance: 20mohm
Contact Termination: Crimp
Current rating: 5A
De-mating Force: 1N
Dielectric Strength: 1500V/m
Gender: Receptacle
Material: White Nylon UL94V-2 / Black Nylon UL94V-0
No. of Contacts: 12
No. of Rows: 1
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Product Range: MOLEX - KK 2139 Series
Termination Method: Crimp
Voltage Rating V AC: 250V
RBCTMLLT12V
Data sheet
- Product type
- Connector body
- Serie
- KK 396 - 2139
- Amperage
- 5A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -40°C to +105°C
- Flammability
- 94V-2
- Voltage
- 250V
- Kind
- Female
- Number of poles
- 12
- Number of rows
- 1
- Pitch
- 3.96 mm
- Minimum order quantity
- 9
- Unit Type
- pieces
Specific References
- UPC
- 800753616301
