RBCTMB6VPF

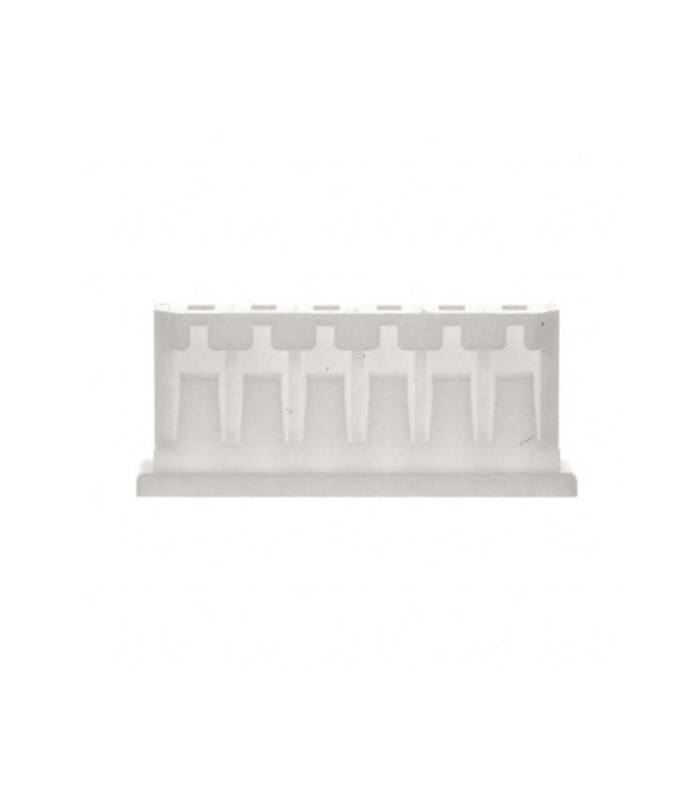

MicroBlade Connector male 6 way

ErreBi code: 17479
Producer code: Cross Reference 51004-0600
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.11 (tax excl.)
€0.13 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
18 €0.12 €0.24
27 €0.11 €0.72
54 €0.10 €1.81
108 €0.09 €5.07
252 €0.07 €15.22
504 €0.07 €33.82
1008 €0.06 €74.40
Available in stock 1294 Items
The minimum purchase order quantity for the product is 9.
Condition
New
Reference:
RBCTMBPF6V
Brand:
ErreBi Group
Add to wishlist
Description

The connector is a compact and reliable electrical interconnection component, designed for electronic applications where reduced dimensions, stable connections and consistent electrical performance over time are required.
It is a series widely used in the fields of electronics, light automation and compact devices, thanks to its balance between miniaturization, robustness and ease of use.


Operation


The connector is designed for use with crimped terminals on cable, which are inserted into the insulating housing until the correct mechanical locking is achieved.
The internal retention system keeps the contacts firmly in place, preventing accidental pull-out and ensuring low contact resistance.


Advantages


  • 1) Compact size: ideal for applications with limited space

  • 2) Electrical reliability: stable and repeatable connections over time

  • 3) Mechanical safety: effective terminal retention system

  • 4) Easy assembly: compatible with standard crimping processes

  • 5) Versatile use: suitable for signals and low-current power supply

  • 6) Organized wiring: perfect for modular systems and structured cabling

    • Technical characteristics


  • Number of positions: 6 positions

  • Pitch: 2 mm

  • Number of rows: 1 row

  • Mounting style: Cable mount

  • Commercial name: MicroBlade

  • Wire size: 30-24 AWG

  • Minimum operating temperature: -25 °C

  • Maximum operating temperature: +105 °C

  • Current rating: 2 A

  • Voltage rating: 125 V

  • Flammability rating: UL 94 V-0

  • Color: Natural

  • Material: Nylon 66

  • Weight: 1 g

    • Read moreShow less
    Product Details
    RBCTMBPF6V

    Data sheet

    Product type
    Connector body
    Amperage
    2A
    Material
    PA (Polyamide, Nylon)
    Color
    Neutral
    Operating temperature
    -25°C a +105°C
    Flammability
    94V-0
    Voltage
    125V
    Mounting
    On cable
    Kind
    Male
    Number of poles
    6
    Number of rows
    1
    Pitch
    2.00 mm
    Orientation
    180°
    Minimum order quantity
    9
    Unit Type
    pieces
    Attachments
    017479_001_DATASHEET.pdf
    Download (371.54KB)
