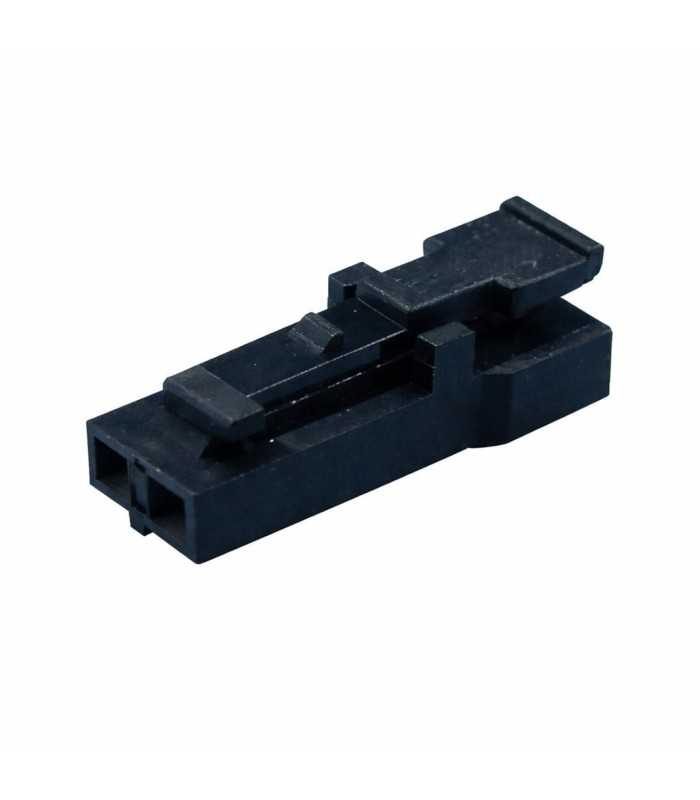

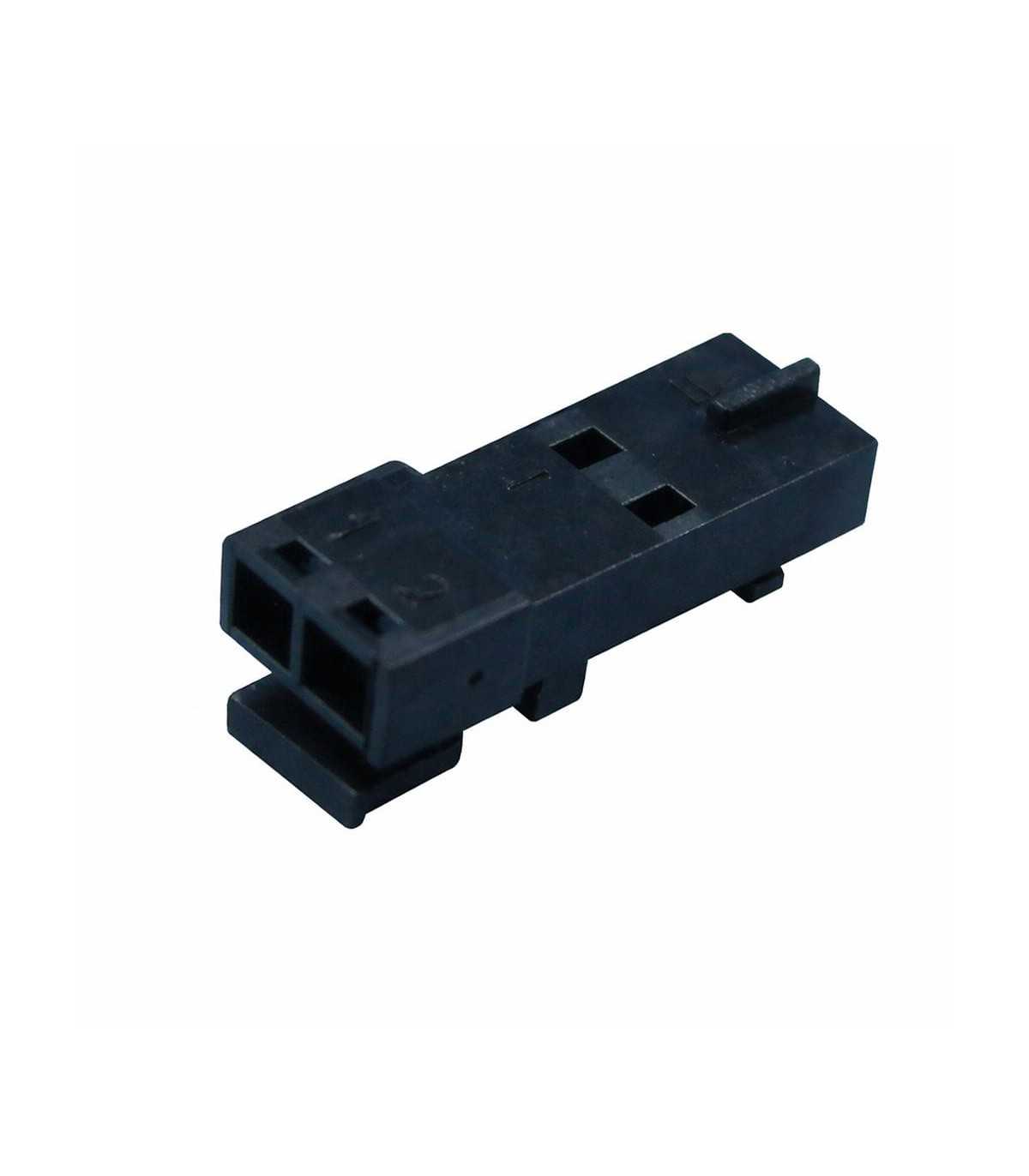

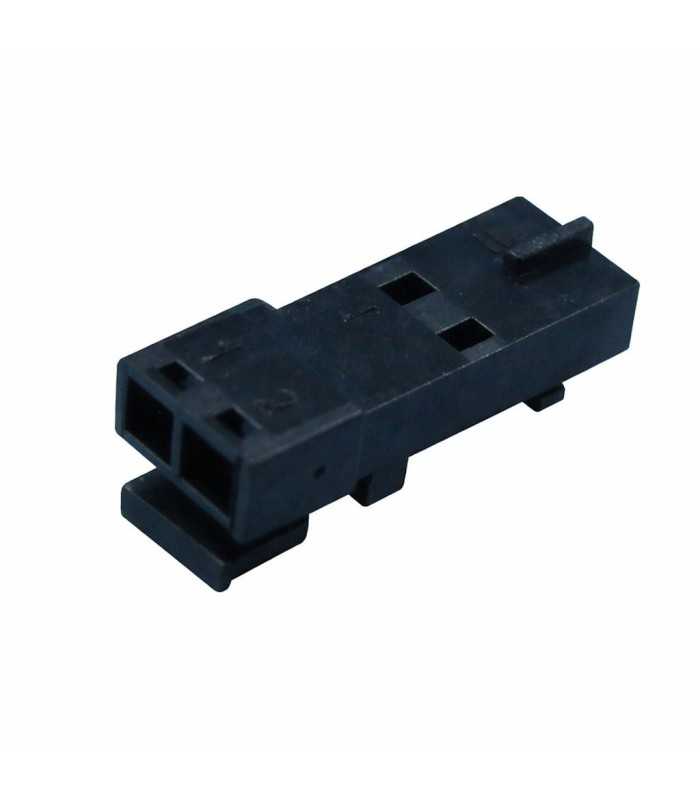

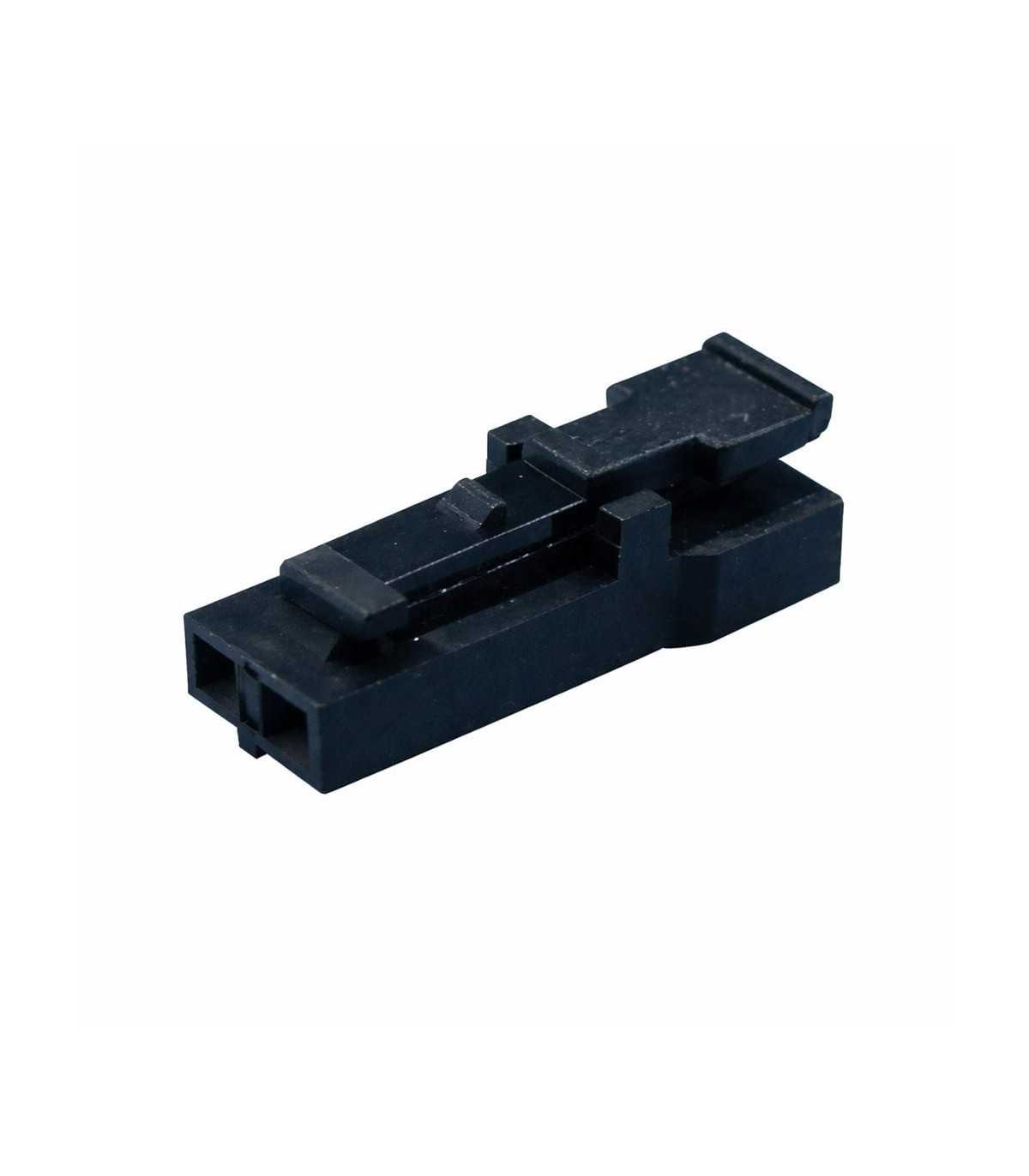

Modu MTE Connectors male 2 way
Modu MTE Connectors male 2 way
Modu MTE Connectors male 2 way
Modu MTE Connectors male 2 way

Modu MTE Connectors male 2 way

Errebi code: 66473
Codice produttore: 50-57-9402 Cross Reference
Productor: Molex Cross Reference
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.08 (tax excl.)
€0.10 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
40 €0.08 €0.78
60 €0.07 €1.46
100 €0.06 €3.42
260 €0.05 €11.42
500 €0.05 €24.40
1000 €0.04 €53.68
Available in stock 758 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTMMTEPF2VL
Brand:
ErreBi Group
Add to wishlist
Description

The connector, belonging to the MODU MTE series, is an electrical connection component designed to ensure contact stability, mechanical safety and electrical continuity in industrial and electronic applications.
This connector is particularly suitable for applications where space is limited but electrical and mechanical performance must remain consistent over time, even in the presence of vibrations or repeated connection cycles.


Operation


The connector is designed for use with crimped terminals on cable, which are inserted into the insulating housing until the correct mechanical locking is achieved.
The internal retention system keeps the contacts firmly in place, preventing accidental pull-out and ensuring low contact resistance and a stable electrical connection over time.


Advantages


  • 1) High electrical reliability: stable connections for signals and power supply.

  • 2) Mechanical robustness: designed to withstand vibrations and operational stress.

  • 3) Easy assembly: compatible with standard crimping processes.

  • 4) Organized wiring: ideal for modular systems and structured wiring.

  • 5) Versatile use: suitable for numerous industrial and electronic applications.

    • Technical characteristics


  • Series: Modu II MTE

  • Product type: Connector

  • Gender: male

  • Number of contacts: 2

  • Number of rows: 1

  • Pitch: 2.54 mm

  • Color: Black

  • Connector mounting orientation: straight (180°)

  • Flammability rating: UL94V-0

  • Material: Thermoplastic

  • Maximum operating temperature: +105 °C

  • Minimum operating temperature: -40 °C

  • Current rating: 3 A

  • Rated voltage: 250 V

    • Read moreShow less
    Product Details
    RBCTMMTEPF2VL

    Data sheet

    Product type
    Connector body
    Serie
    Modu MTE
    Amperage
    3A
    Material
    Thermoplastic
    Color
    Black
    Operating temperature
    -40°C to +105°C
    Flammability
    94V-0
    Voltage
    250V
    Mounting
    On cable
    Kind
    Male
    Number of poles
    2
    Number of rows
    1
    Pitch
    2.54 mm
    Orientation
    180°
    Minimum order quantity
    20
    Unit Type
    pieces
    Attachments
    066473_001_DATASHEET.pdf
    Download (363.95KB)
