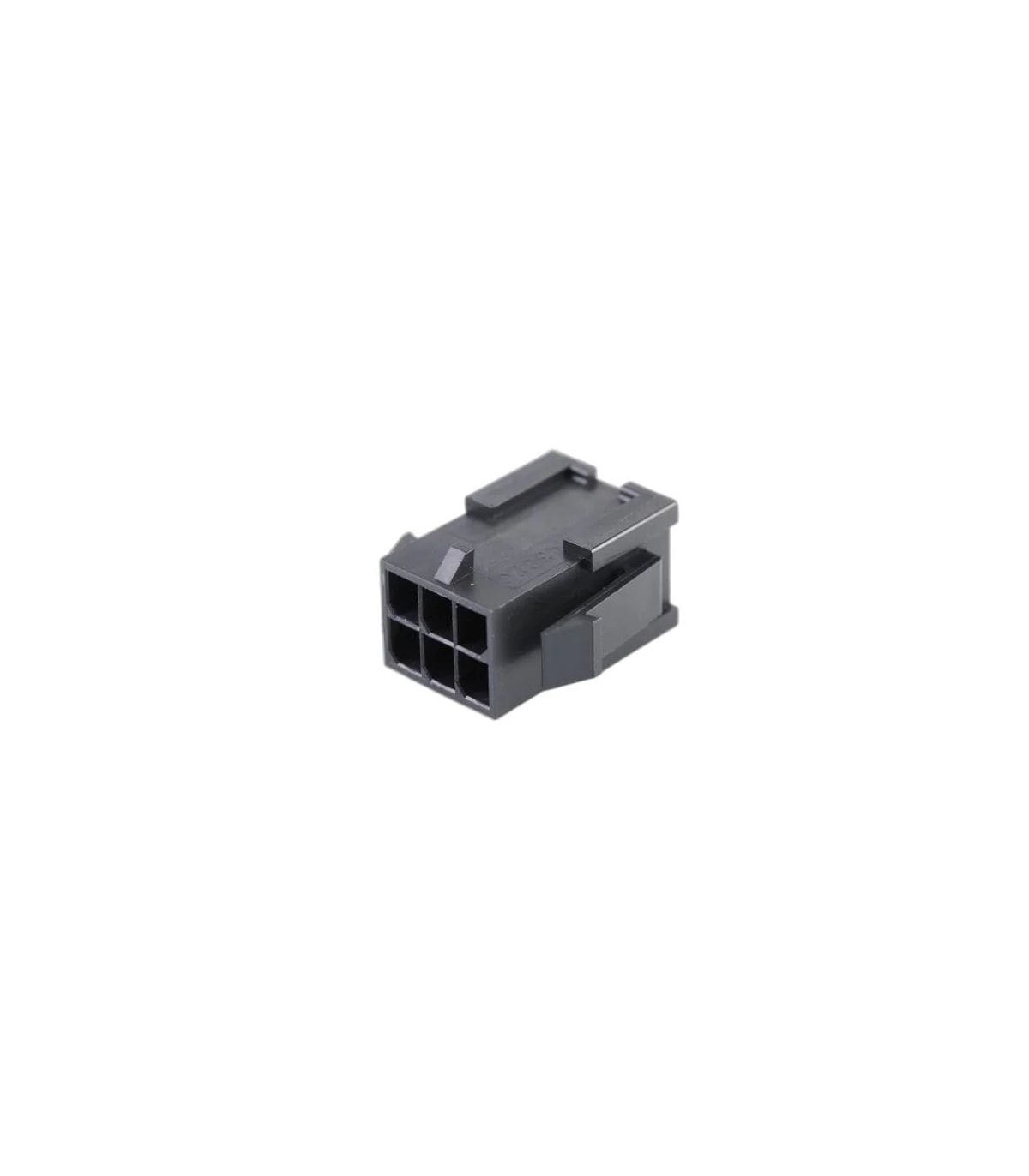

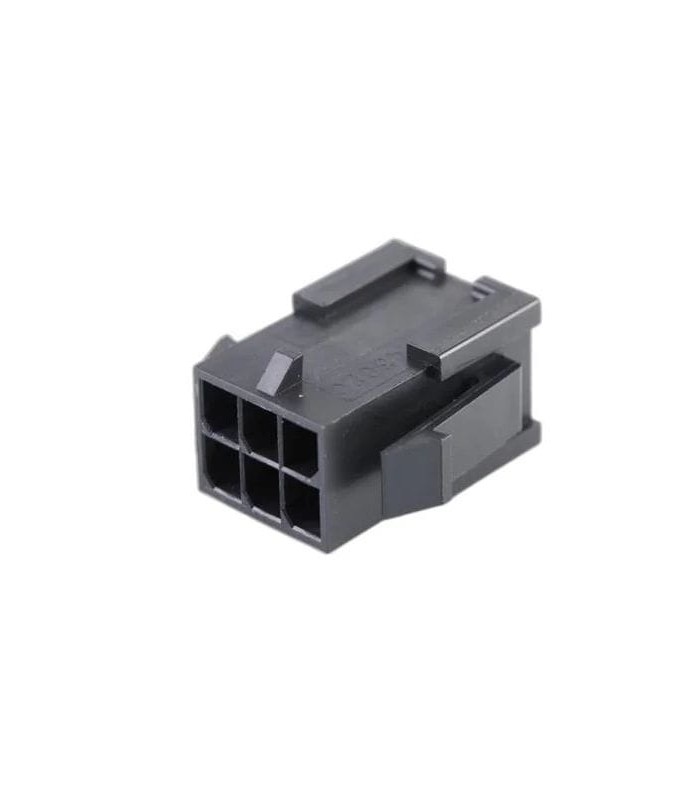

Micro Fit Connector female 3X2 way with panel fixing flap

Micro Fit Connector female 3X2 way with panel fixing flap

Errebi code: 62246
Producer code: Cross Reference 43020-0600
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.40 (tax excl.)
€0.49 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.44 €0.49
25 €0.39 €2.44
50 €0.37 €6.10
100 €0.32 €17.08
250 €0.27 €54.90
500 €0.24 €122.00
1000 €0.22 €268.40
Available in stock 2746 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMFPM3X2VAF
Brand:
ErreBi Group
Add to wishlist
Description

The 3.00 mm pitch connector is designed to provide reliable, compact and safe electrical connections in electronic and industrial applications.


Operation


Each housing is made of PA66 UL94 V-0 polyamide, a thermoplastic material with high mechanical strength and excellent self-extinguishing properties, ensuring stability even in environments subject to thermal stress or vibrations.
The contacts are inserted by crimping and then locked into the connector body, forming a stable interface with low contact resistance.
The side clip locking system ensures a secure connection to the male counterpart, preventing accidental disconnections during use or transport.


Typical Applications


  • 1) Electronic equipment and control modules.

  • 2) Electrical panels and signal distribution systems.

  • 3) Industrial automation and sensor/actuator systems.

  • 4) PCB boards, power and supply modules.

  • 5) Civil or industrial installations requiring reliable and replaceable connections.

    • Technical Specifications


  • Gender: female

  • Pitch: 3.00 mm

  • Number of poles: 6

  • Material: PA66 polyamide

  • Flammability: UL94 V-0

  • Rated voltage: 300 V

  • Current rating: 5 A

  • Operating temperature: -25 / +105 °C

  • Locking system: integrated side clips

  • Mounting orientation: straight (180°)

  • Contact material: tin-plated brass

  • Weight: 2 g

    • Read moreShow less
    Product Details
    RBCTMFPM3X2VAF

    Data sheet

    Product type
    Connector body
    Serie
    Micro-Fit 3.0 - 43020
    Amperage
    5A
    Material
    Polyester
    Color
    Black
    Operating temperature
    -40°C to +105°C
    Flammability
    94V-0
    Voltage
    350V
    Mounting
    On cable
    Wire range
    20 - 26 AWG
    Kind
    Female
    Number of poles
    6
    Number of rows
    2
    Pitch
    3.00 mm
    Orientation
    180°
    Minimum order quantity
    5
    Unit Type
    pieces
    Attachments
    062246_001_DATASHEET.pdf
    Download (1.56MB)
