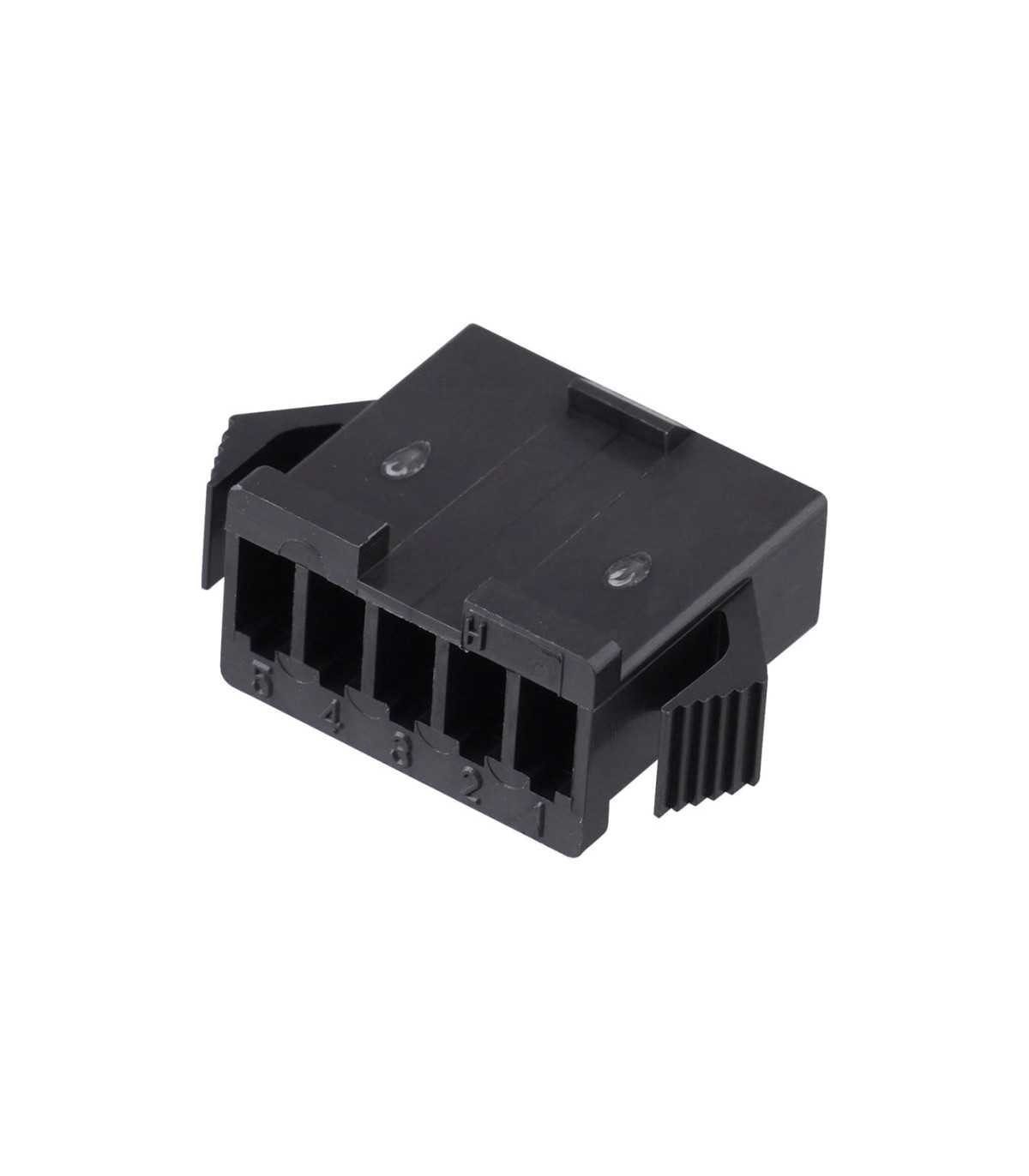

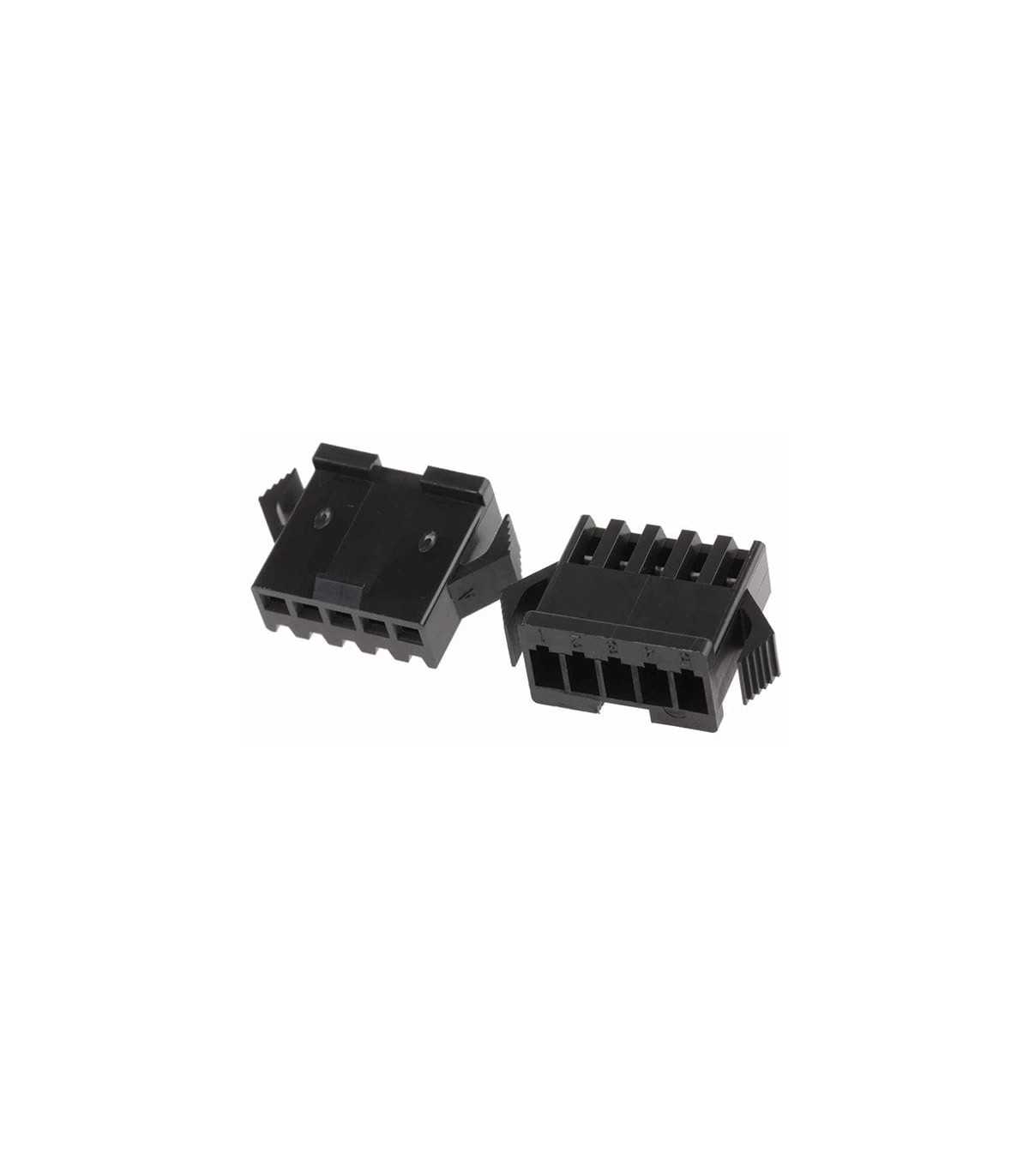

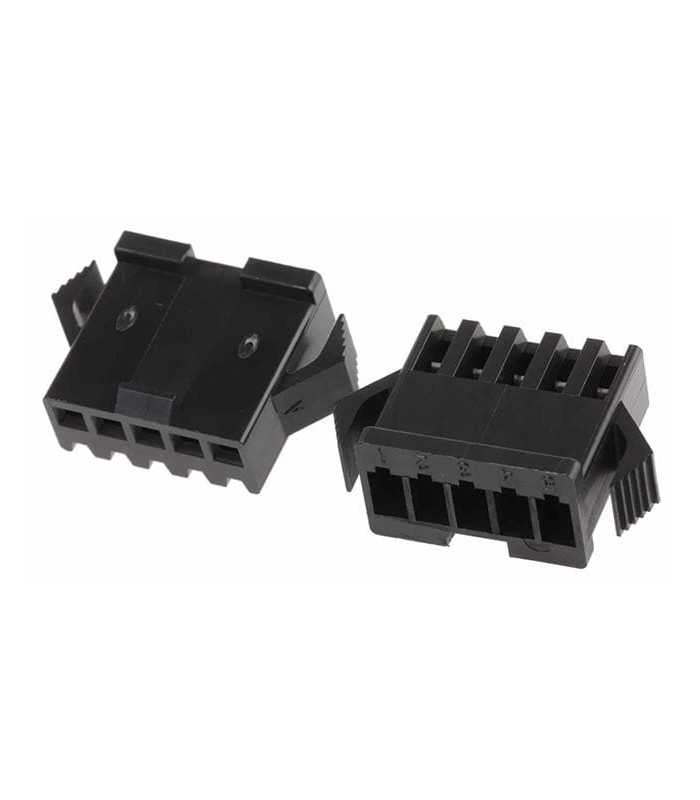

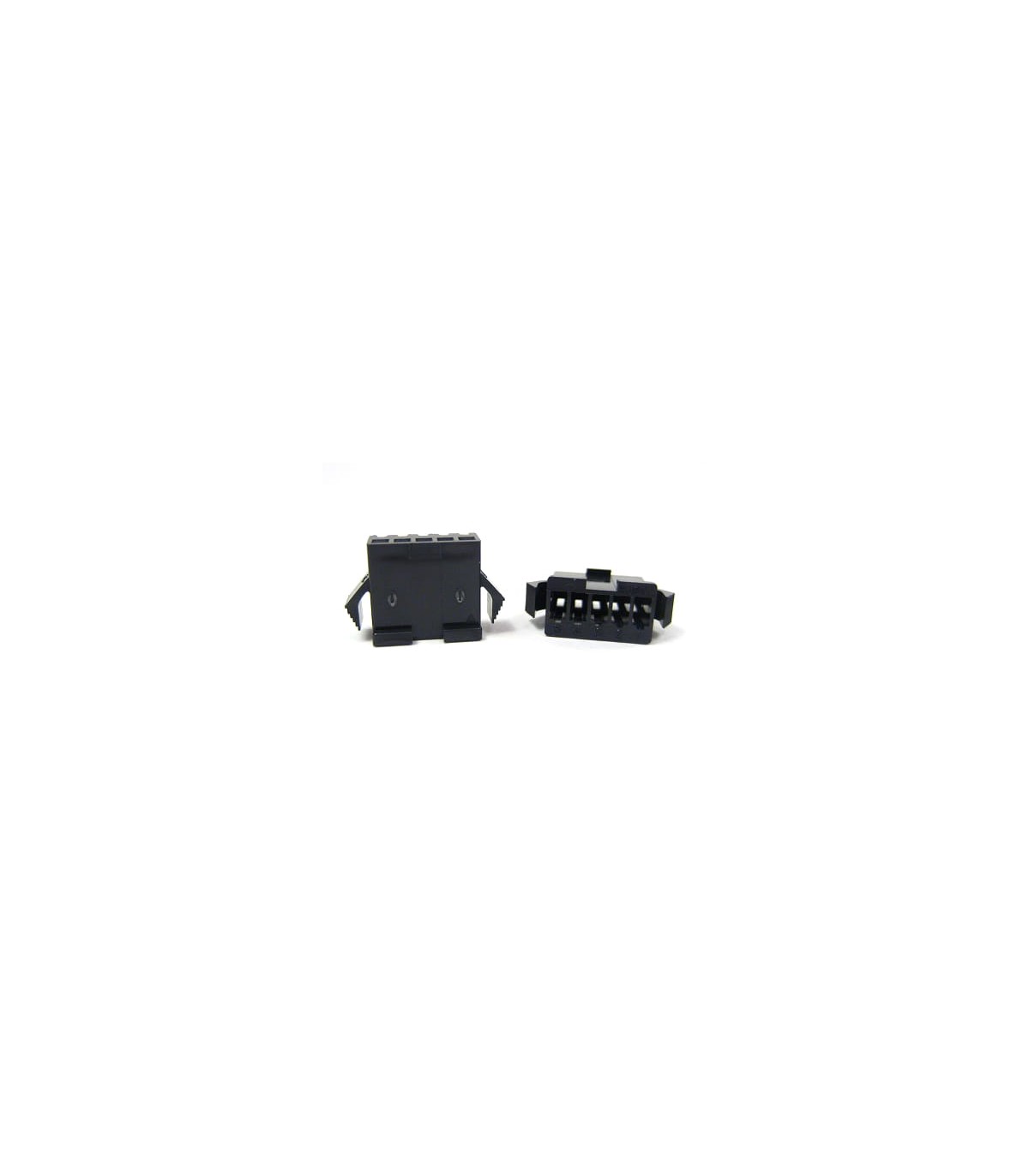

SM Connector male 5 way black
SM Connector male 5 way black
SM Connector male 5 way black
SM Connector male 5 way black
SM Connector male 5 way black
SM Connector male 5 way black

SM Connector male 5 way black

Errebi code: 40950
Producer code: Cross Reference SMP-05V-BC
Producer: Cross Reference Japan Solderless Terminals
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.19 (tax excl.)
€0.23 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
30 €0.19 €1.39
50 €0.17 €2.90
100 €0.15 €8.11
250 €0.13 €26.08
500 €0.12 €57.95
1000 €0.10 €127.49
Available in stock 2391 Items
The minimum purchase order quantity for the product is 10.
Condition
New
Reference:
RBCTSMPF5V
Brand:
ErreBi Group
Add to wishlist
Description
Number of positions: 5 positions
Pitch: 2.5 mm
Number of rows: 1 row
Mounting angle: Straight
Contact plating: Tin
Series: SM
Wire section: 28 AWG to 22 AWG
Minimum operating temperature: - 25 °C
Maximum operating temperature: + 85 °C
Contact material: Phosphor bronze
Amperage: 3 A
Flammability: UL94V-0
Color: Black
Material: Polyamide (PA)
Rated voltage: 250 V
Read moreShow less
Product Details
RBCTSMPF5V

Data sheet

Product type
Connector body
Serie
SM
Amperage
3A
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-25°C a +85°C
Flammability
94V-0
Voltage
250V
Contact material
Phosphor Bronze
Mounting
On cable
Wire range
28 - 22 AWG
Kind
Male
Number of poles
5
Number of rows
1
Pitch
2.50 mm
Orientation
180°
Contact plating
Tin
Minimum order quantity
10
Unit Type
pieces
