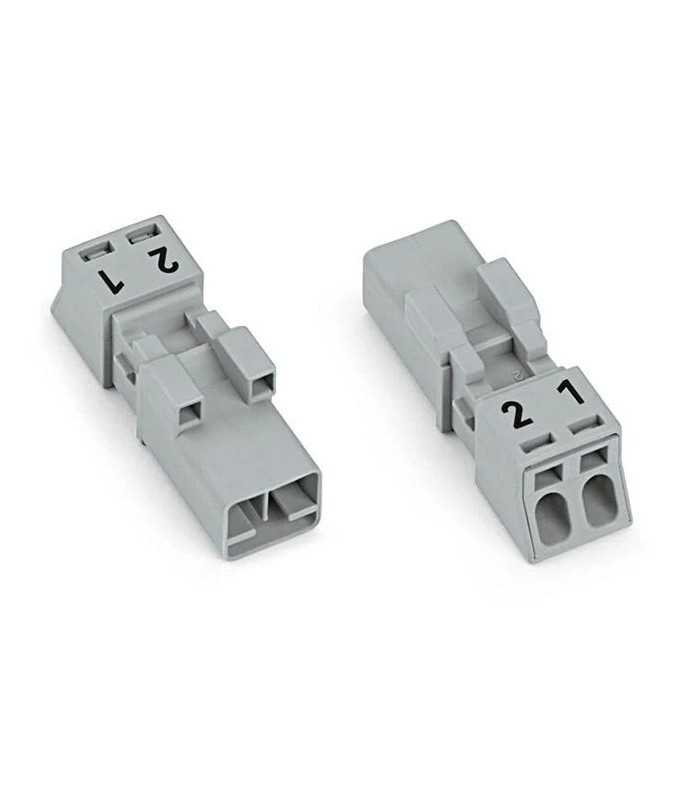

Wago connector Female 2 way Gray

Ratings for IEC / EN 60664-1
- Rating for: IEC / EN 60664-1
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated current: 16 A
- Key (rating): (III / 3) ? Overvoltage category III / degree of emissions 3

Approvals for UL 1977
- Rated voltage according to UL 1977 (factory wiring only): 600 V
- Rated current according to UL 1977 (factory wiring only): 14 A

Connection data
- Connection technique: Push-in CAGE CLAMP®
- Drive type: Operating tool, Push-in
- Nominal section: 1.5 mm²
- Solid conductor: 0.25… 1.5 mm² / 22… 16 AWG
- Solid conductor, push-in connection: 0.75… 1.5 mm² / 20… 16 AWG
- Semi-rigid conductor: 0.25… 1 mm² / 22… 18 AWG
- Flexible conductor: 0.25… 1.5 mm² / 22… 16 AWG
- Flexible conductor with ferrule with plastic insulation: 0.25… 0.75 mm² / 22… 20 AWG
- Flexible conductor with ferrule, without plastic insulation: 0.25… 0.75 mm² / 22… 20 AWG
- Flexible conductor with ferrule, push-in connection, from: 0.75mm² / 20 AWG
- Stripping Length: 9mm / 0.35inch
- Note (stripping length): see also packaging or instructions
- Poles number: 2
- Total number of connection points: 2
- Total number of potentials: 2
- Conductor entry direction for mating direction: 0 °

Geometric data
- Pin spacing: 4.4 mm / 0.173 inch
- Width: 10.4 mm / 0.409 inch
- Height: 11.7 mm / 0.461 inch
- Depth: 34.1 mm / 1.343 inch

Mechanical data
- Coding: B
- Coupling force of a plug connection: approx. 20 ... 70 N (depends on the number of poles)
- Retention force of a push-in connection: when locked:> 80 N
- Disconnection force of a plug connection: when unlocked: approx. 20 ... 70 N (depends on the number of poles)
- Number of insertion cycles: 200, without resistive load 100, with resistive load IN = 16 A, tested (1.5 mm² / AWG 16)
- Marking: 1 2
- Degree of protection: IP20
- Note on type of protection: IP40 when mated with strain relief housing
- Potential marking: 1 2

Plug connection
- Contact type (plug connector): Male connector / plug
- Connector connection type: for conductors
- Reverse polarity protection: Yes
- Locking of the plug connection: locking lever
- Locking lever: retrofittable

Material data
- Color: Grey
- Insulating material: Polyamide (PA66)
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Surface treated with copper or copper alloy
- Fire load: 0.056 MJ
- Weight: 2.5 g

Environmental conditions
- Processing temperature: -5… +40 ° C
- Continuous operating temperature: -35… +85 ° C
- Note on permanent service temperature: Insulating parts for temperatures = 105 ° C

Note on contact resistance: contact resistance approx. 1 mOhm socket / plug transition contact approx.0.25 mOhm
