Errebi code: 15039Producer code: 32.0079P0001Producer: STÄUBLI (Multi-Contact)

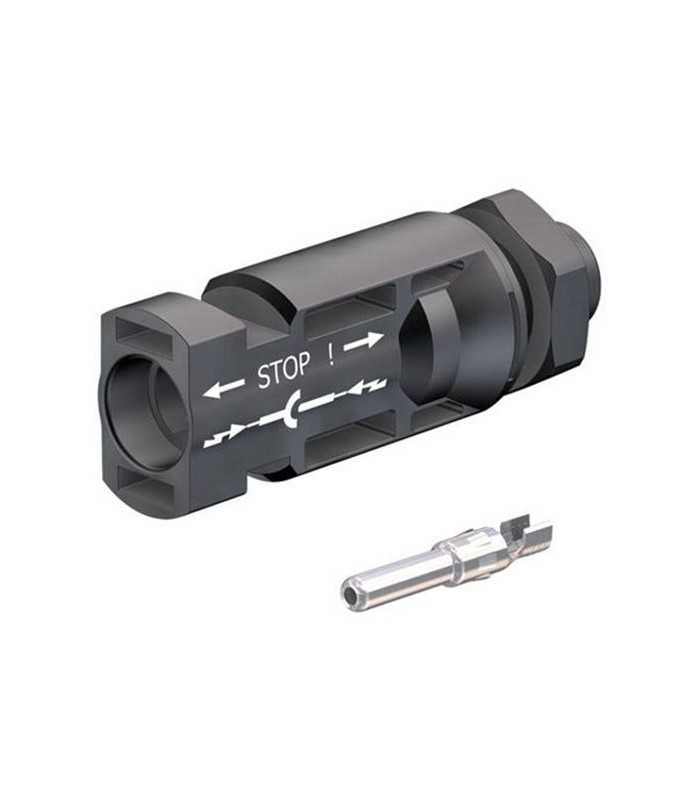

Connector MC4 male with terminal for panel
ErreBi code: 15040
Producer code: 32.0078P0001
Producer: STÄUBLI (Multi-Contact)
Read moreShow lessProducer code: 32.0078P0001
Producer: STÄUBLI (Multi-Contact)
€11.19
(tax excl.)
€13.65
(tax incl.)
Condition
New
Reference:
RBCTMC4PM46
Brand:
Add to wishlist
Series: MC4
Contact system: MULTILAM
Gender: Receptacle
Contact material: Copper, tin plated
Insulation material: PC/PA
Degree of protection, mated: IP66/IP68 (1 m, 1 h)
Degree of protection, unmated: IP2X
Voltage rating: 1kV
Rated Impulse Voltage: 16 kV
Current rating: 30A
Max. contact resistance of the connector: 0.25 mO
Connector Mounting: Panel
Contact Termination Type: Crimp
Cable section: 4-6 mmq (12-10 AWG)
Ambient temperature range: -40 °C...+85 °C
Upper limiting temperature: 105 °C
SVHC: No SVHC (16-Jun-2014)
Read moreShow less
Contact system: MULTILAM
Gender: Receptacle
Contact material: Copper, tin plated
Insulation material: PC/PA
Degree of protection, mated: IP66/IP68 (1 m, 1 h)
Degree of protection, unmated: IP2X
Voltage rating: 1kV
Rated Impulse Voltage: 16 kV
Current rating: 30A
Max. contact resistance of the connector: 0.25 mO
Connector Mounting: Panel
Contact Termination Type: Crimp
Cable section: 4-6 mmq (12-10 AWG)
Ambient temperature range: -40 °C...+85 °C
Upper limiting temperature: 105 °C
SVHC: No SVHC (16-Jun-2014)
RBCTMC4PM46
Data sheet
- Product type
- Connector
- Serie
- MC4
- Amperage
- 30A
- Material
- PA (Polyamide, Nylon)
- Color
- Black
- Operating temperature
- -40°C to +90°C
- Dimensions
- 49,60x18,80x18,80 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 1kV
- Contact material
- Copper
- Mounting
- On panel
- Wire range
- 4.00 - 6.00 mmq
- Kind
- Male
- Number of poles
- 1
- Number of rows
- 1
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 1
- Unit Type
- piece
