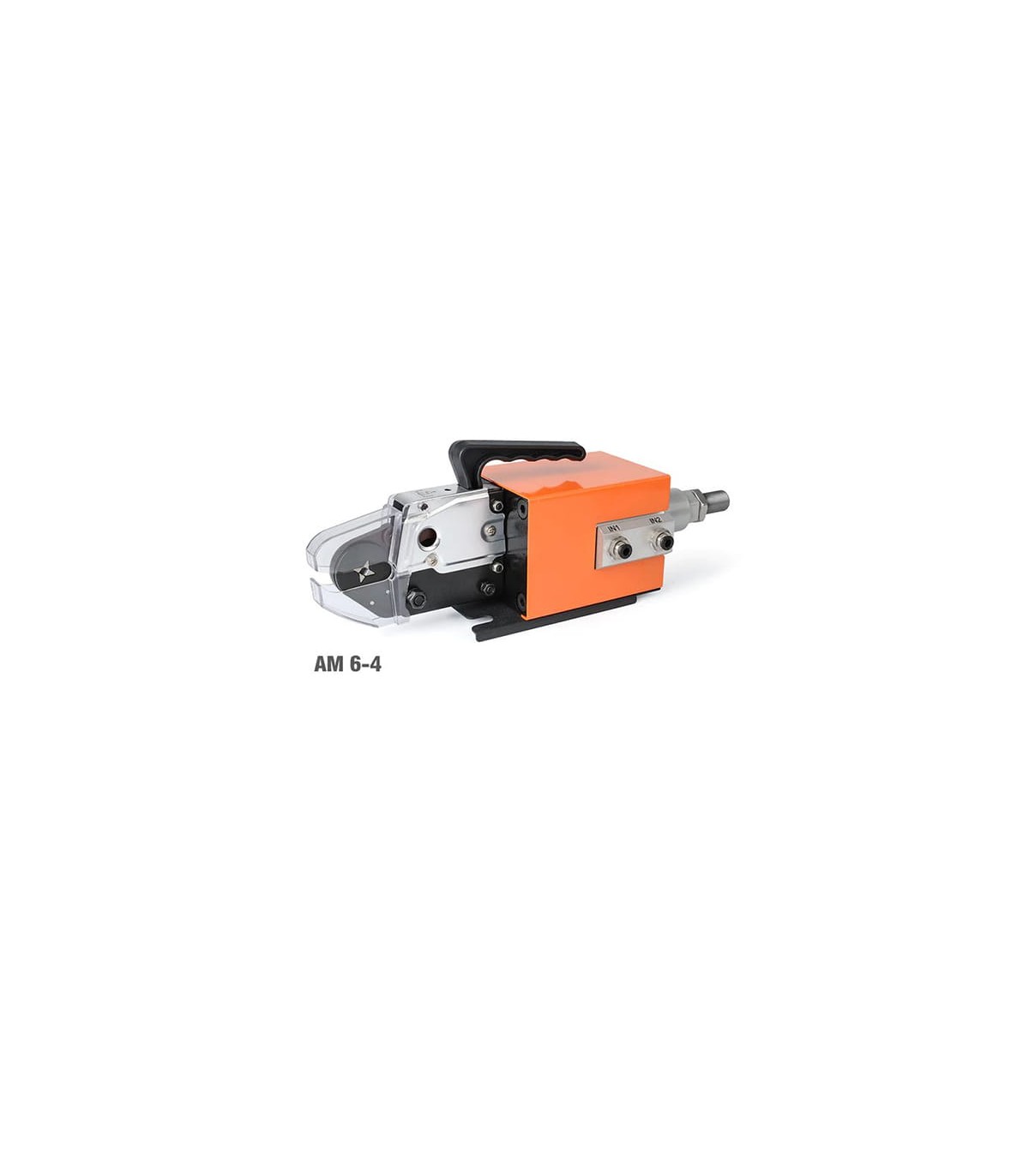

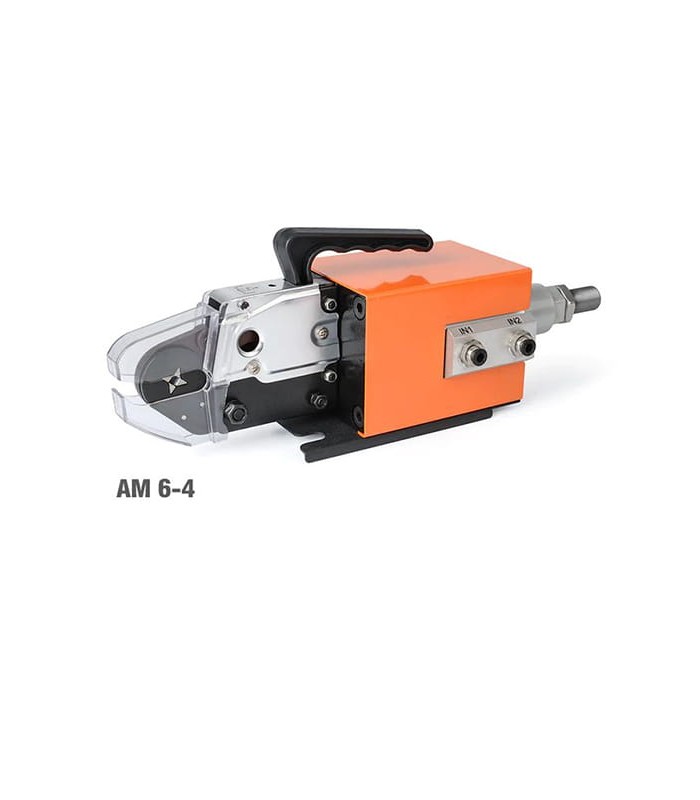

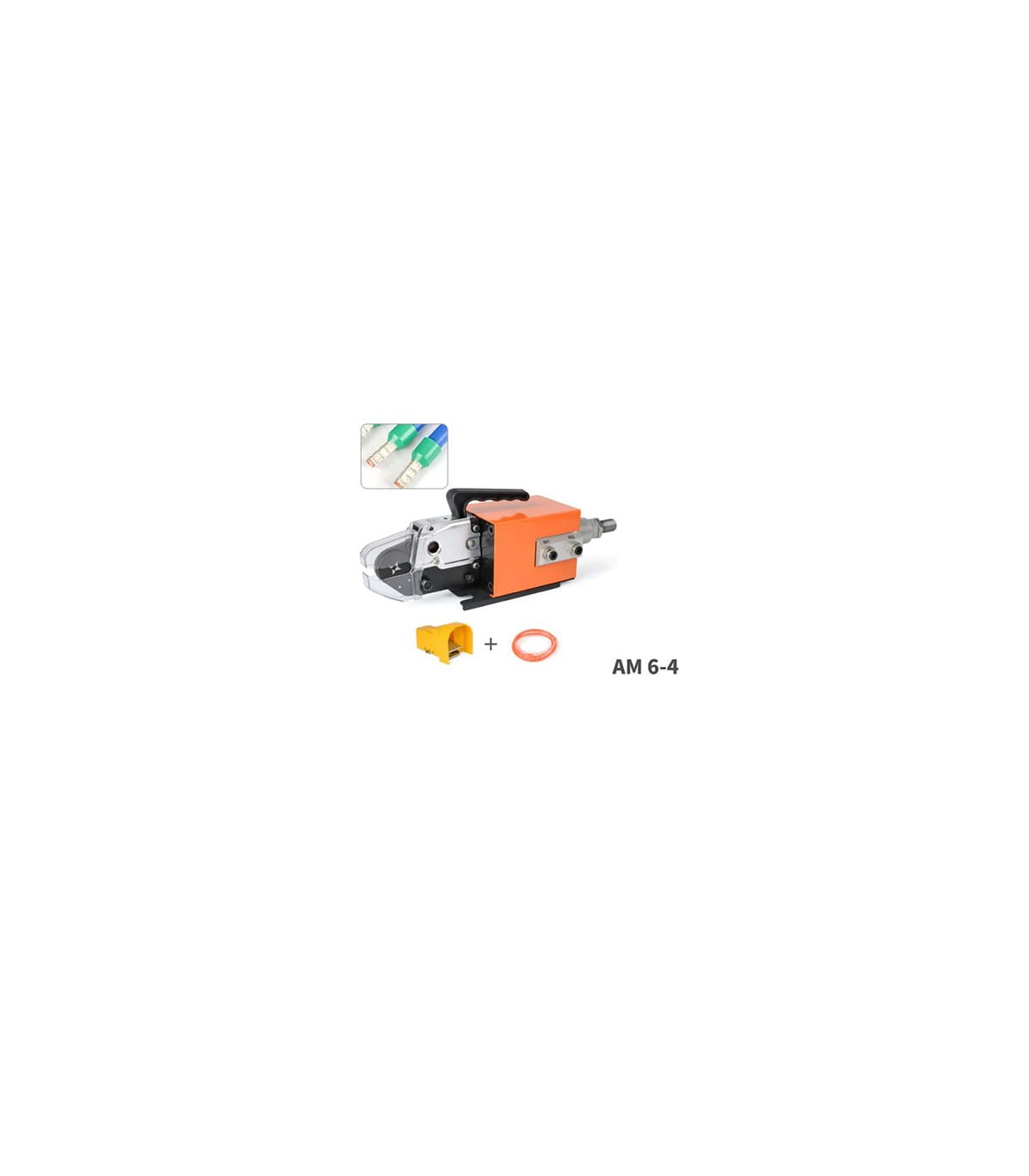

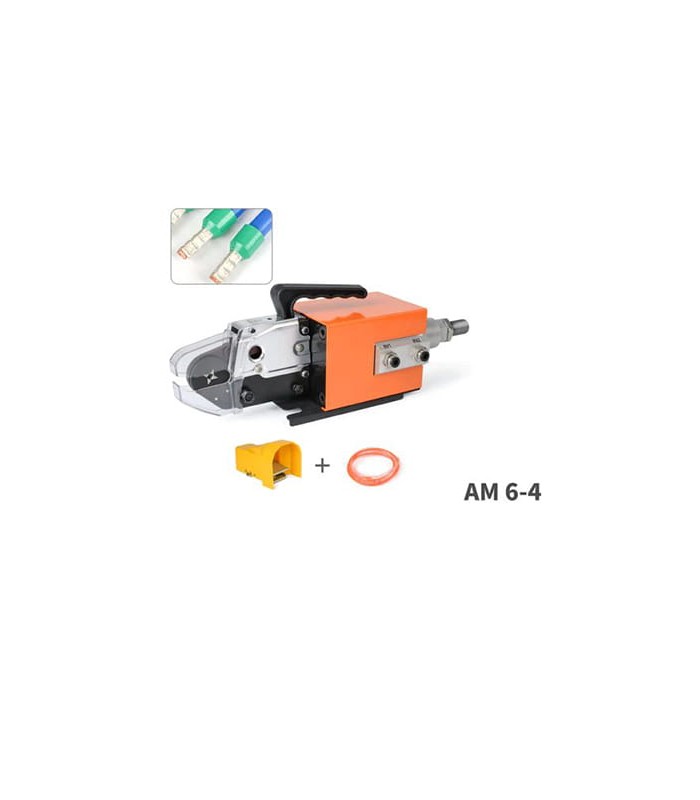

Pneumatic crimping tool for square crimping of cable end sleeves (0.25–6 mmq)

The RBAM6-4 is a pneumatic crimping tool designed for fast, precise, and consistent crimping of terminals. Thanks to its square-shaped mechanism and compressed air drive, this machine significantly reduces fatigue compared to manual tools and is particularly suitable for mass production or intensive professional use.

Main Features

1) Square crimping: ensures uniform compression on all sides, ensuring optimal electrical conductivity and mechanical strength.

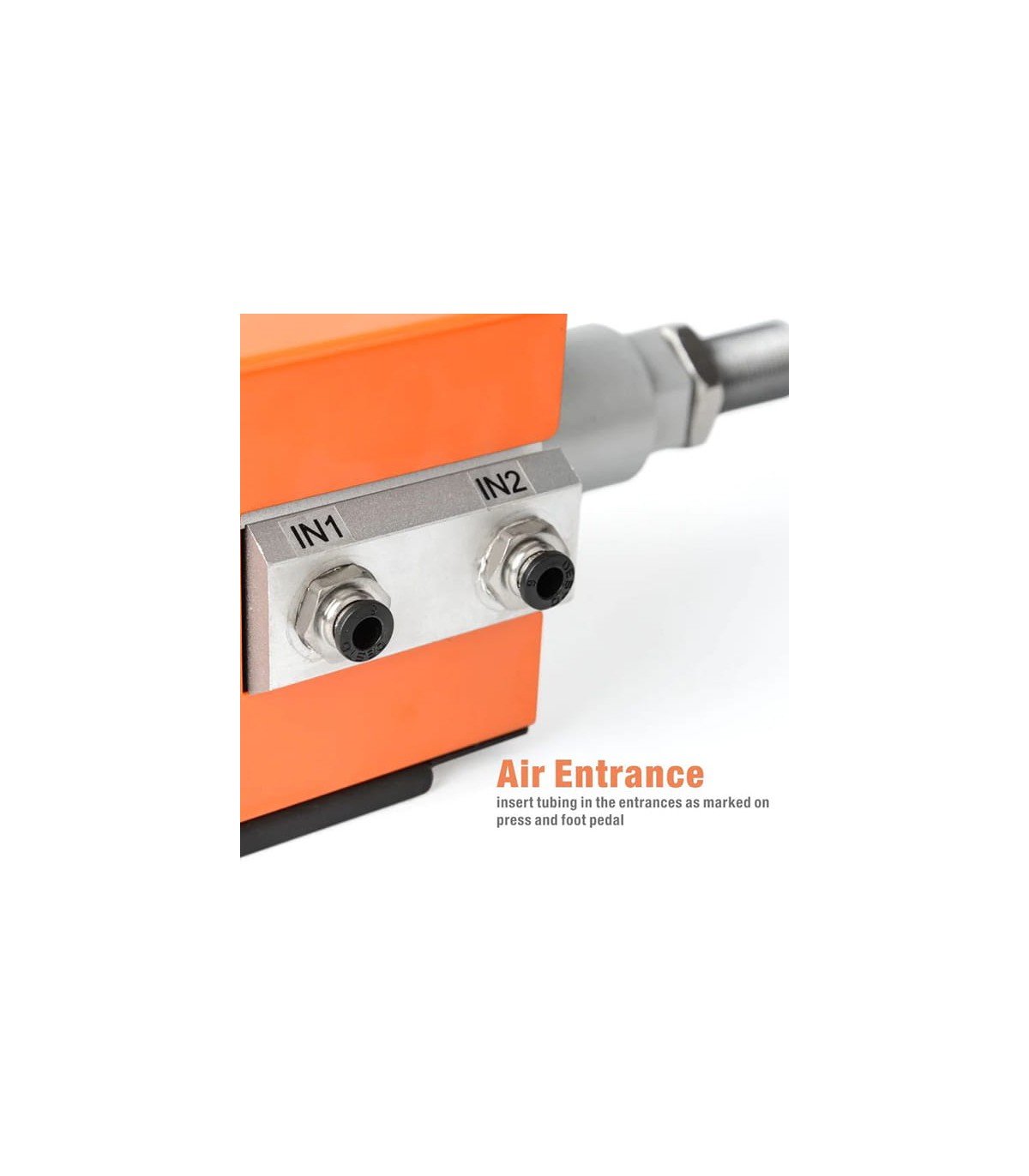

2) Pneumatic operation: requires a compressed air connection (air pressure 0.4–1 MPa), eliminating operator fatigue.
3) High productivity: allows for faster crimping operations, making it ideal for mass production of wiring harnesses.
4) Safety and precision: equipped with a safety release mechanism and ratchet system to ensure consistent results every time.

Advantages of the RBAM6-4

1) High efficiency: dramatically reduces processing times compared to manual pliers.
2) Professional connections: The square crimp ensures a stable and long-lasting connection.
3) Ergonomics: No manual effort required, ideal for continuous use.
4) Versatility: Compatible with most standard ferrule lugs.

Most common uses

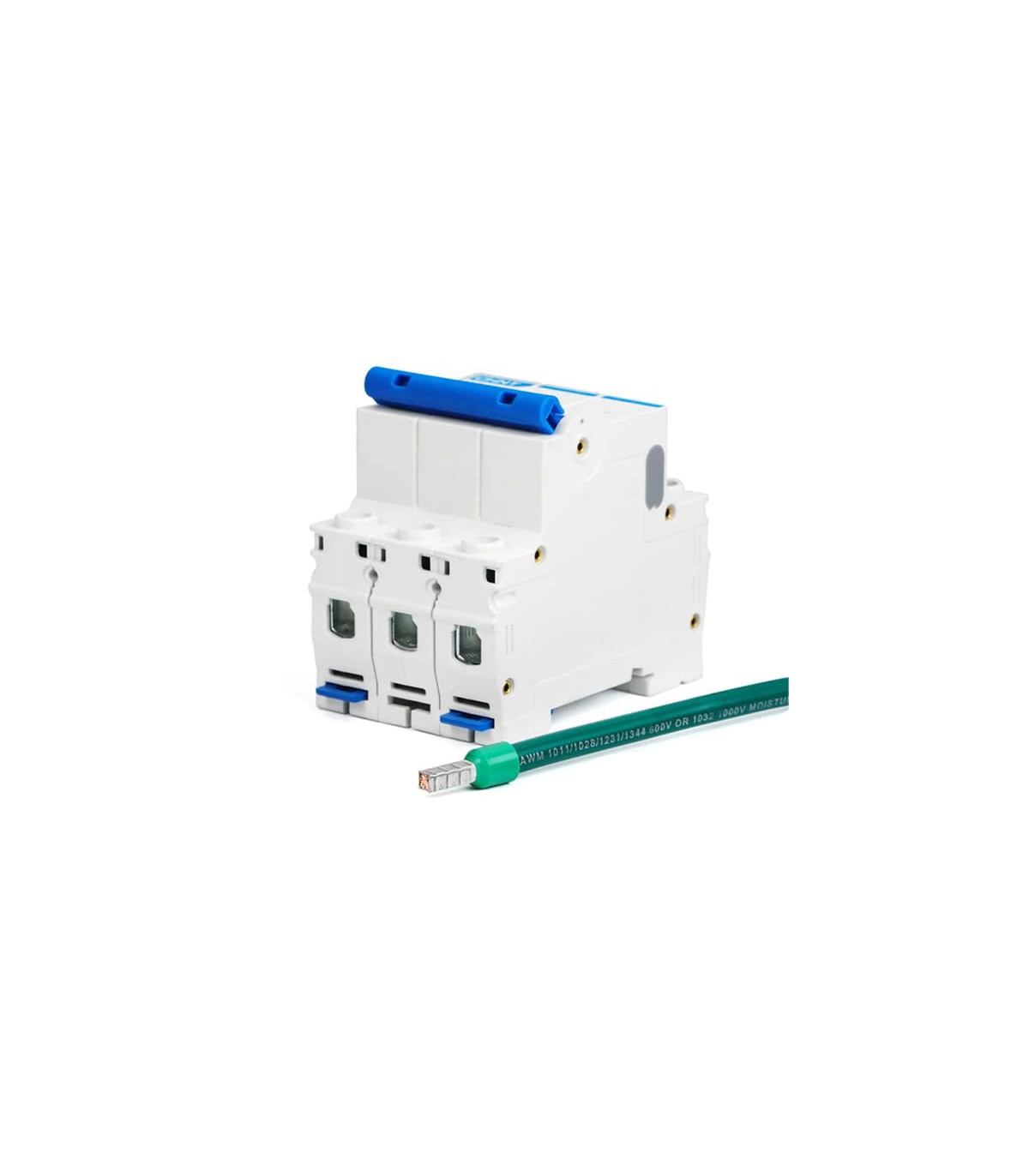

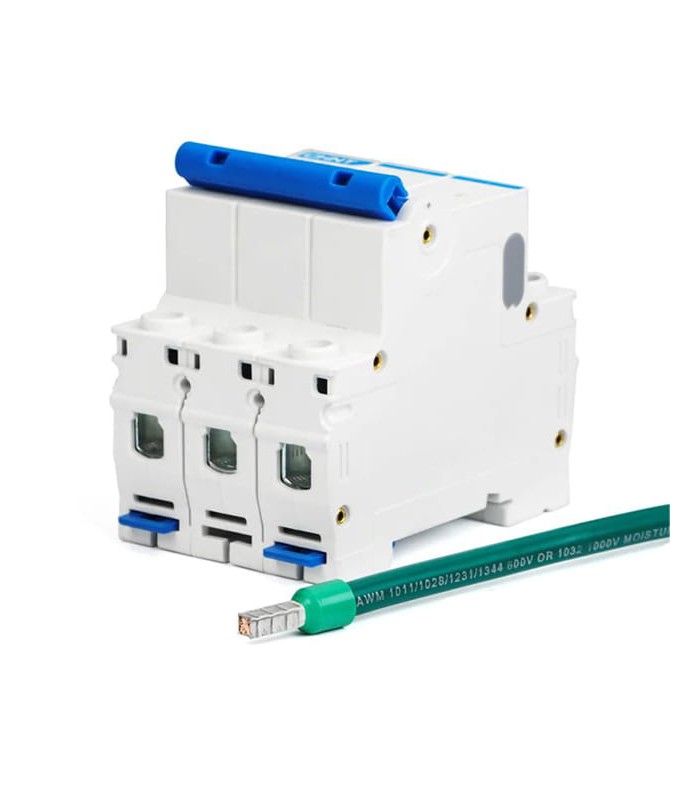

1) Crimping ferrule lugs for electrical panels and distribution systems.
2) Industrial production of wiring harnesses for automotive, electronics, and machine tools.
3) Installations in the renewable energy sector (photovoltaic, batteries, inverters).
4) Wiring harnesses for household appliances, electrical equipment, and industrial systems.
5) Mass production on assembly lines.

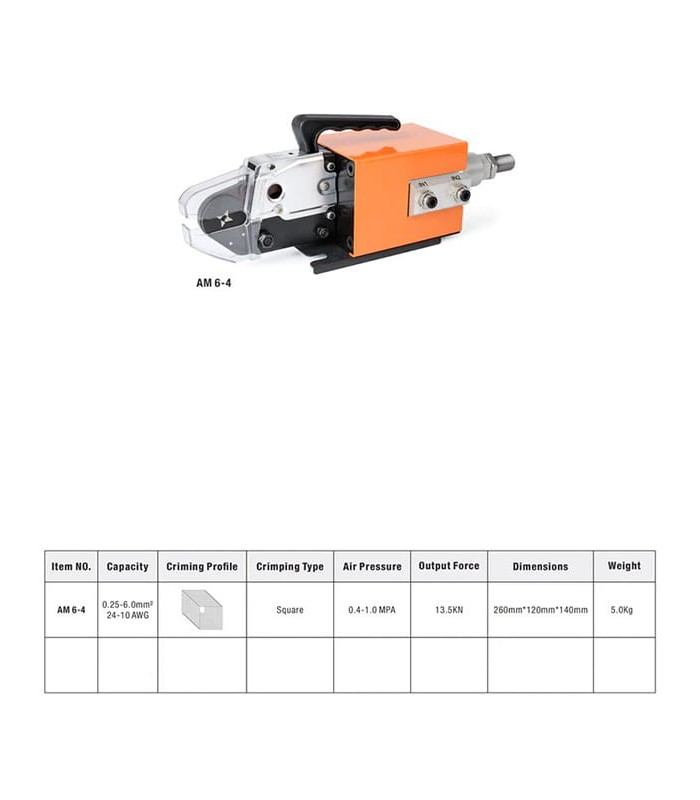

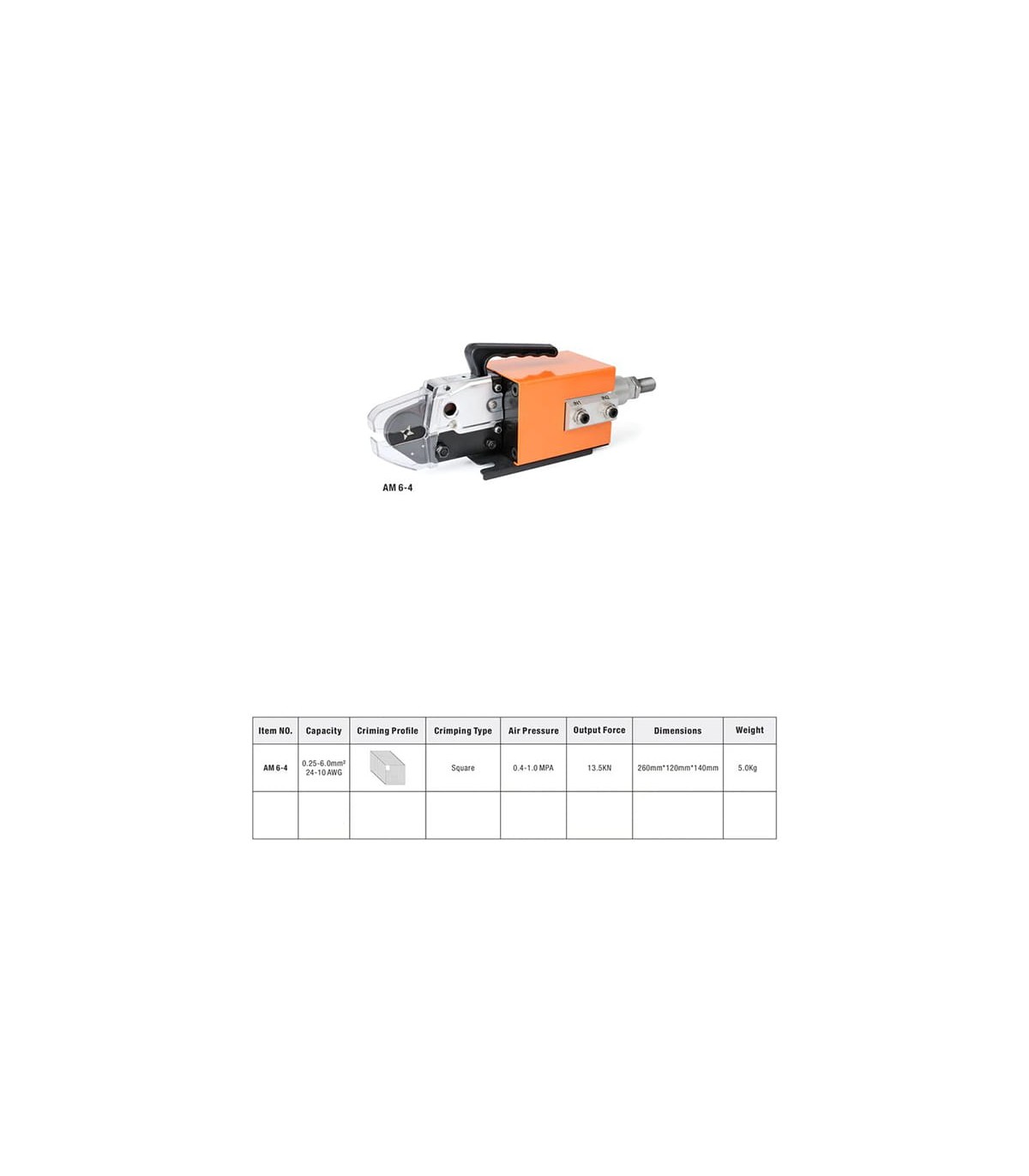

Technical Specifications

Crimping Cross-Section (AWG): 24 - 10 AWG
Crimping Cross-Section (mm2): 0.25 - 6.0 mmq
Crimping Force: 13.5 kN
Mechanism: Pneumatic Ratchet with Safety Release
Crimping Type: Square
Working Pressure: 0.4 - 1.0 MPa
Power Source: Compressed Air
Includes Foot Pedal and Air Hose
Material: High-strength steel, ergonomic rubber handles
Weight: 6 kg
Dimensions: 260 x 120 x 140 mm
