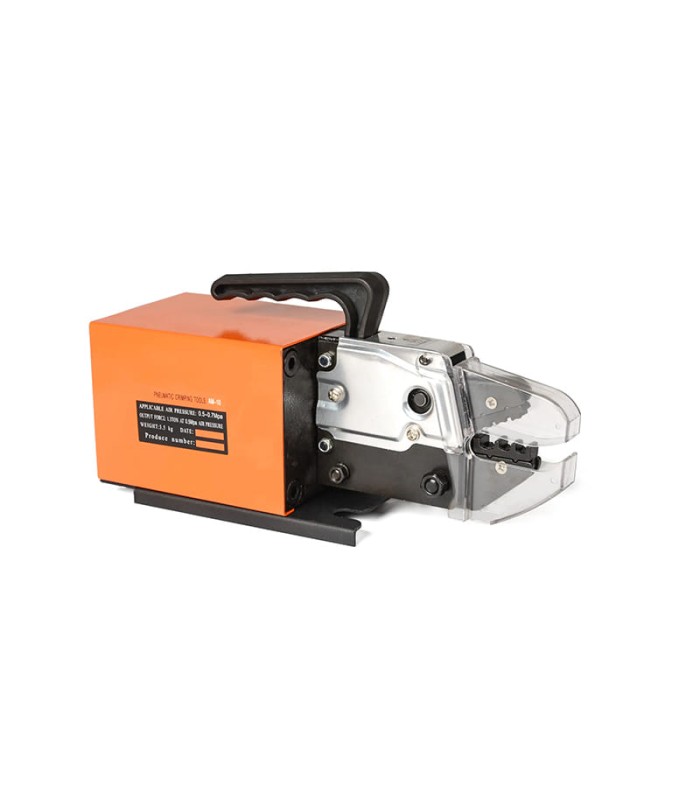

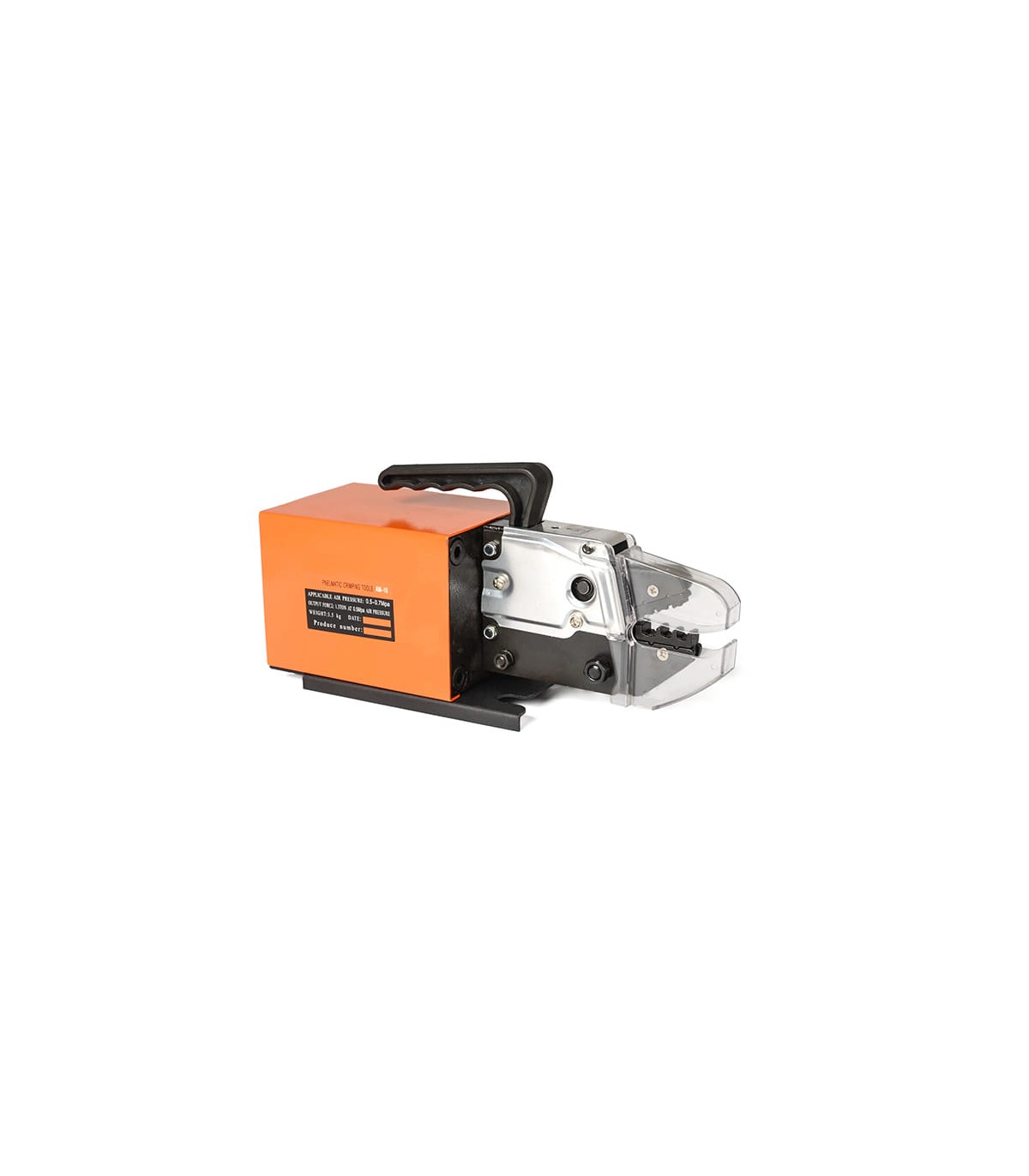

Pneumatic crimping machine for wire ferrules and non-insulated terminals (0.5 - 16 mmq)

The RBAM-10 is a professional pneumatic crimping machine designed for fast, precise and uniform crimping of ferrules and non-insulated terminals.

Equipped with interchangeable crimping dies and an automatic release mechanism, the RBAM-10 ensures a solid and repeatable crimp.

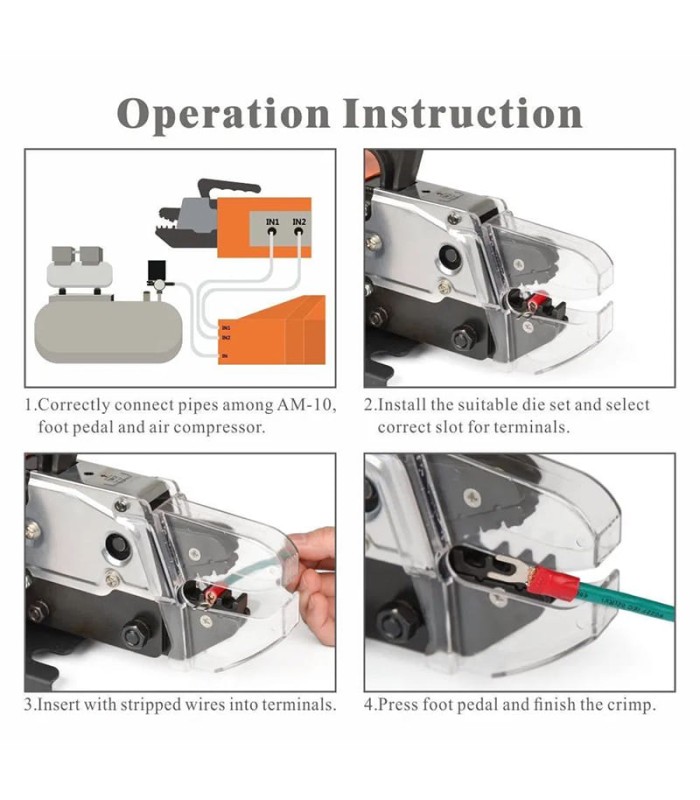

Operation

The RBAM-10 uses a pneumatic crimping system with controlled pressure, powered by a compressed air source (0.5 - 0.7 MPa).

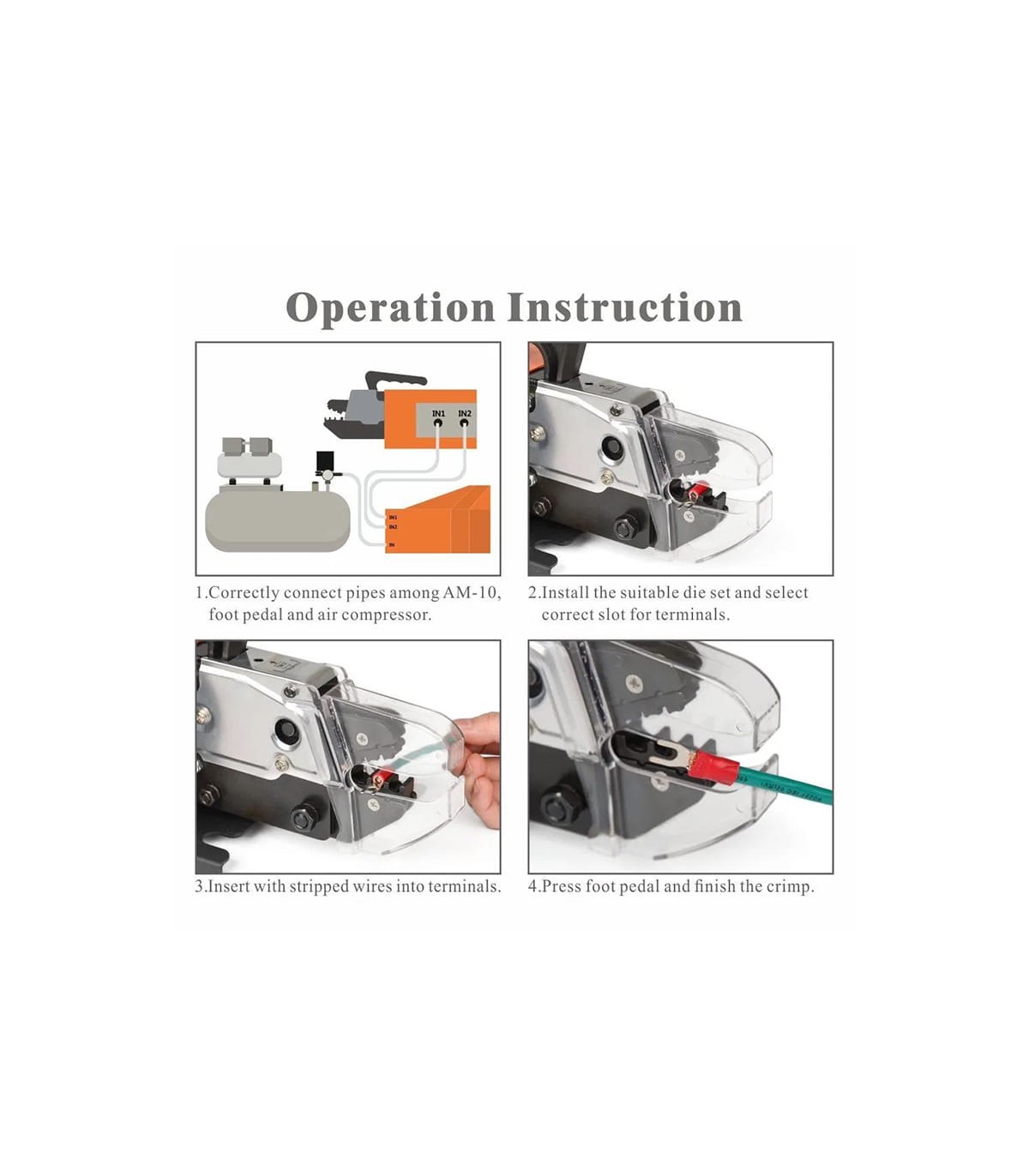

The crimping cycle is activated via a button or foot pedal, ensuring a uniform closure without manual effort.

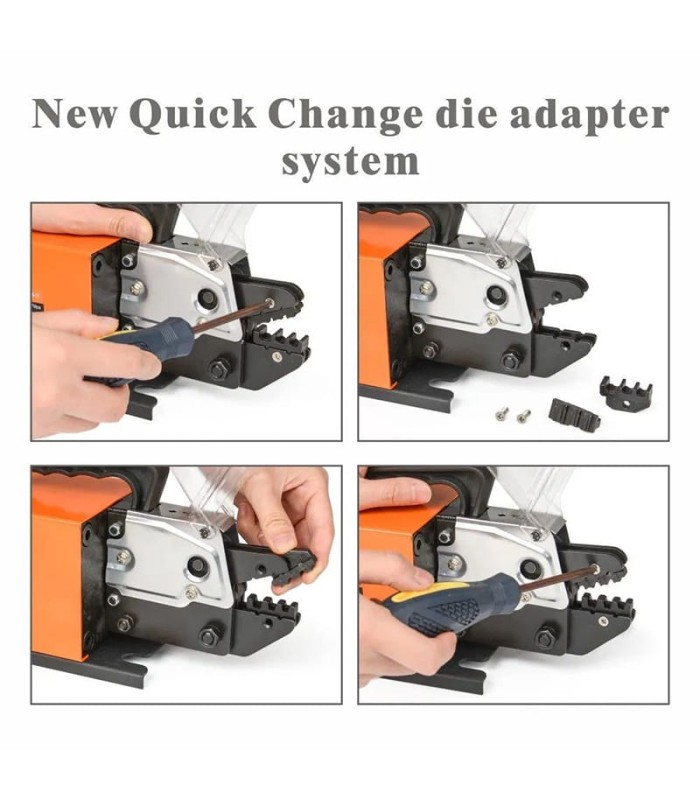

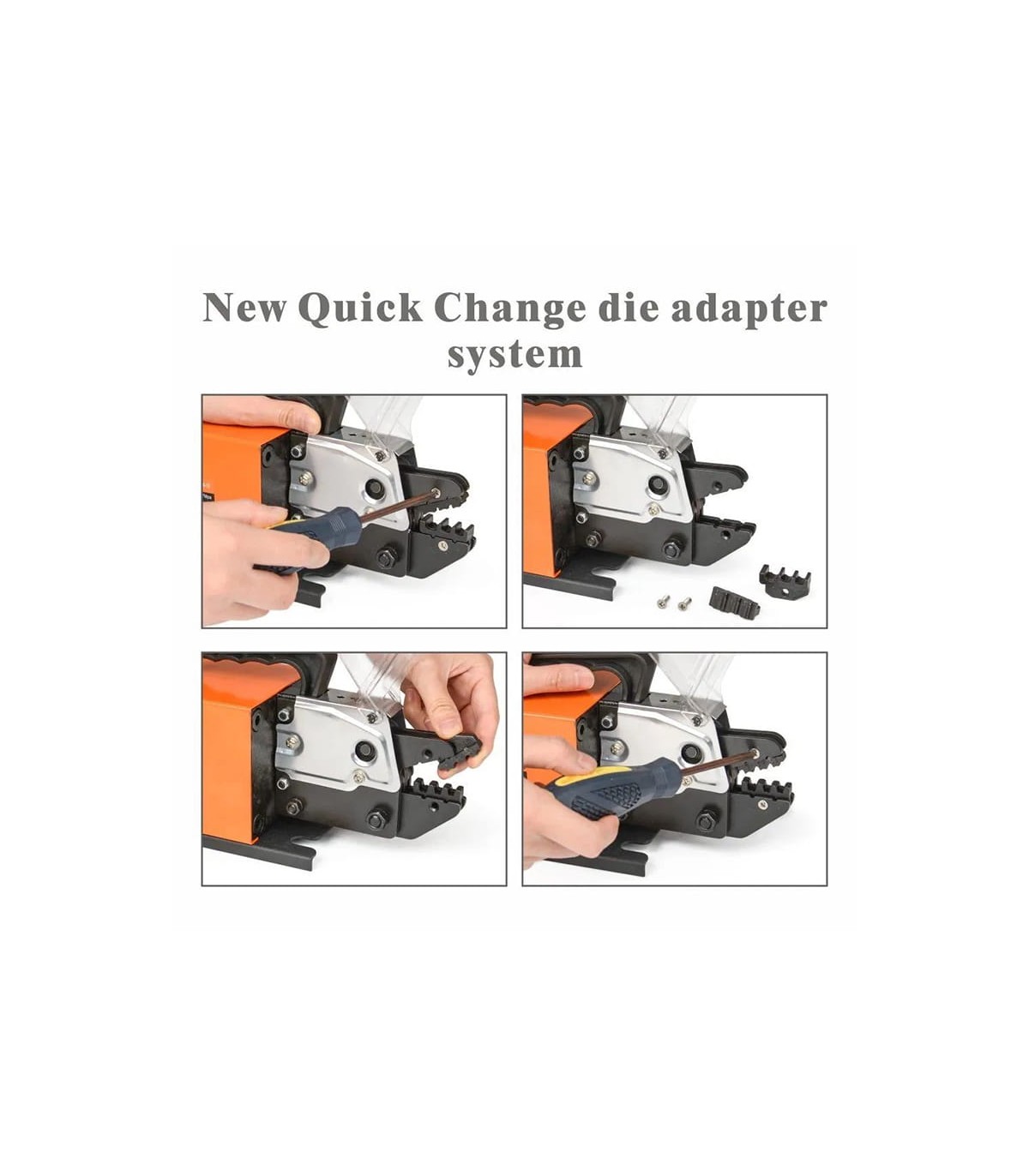

The interchangeable dies allow quick adjustment for different ferrule types, providing versatility and precision even for small production batches.

Ideal applications:

1) Assembly of electrical panels and industrial systems.

2) Civil and commercial wiring.

3) Photovoltaic systems and renewable energy applications.

4) Production and maintenance of automotive and special vehicle harnesses.

5) Production departments or assembly lines for professional cabling.

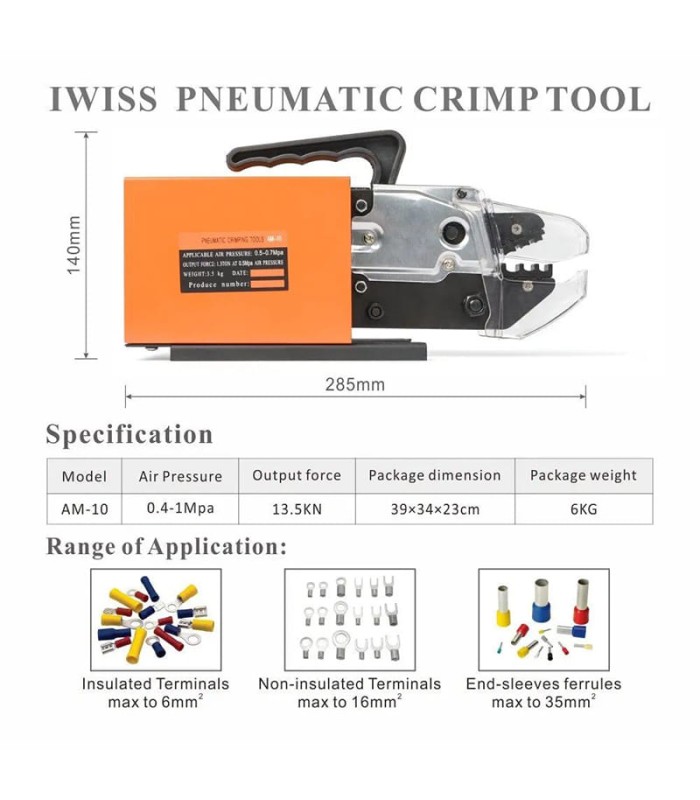

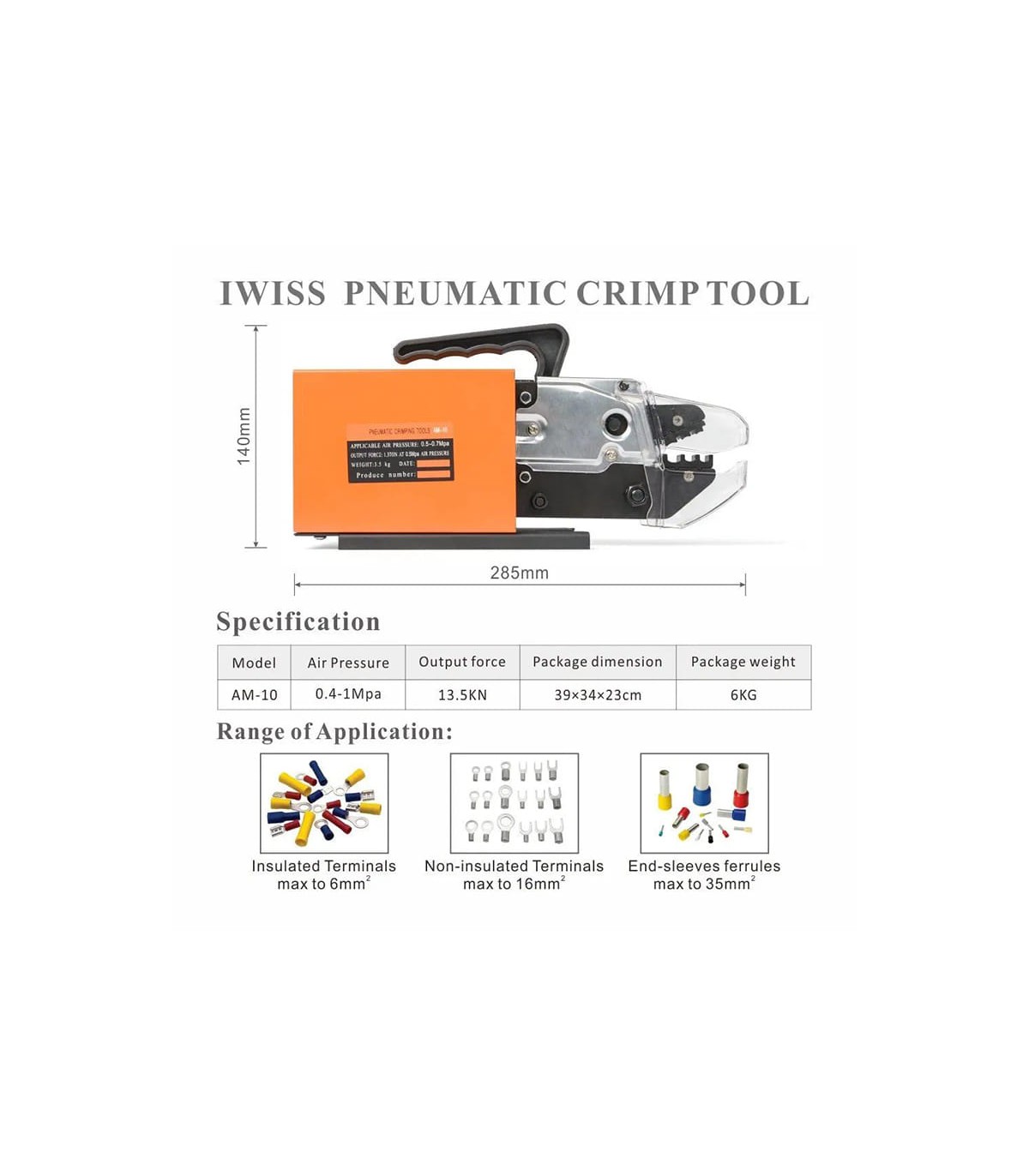

Technical specifications

Model: RBAM-10

Crimp type: pneumatic

Cable section (mm²): 0.5 - 16 mm²

Cable section (AWG): 20 - 6 AWG

Crimping force: 13.5 kN

Power supply: compressed air

Air pressure: 0.5 – 1.0 MPa

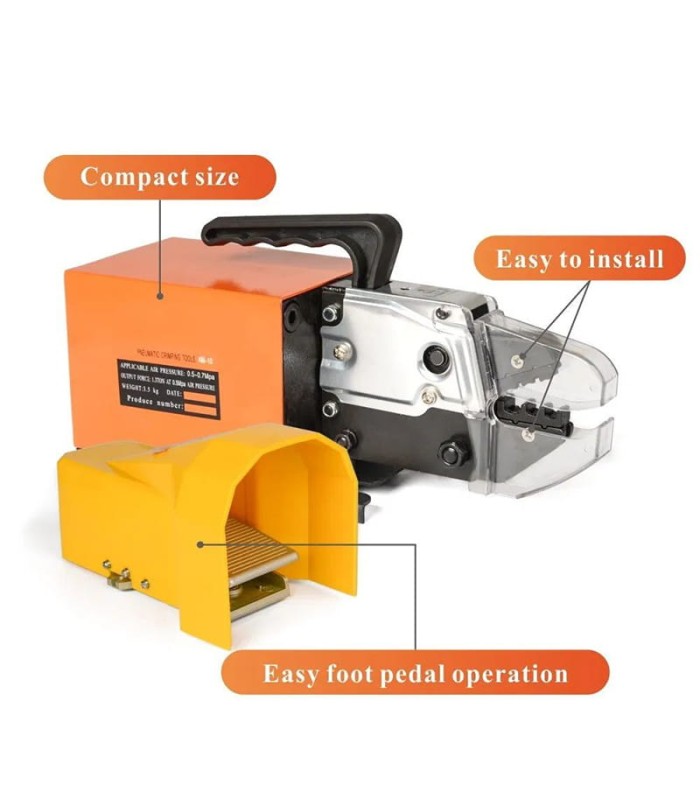

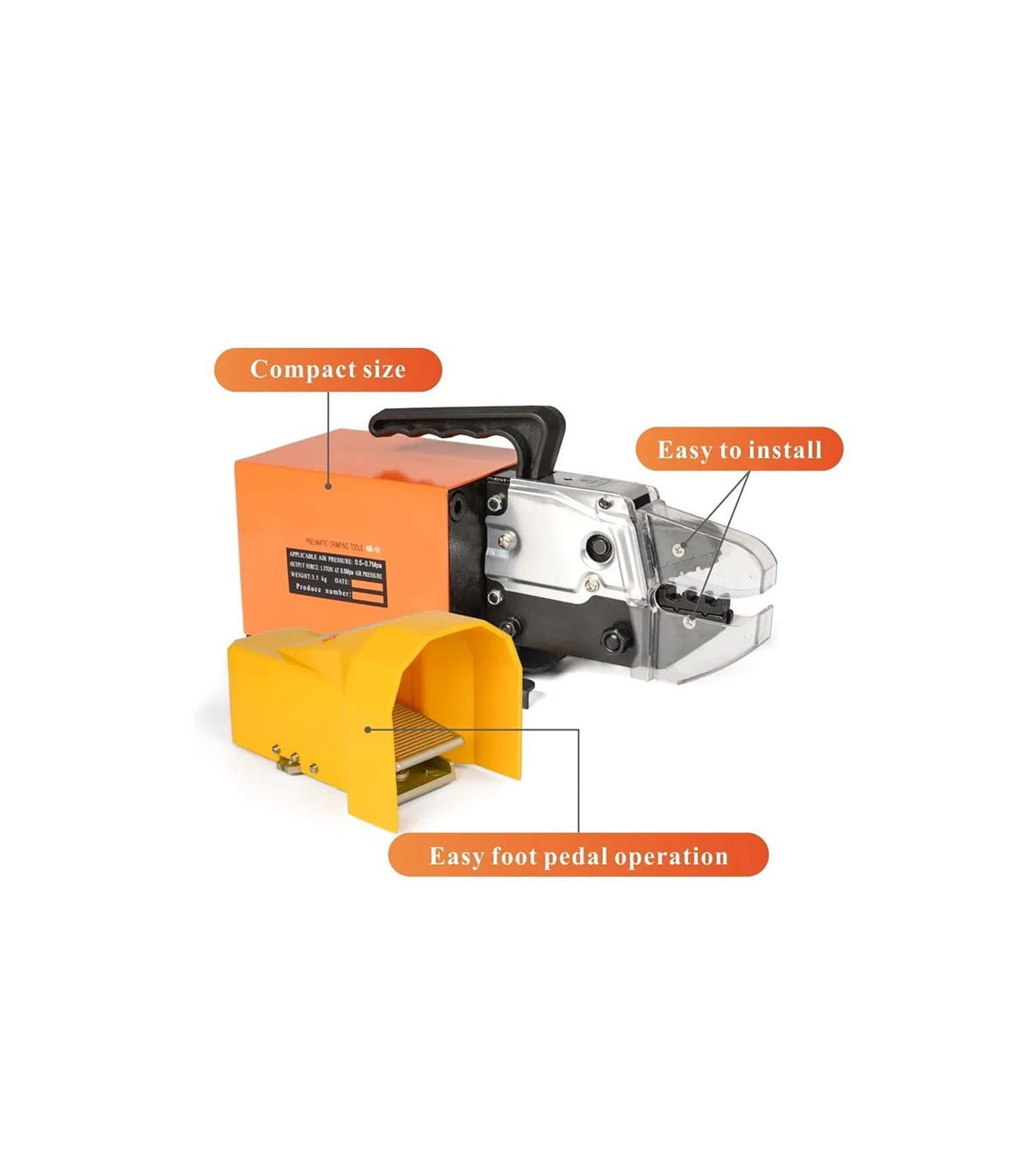

Activation: foot pedal or button

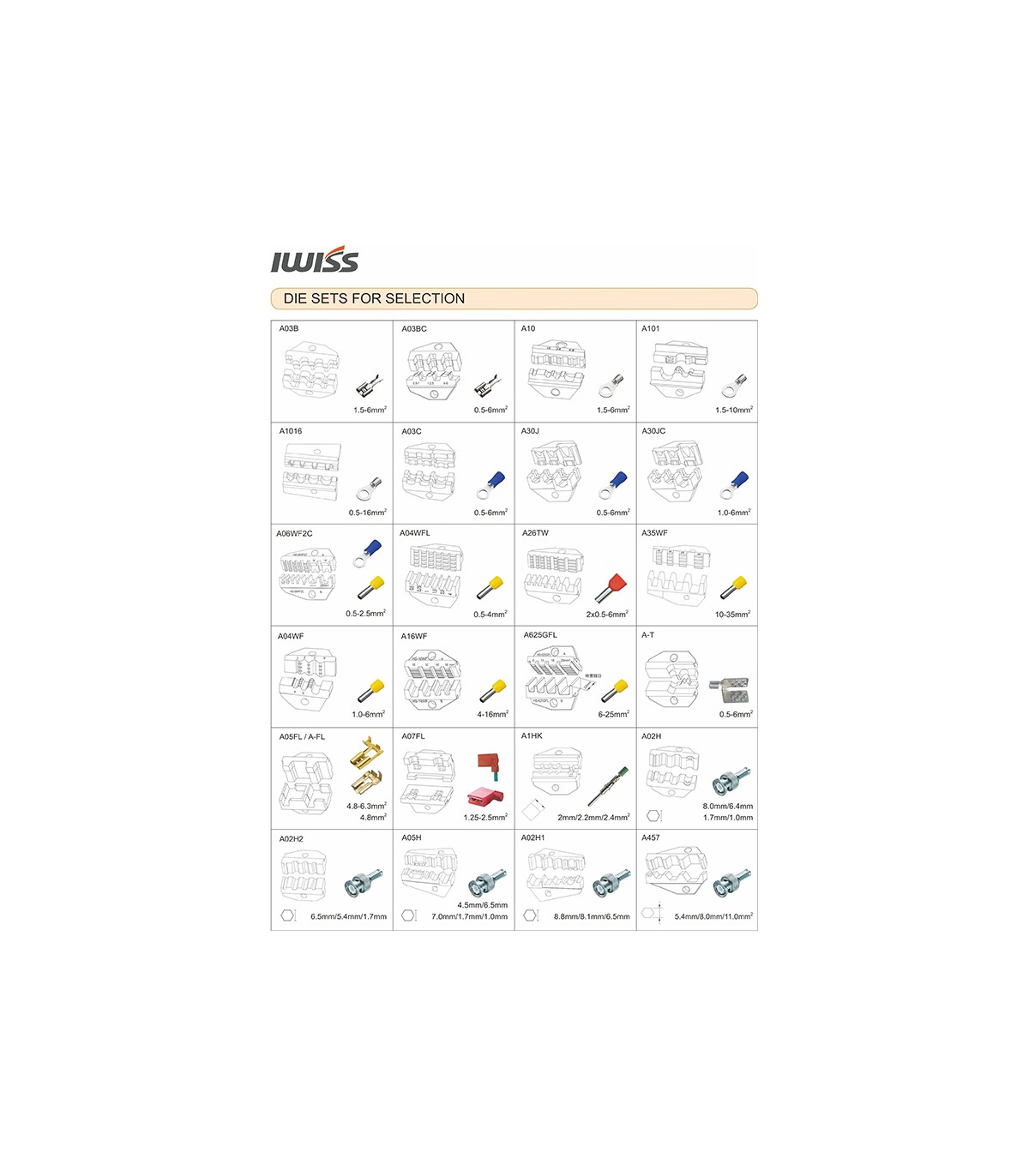

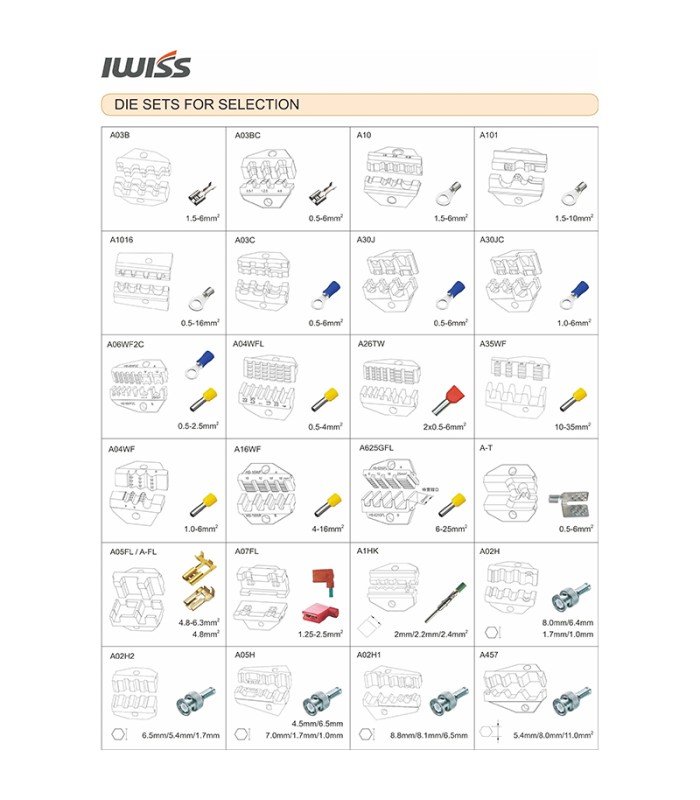

Dies: interchangeable

Material: steel

Weight: 6 kg

Dimensions: 260 × 120 × 140 mm
