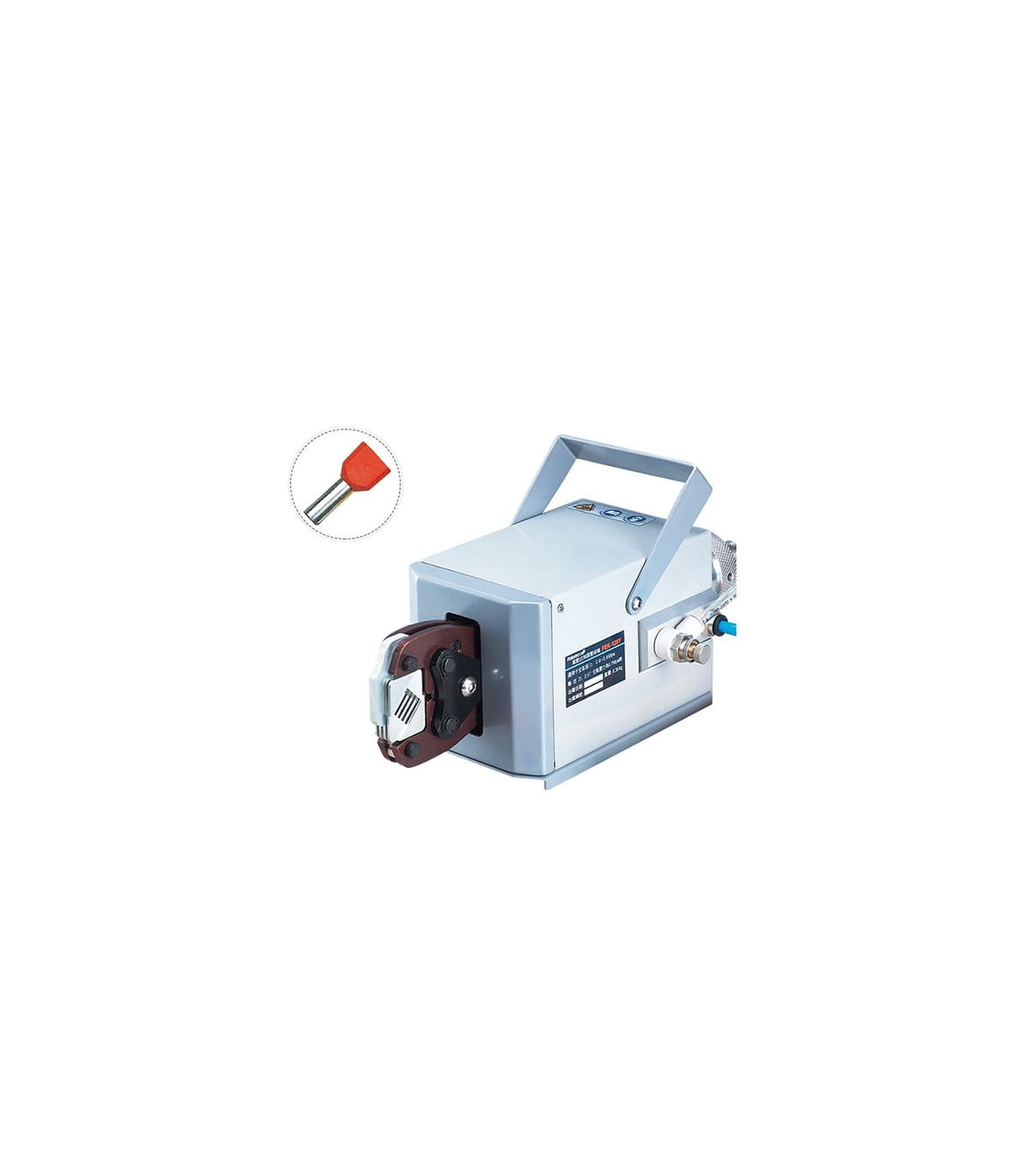

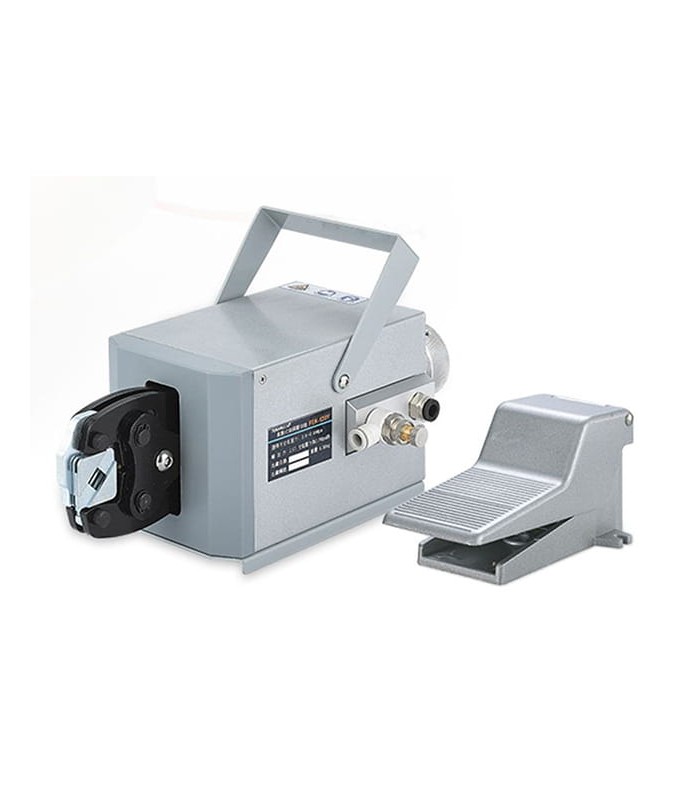

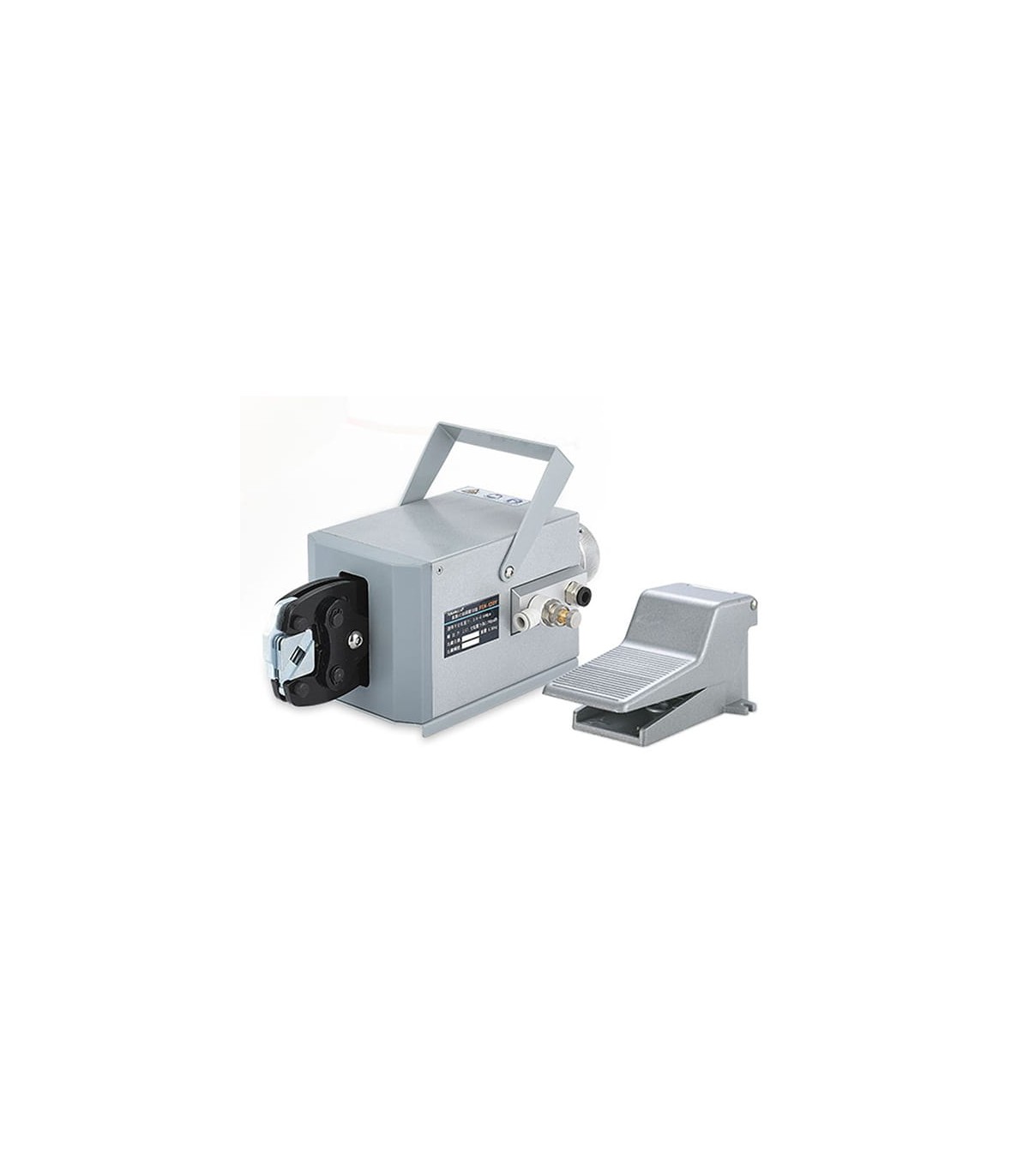

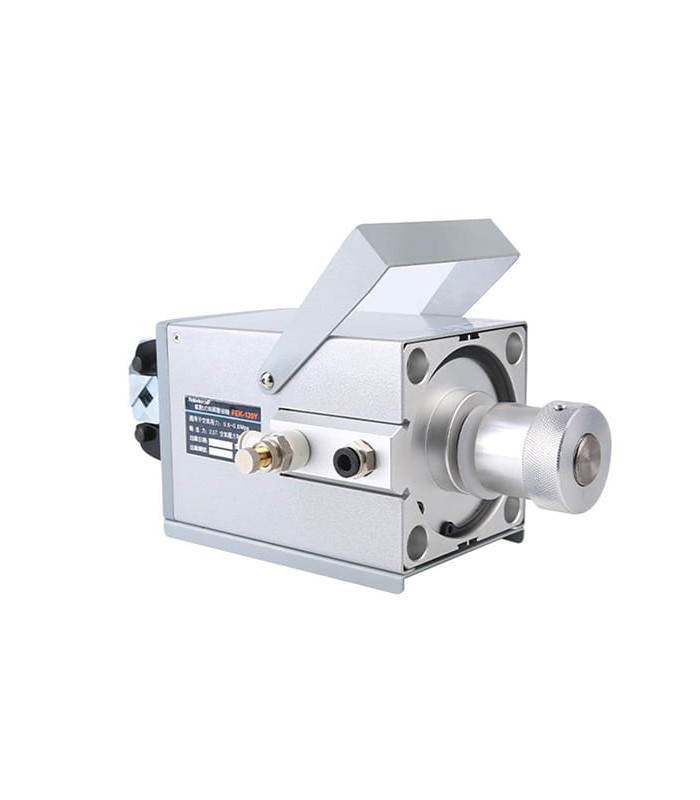

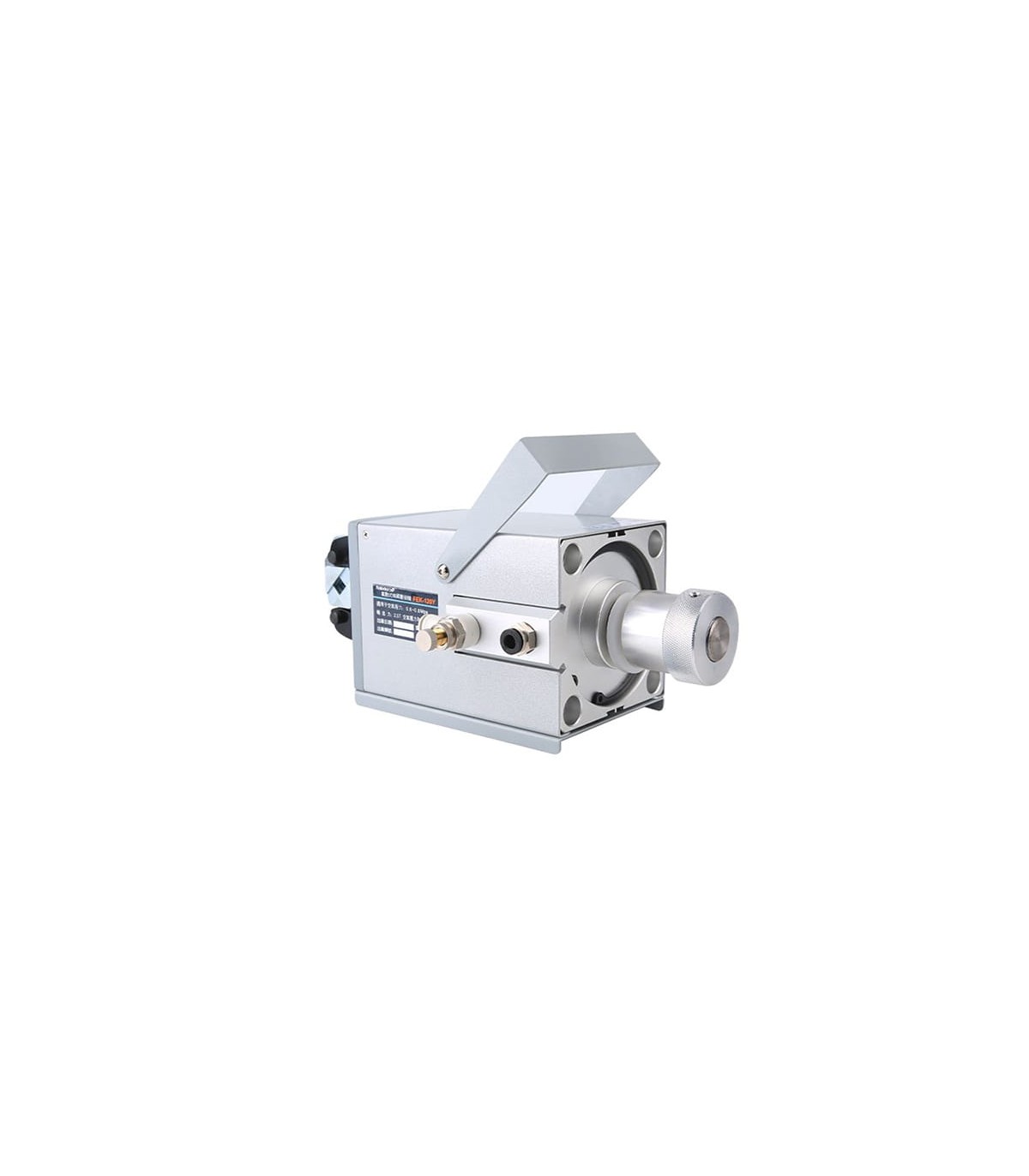

Pneumatic square crimping tool for ferrules section. 0.25 - 120 mmq
Errebi code: 64450
Producer code: RBFEK120Y
Producer: ErreBi Group
Read moreShow lessProducer code: RBFEK120Y
Producer: ErreBi Group
€2,229.23
(tax excl.)
€2,719.66
(tax incl.)
Condition
New
Reference:
RBFEK120Y
Brand:
Add to wishlist
Model: RBFEK120Y
Section of the conductor to be crimped:
- EN 24-4: 0.25 - 25 mmq
- EN 2-3/0: 35 - 85 mmq
- EN 4/0:-30MCM: 85 - 120 mmq
Air pressure: 0.6 - 0.8MPa
Output Force: 2.5T
Weight: 6.5kg
Size: 275*128*165mm
Read moreShow less
Section of the conductor to be crimped:
- EN 24-4: 0.25 - 25 mmq
- EN 2-3/0: 35 - 85 mmq
- EN 4/0:-30MCM: 85 - 120 mmq
Air pressure: 0.6 - 0.8MPa
Output Force: 2.5T
Weight: 6.5kg
Size: 275*128*165mm
RBFEK120Y
Data sheet
- Product type
- Square Crimping Tool
- Dimensions
- 275x128x165 (L x W x H)
- Cable section mmq
- 0.25 mmq - 120.00 mmq
- Minimum order quantity
- 1
- Unit Type
- piece
- Air pressure
- 0.6 - 0.8 MPa
- Output force
- 2.5 T
