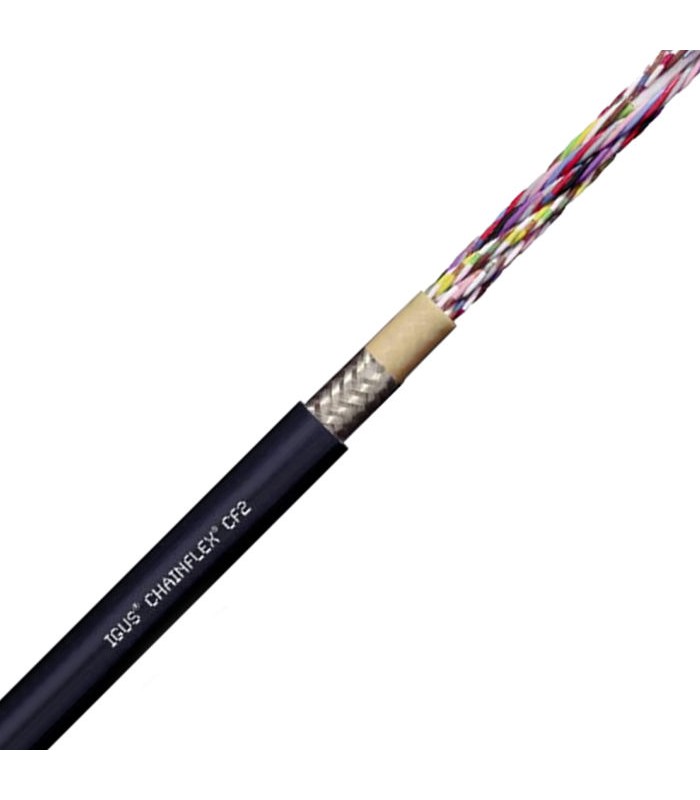

Shielded Cable in PUR 8x0,25 CF2 300/500V
ErreBi code: 14443
Producer code: CF2.02.08
Producer: IGUS
Price for meter
Read moreShow lessProducer code: CF2.02.08
Producer: IGUS
Price for meter
€22.38
(tax excl.)
€27.30
Condition
New
Reference:
RBCVS8X0.25PUR
Brand:
Add to wishlist
Conductor: Stranded bare copper fine wire, running with high bending strength (following EN 60228).
Insulation: Mix inPPad high mechanical properties.
Stranding: cores stranded in a layer, to
SWB.
Identification: Coloring conductors according to DIN 47100
Coating: PVC base compound having a low coefficient of friction, suitable
intermediate for use in the energy chain.
Shielding: Shielding tinned copper wires extremely durable
Integral to bending. Cover about 70% linear, about 90% optical.
Cover: mixture on the basis of PUR with a low coefficient of friction, particularly flexible, suitable for use in cable carrier (Complies
to DIN VDE 0282 Part 10).
Color: anthracite (similar to RAL 7016)
Temperatures / Rays in flexing: -20 ° C to +80 ° C, minimum bending radius 5 xd
Temperatures / Rays in fixed installation: -40 ° C to +80 ° C, minimum bending radius 4 xd
v max. Self-supporting, long runs: 10 m / s, 5 m / s
to max .: 80 m / s2
Stroke length: Freely suspended and gliding up to 100 m, Class 3
UV resistance: High
Rated voltage: 300/500 V (following DIN VDE 0245).
Test voltage: 2000 V (DIN VDE 0281-2)
