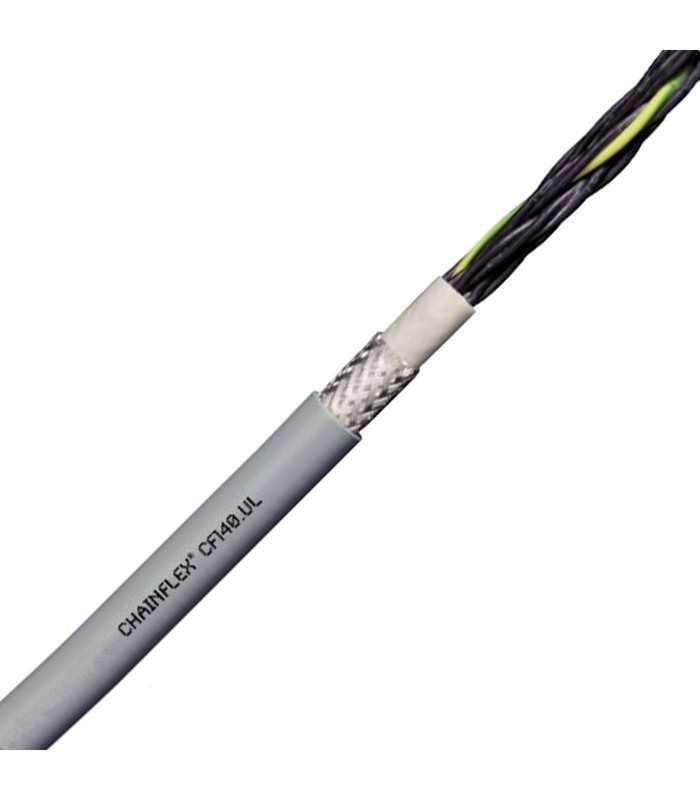

Shielded Cable in PVC 5G1 CF140.UL 300/500V

ErreBi code: 14445
Producer code: CF140.10.05.UL
Producer: IGUS
Price for meter
Read more
€5.76 (tax excl.)
€7.03

Discounts for quantities

Quantity Unit price You Save
11 €6.63 €4.41
26 €6.22 €20.88
51 €4.92 €107.52
101 €4.42 €263.60
251 €3.91 €781.20
501 €3.51 €1,760.31
Product available for orders
Condition
New product
Reference:
RBCVS5G1PVC
Brand:
Description
Conductor: Stranded conductor in especially bending-resistant version consisting of bare copper wires (following EN 60228).
Core insulation: Mechanically high-quality PVC mixture (following DIN VDE 0207 Part 4).
Core stranding: cores stranded in a layer with short pitch length.
Core identification Cores: cores black with white numerals, one core green-yellow
Inner jacket: PVC mixture adapted to suit the requirements in energy chains®.
Overall shield: Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.
Outer jacket: Low-adhesion, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN VDE 0282 Part 10).
Colour: Anthracite grey (similar to RAL 7016)
Bending radius: moved minimum 5 x d - fixed minimum 4 x d
Temperature: moved -20 °C to +80 °C - fixed -40 °C to +80 °C
v max. unsupported/gliding: 10 m/s, 5 m/s
a max.: 80 m/s2
Travel distance: Freely suspended travel distances and up to 100 m for gliding applications, Class 4
UV-resistant:High
Nominal voltage: 300/500 V (following DIN VDE 0245).
Testing voltage: 2000 V (following DIN VDE 0281-2).
Read more
Product Details
RBCVS5G1PVC
