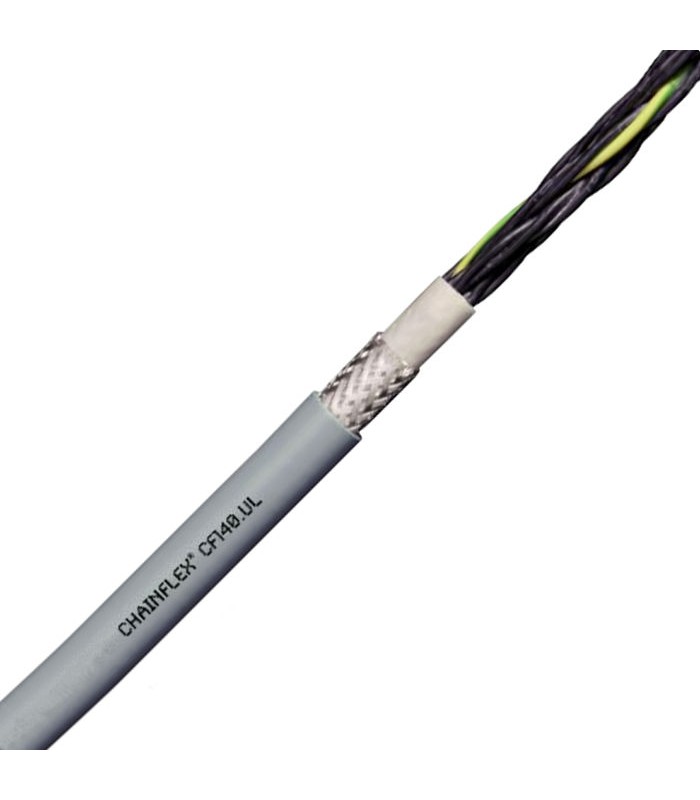

Conductor: Stranded conductor in especially bending-resistant version consisting of bare copper wires (following EN 60228).
Core insulation: Mechanically high-quality PVC mixture (following DIN VDE 0207 Part 4).
Core stranding: cores stranded in a layer with short pitch length.
Core identification Cores: cores black with white numerals, one core green-yellow
Inner jacket: PVC mixture adapted to suit the requirements in energy chains®.
Overall shield: Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.
Outer jacket: Low-adhesion, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN VDE 0282 Part 10).
Colour: Anthracite grey (similar to RAL 7016)
Bending radius: moved minimum 5 x d - fixed minimum 4 x d
Temperature: moved -20 °C to +80 °C - fixed -40 °C to +80 °C
v max. unsupported/gliding: 10 m/s, 5 m/s
a max.: 80 m/s2
Travel distance: Freely suspended travel distances and up to 100 m for gliding applications, Class 4
Nominal voltage: 300/500 V (following DIN VDE 0245).
Testing voltage: 2000 V (following DIN VDE 0281-2).
